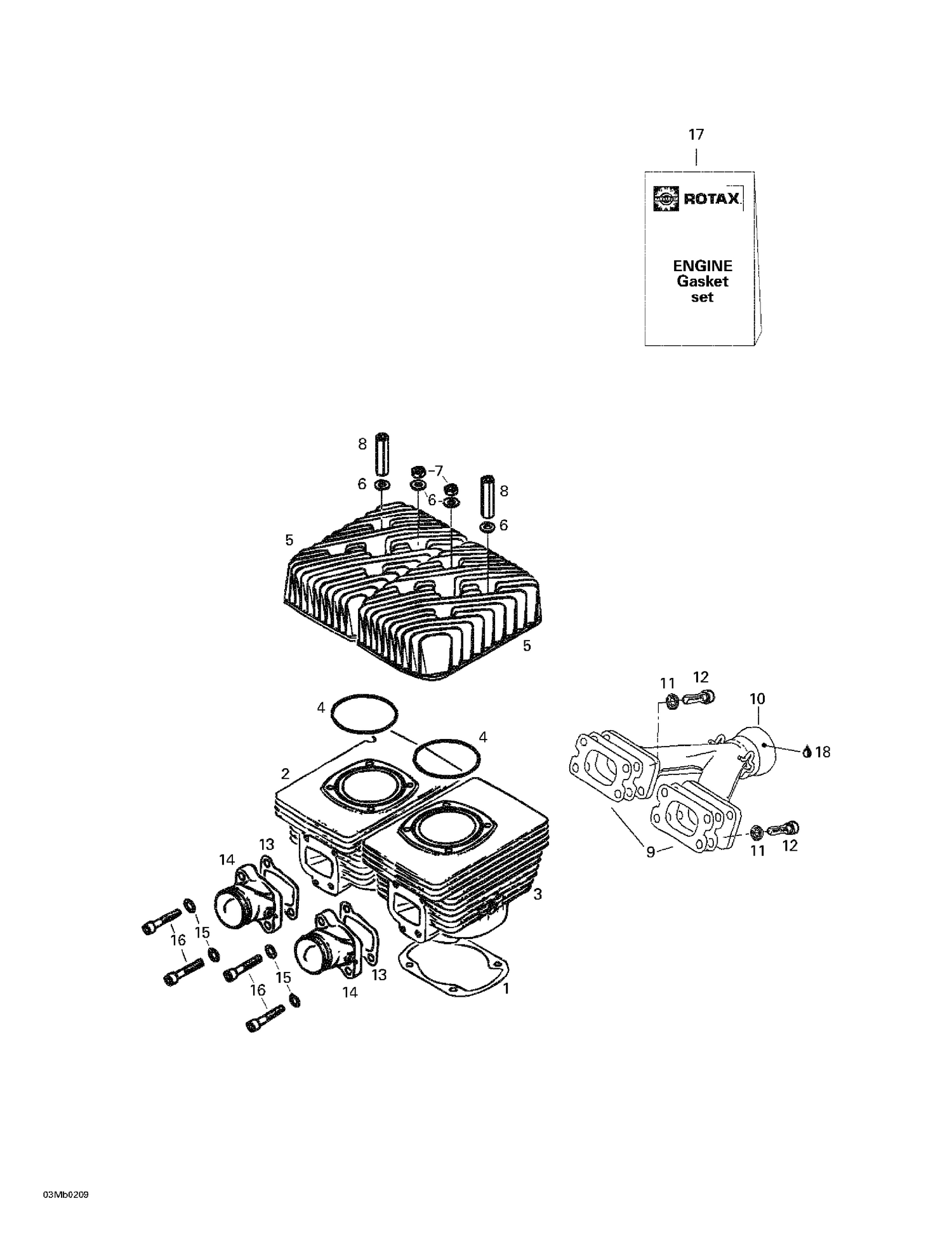

01- Cylinder, Intake Exhaust Manifold
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 421000500 | REBUILD-CYLINDER 503CC - Call your local BRP dealership |
| 6 | 420250315 | Flat Washer 8.4 mm This part replaces 420250311. |
| 7 | 232081414 | Hex. Nut M8 |
| 11 | 234181401 | Lock Washer 8 mm |
| 12 | 205083044 | Socket Head Screw M8 X 30 |
| 13 | 420831867 | INTAKE GASKET 1.0 MM - Call your local BRP dealership |
| 14 | 420867408 | INTAKE SOCKET ASS?Y - Call your local BRP dealership |
| 15 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
