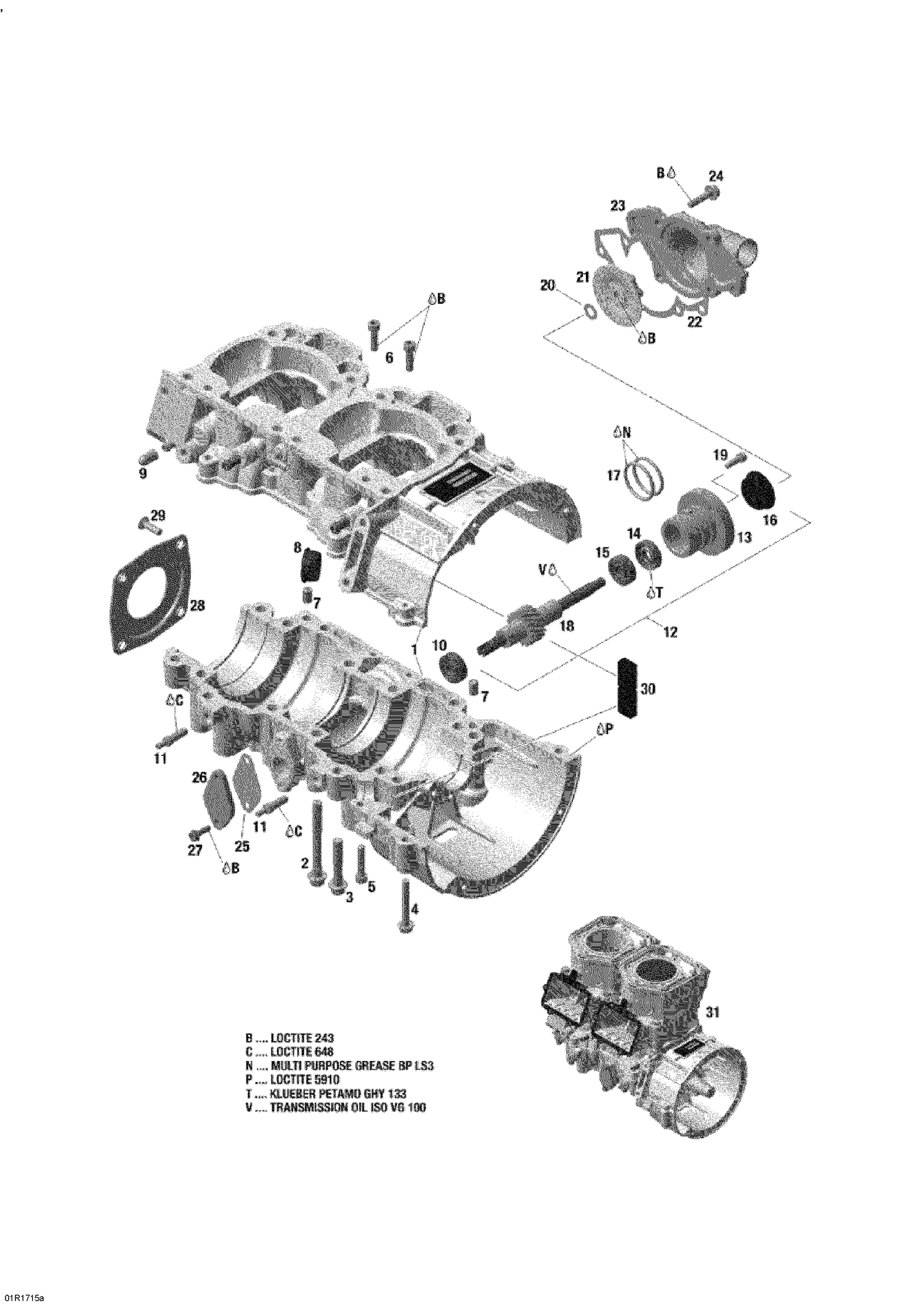

| Ref | Part Number | Description |
|---|
| B |
Not |
Available As Spare Part - Loctite 243 |
| C |
Not |
Available As Spare Part - Loctite 609 |
| N |
Not |
Available As Spare Part - Multipurpose Grease BP LS3 |
| P |
Not |
Available As Spare Part - Loctite 5910 |
| T |
Not |
Available As Spare Part - Grease |
| 7 |
420632010 |
Center Pin 8 X 12 |
| 8 |
420660890 |
Cable Grommet |
| 9 |
420960770 |
Cap |
| 10 |
420232100 |
Ball Bearing |
| 11 |
420956071 |
Check Valve This part replaces 420956070. |
| 13 |
Not |
Available As Spare Part - Step Collar |
| 15 |
420232100 |
Ball Bearing |
| 18 |
Not |
Available As Spare Part - Water Pump Shaft |
| 20 |
420227945 |
Washer |
| 23 |
420922630 |
Water Pump Housing |
| 26 |
420810827 |
Cover Plate |
| 28 |
420812422 |
Oil Seal Cover This part replaces 420812420. |
| 30 |
420960925 |
Rubber Stopper |
| 31 |
300059354 |
Short Block 593 HO E-TEC |
