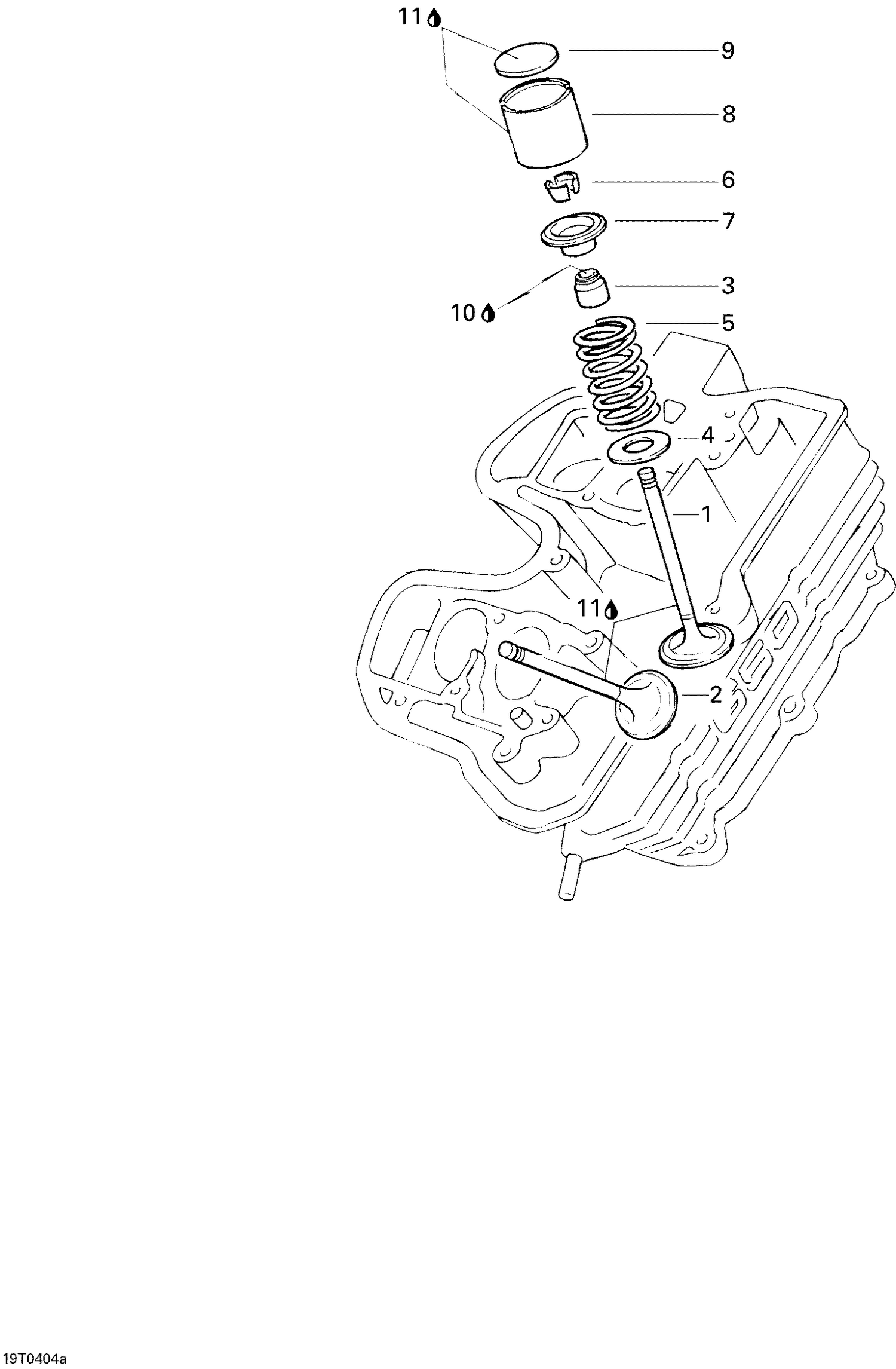

01- Valve
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420253770 | Inlet Valve |
| 2 | 420253780 | EXHAUST VALVE - Call your local BRP dealership |
| 3 | 420230510 | Seal |
| 4 | 420227982 | THRUST WASHER - Call your local BRP dealership |
| 5 | 420239290 | VALVE SPRING - Call your local BRP dealership |
| 6 | 420253645 | Valve Cotter |
| 7 | 420253760 | VALVE SPRING RETAINER - Call your local BRP dealership |
| 8 | 420253545 | VALVE TAPPET - Call your local BRP dealership |
| 9 | 420253741 | SHIM 2,1 - Call your local BRP dealership |
| 10 | 293550030 | Grease, Super Lube |
