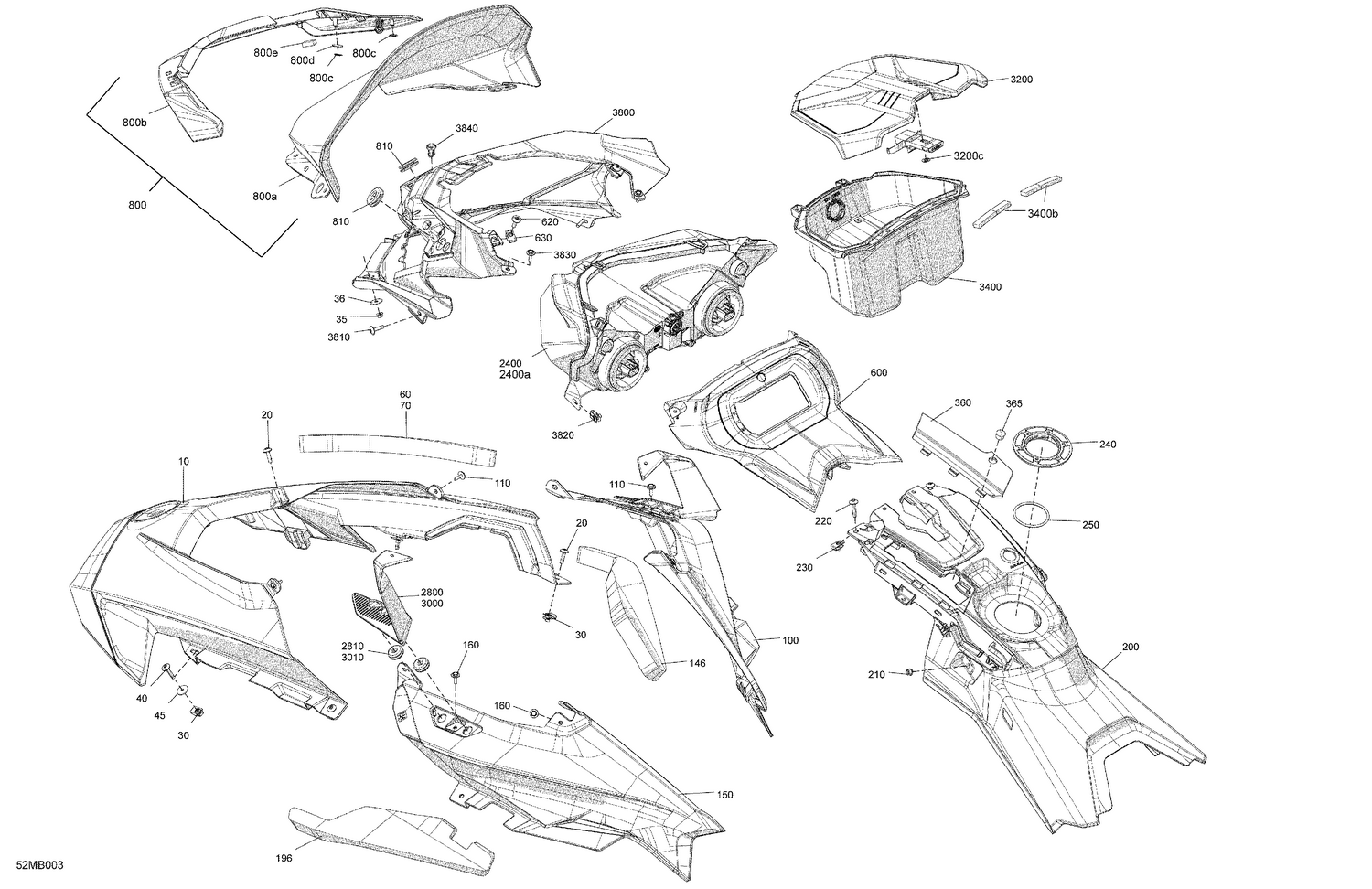

07- Body - Hood — Parts Catalog

Ref	Part Number	Description
10	517307291	Deep Black, Front Hood
20	250000528	Torx Screw M5 X 20
30	250000958	Panel Nut M5 X 0.8
35	233151414	Hex. Flange Nut M5
36	250200040	Flat Washer
40	250000587	Torx Screw M5 X 26
45	250200166	Washer
60	517305763	RH Front Hood Foam
70	517305764	LH Front Hood Foam
100	517307299	Deep Black, RH Hood
110	250000725	Screw M4 X 16
146	517306001	RH Hood Foam
150	517307300	Deep Black, LH Hood
160	250000725	Screw M4 X 16
196	517306002	LH Hood Foam
200	517307685	Rear Console
210	233251434	Flange Elastic Nut M5
220	250000587	Torx Screw M5 X 26
230	250000958	Panel Nut M5 X 0.8
240	517306602	Console Nut
250	706002839	O-Ring
360	517306580	LH Front Console
365	572051500	Cap
600	517307676	Gauge Support
620	250000586	Torx Truss M5 X 20
630	250000958	Panel Nut M5 X 0.8
800a	517306423	Windshield 360
800b	517305749	Deep Black, Windshield Support
800c	732610072	Push Nut
800d	250200024	Rubber Washer 5 mm
800e	219704476	Gasket, Neoprene 2000Mm Long This part replaces 219704372.
810	517303756	Grommet
2400a	415130081	Bulb
2800	517305776	RH Deflector Black 63% Light Transm.
2810	517307161	Grommet
3000	517305777	Deflector LH, Black 63% Light Transm.
3010	517307161	Grommet
3200c	732610072	Push Nut
3400b	517305157	Seal Joint
3800	517305746	Deep Black, Headlamp Fairing
3810	250000528	Torx Screw M5 X 20
3820	250000958	Panel Nut M5 X 0.8
3830	250000725	Screw M4 X 16
