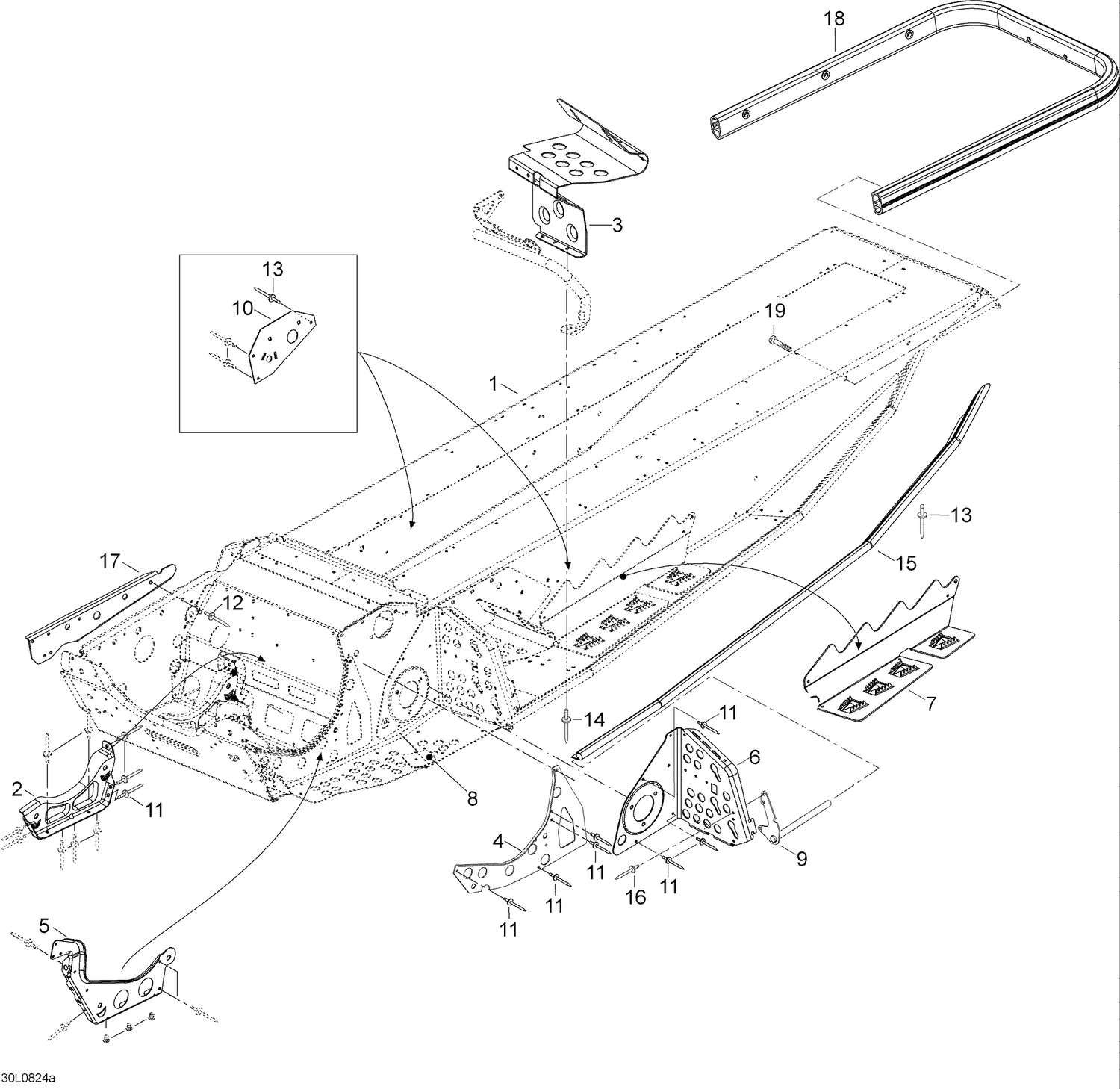

09- Frame
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518323346 | ENGINE SUPPORT, BLACK - Call your local BRP dealership |
| 3 | 605353472 | L.H. Toe hold |
| 3 | 605353473 | R.H. Toe hold |
| 4 | 605350345 | Inner reinforcement |
| 5 | 605451826 | Engine support |
| 6 | 518323805 | R.H. footrest reinforcement |
| 6 | 518324527 | LH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 7 | 605253923 | L.H. footrest reinforcement |
| 7 | 605253924 | R.H. footrest reinforcement |
| 8 | 605451590 | Rivet plate |
| 9 | 605453453 | L.H. Support plate |
| 9 | 605453454 | R.H. Support plate |
| 10 | 605453604 | L.H. Bracket |
| 10 | 605453605 | R.H. Bracket |
| 11 | 36007 | Rivet |
| 12 | 605636005 | Rivet |
| 13 | 36108 | Rivet |
| 14 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 15 | 605354023 | L.H. Roller |
| 15 | 605354024 | R.H. Roller |
| 16 | 36006 | Rivet |
| 17 | 605353544 | Stiffener |
| 18 | 605253597 | Rear bumper |
