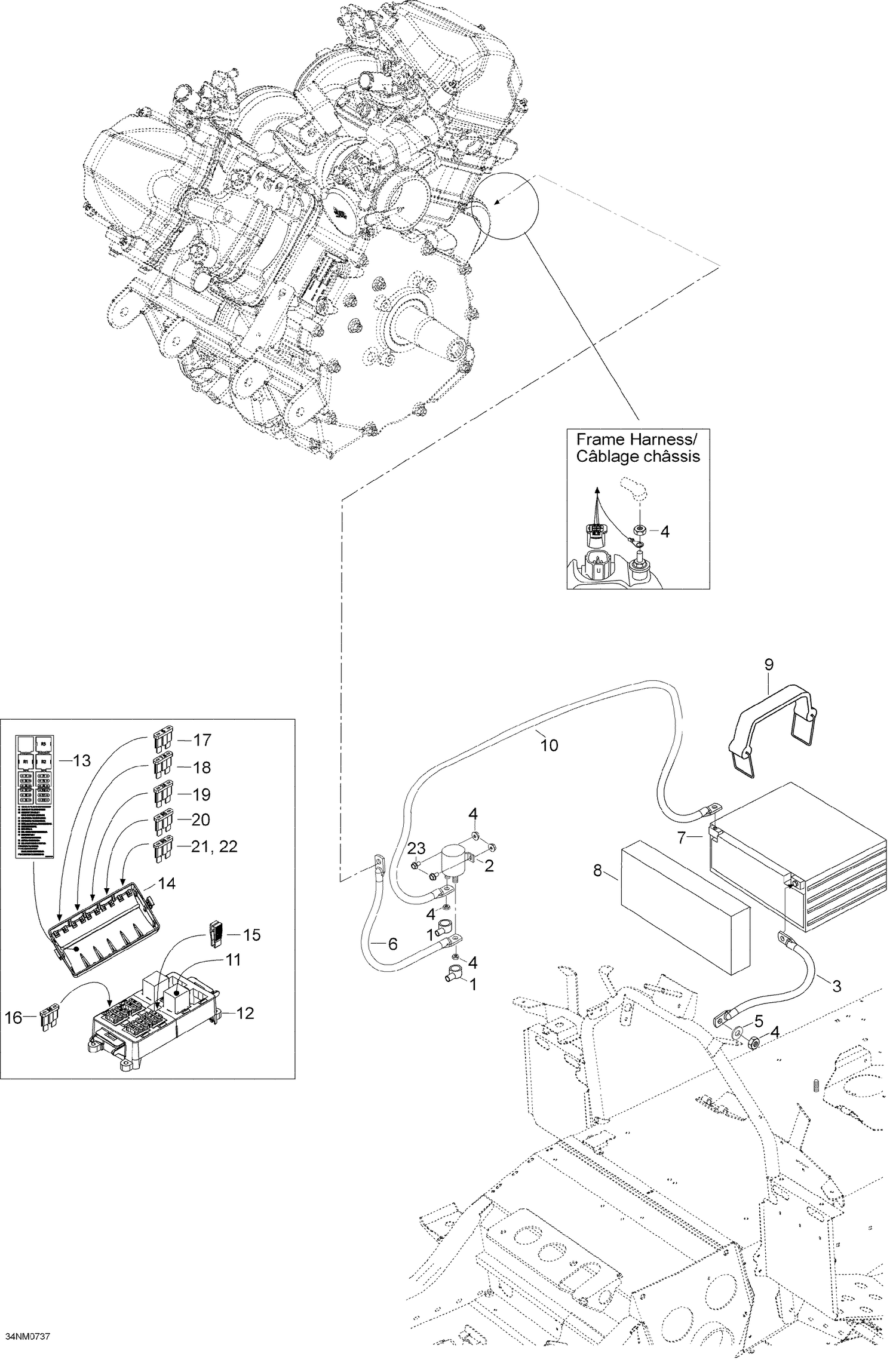

| Ref | Part Number | Description |
|---|
| 1 |
570151000 |
Cover |
| 2 |
515176011 |
Solenoid |
| 3 |
605455189 |
GROUND WIRE - Call your local BRP dealership |
| 4 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 5 |
20017 |
Cover |
| 6 |
605355251 |
BATTERY WIRE - Call your local BRP dealership |
| 7 |
219800519 |
Battery_12 Volt 21Ah This part replaces 515175895. |
| 8 |
605352572 |
COVER - Call your local BRP dealership |
| 9 |
605352573 |
STEEL STRIP - Call your local BRP dealership |
| 10 |
605151524 |
Battery wire |
| 11 |
515177672 |
Relais *Relay This part replaces 410113604. |
| 12 |
515176065 |
FUSE BOX BASE - Call your local BRP dealership |
| 13 |
605454618 |
FUSE DECAL - Call your local BRP dealership |
| 14 |
515176066 |
COVER - Call your local BRP dealership |
| 15 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 16 |
42040 |
Fuse 5 A |
| 16 |
42041 |
Fuse 7.5 A |
| 16 |
42042 |
Fuse 20 A |
| 16 |
42043 |
Fuse 30 A |
| 16 |
42044 |
FUSE 1 A - Call your local BRP dealership |
| 17 |
42045 |
Fuse 15 A |
| 18 |
42040 |
Fuse 5 A |
| 19 |
42041 |
Fuse 7.5 A |
| 20 |
42042 |
Fuse 20 A |
| 21 |
42043 |
Fuse 30 A |
| 22 |
42045 |
Fuse 15 A |
