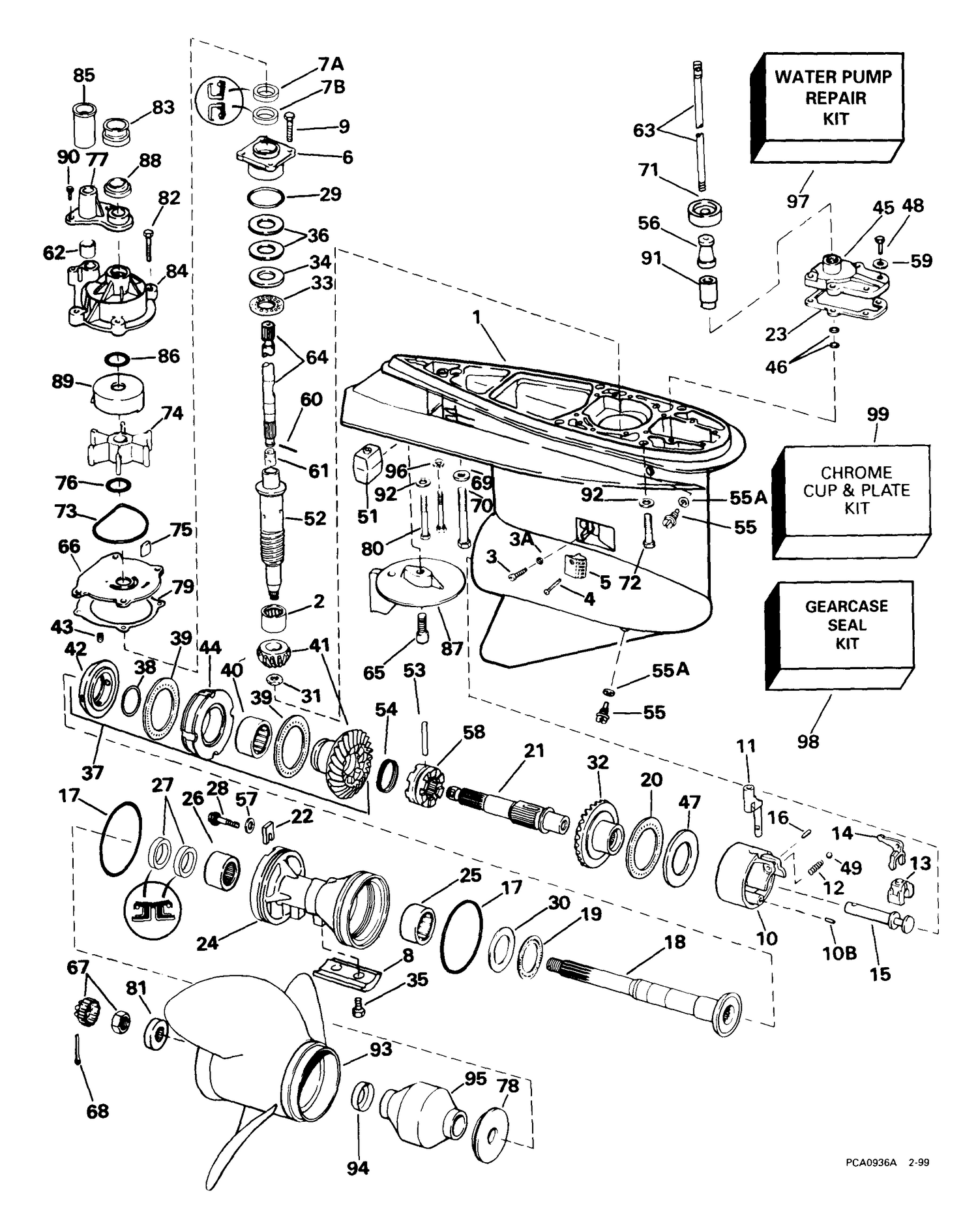

| Ref | Part Number | Description |
|---|
| 17 |
0305123 |
O RING |
| 37 |
5004590 |
Gearset Ay This part replaces 0435553. |
| 41 |
5004939 |
Gearset This part replaces 0435934. |
| 63 |
0329865 |
SHIFT ROD |
| 63 |
0337780 |
SHIFT ROD |
| 64 |
5007672 |
DRIVESHAFT Assembly, Upper This part replaces 0436233. |
| 64 |
5007673 |
DRIVESHAFT ASSEMBLY, Upper This part replaces 0435773. |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 80 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 86 |
0331188 |
O-Ring |
| 87 |
0338743 |
TRIM TAB |
| 93 |
PROPELLER |
Ref: 94 0313926 *Propeller Hub Sleeve 0313926 |
| 97 |
5001595 |
Water Pump Repair Kit This part replaces 0435929. |
| 98 |
5006373 |
GEARCASE SEAL KIT This part replaces 5000411. |
| 0439980 |
5009324 |
Gcase/Coro/Wht/Os This part replaces 0439980. |
