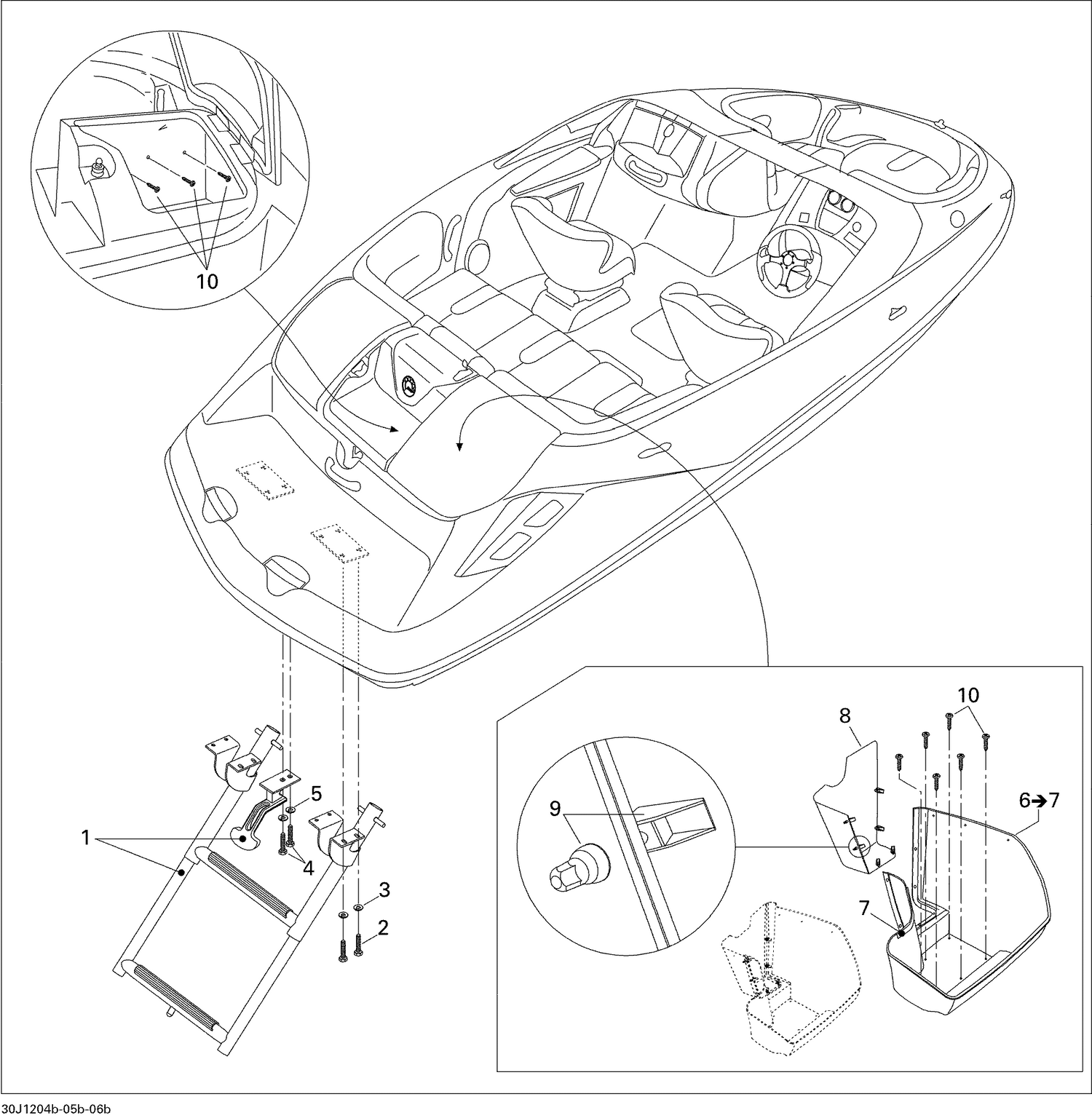

09- Lower Hull And Ladder
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 262000151 | LADDER, 2 STEPS - Call your local BRP dealership |
| 2 | 207163560 | Hex. Screw M6 X 35 |
| 3 | 234161601 | Lock Washer Helical M6 |
| 4 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 5 | 234041600 | Flat Washer 4 mm, Stainless |
| 7 | 204072752 | TRIM, BLACK, 7/16?, METER - Call your local BRP dealership |
| 8 | 292800056 | REAR STORAGE BIN PANEL - Call your local BRP dealership |
| 9 | 204050309 | LATCH ASS'Y - Call your local BRP dealership |
