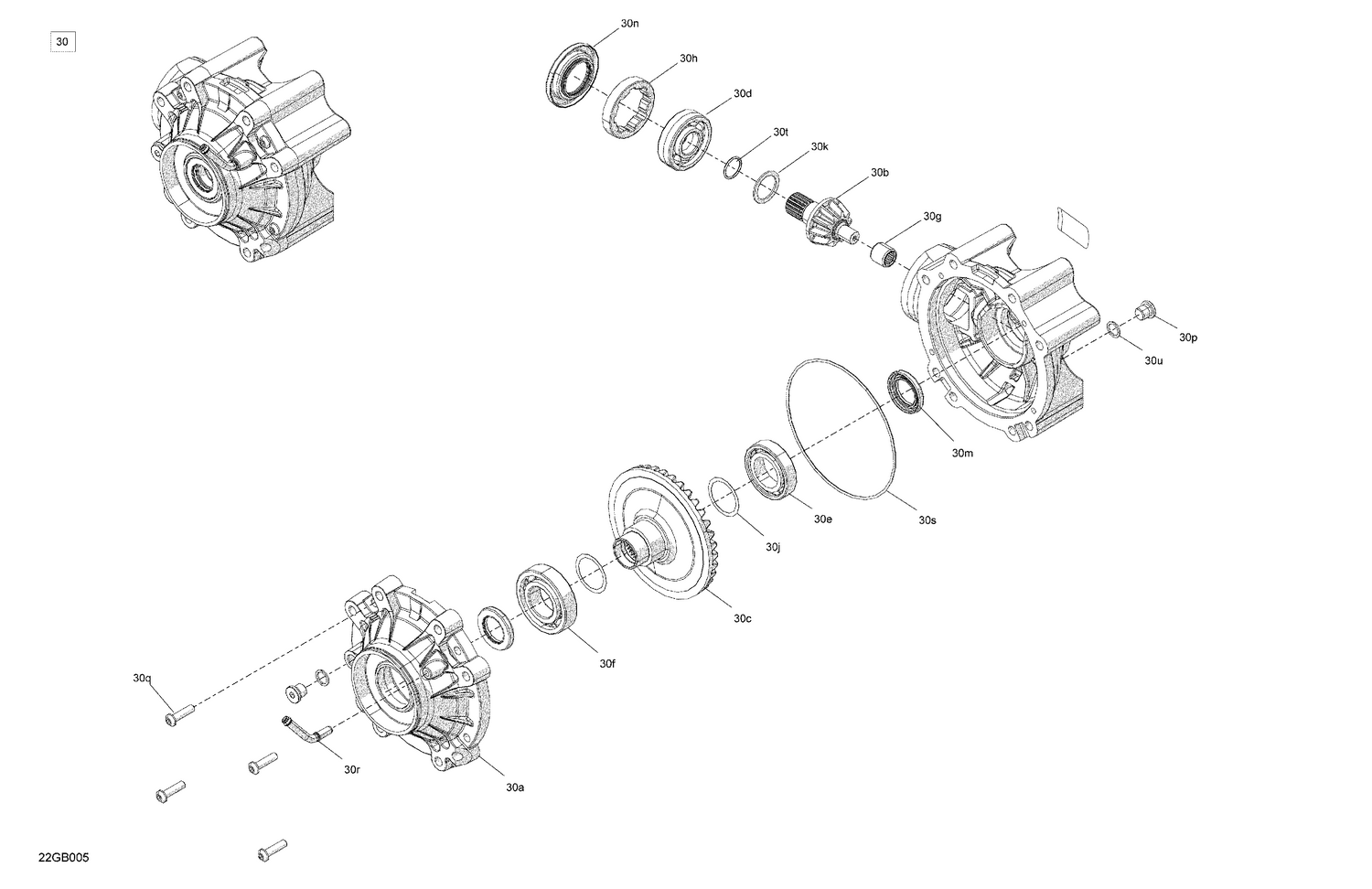

04- Drive - Final Drive Unit
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705502389 | Rear Cover |
| 30b | 705502823 | Pinion 10 Teeth |
| 30c | 705502822 | Gear 36 Teeth |
| 30d | 705502055 | Ball Bearing |
| 30e | 705502737 | Ball Bearing |
| 30f | 705502738 | Ball Bearing |
| 30g | 705502058 | Needle Bearing |
| 30h | 705401603 | Nut |
| 30j | 705502060 | Differential Shim 0.02 mm |
| 30k | 705502061 | Pinion Gear Shim 1.67 mm |
| 30m | 705501996 | Oil Seal |
| 30n | 705402405 | Oil Seal |
| 30p | 705500504 | Fill Level Plug |
| 30q | 205483046 | SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership |
| 30r | 705501584 | Breather Tube |
| 30s | 705502064 | Seal |
| 30t | 705502065 | O-Ring |
