Parts Catalog

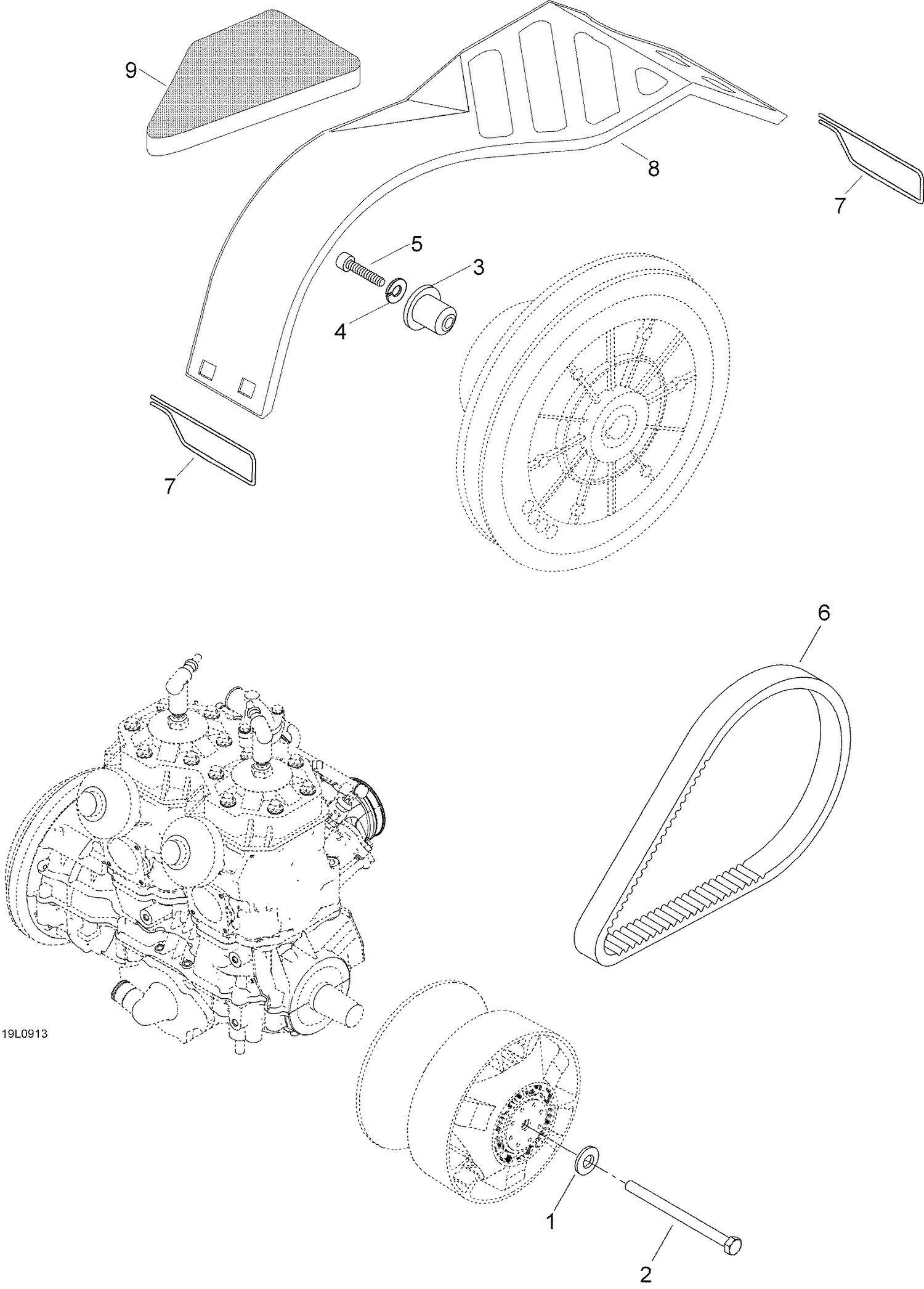

05- Pulley System

Parts (8)

Ref	Part Number	Description
1	20110	Lock washer M14
2	417300285	Screw
3	5443201	Sleeve
4	20014	Lock washer A8
5	40286	Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership
6	605348425	Drive belt
7	5442726	Pin
8	605149860	BELT GUARD - Call your local BRP dealership
