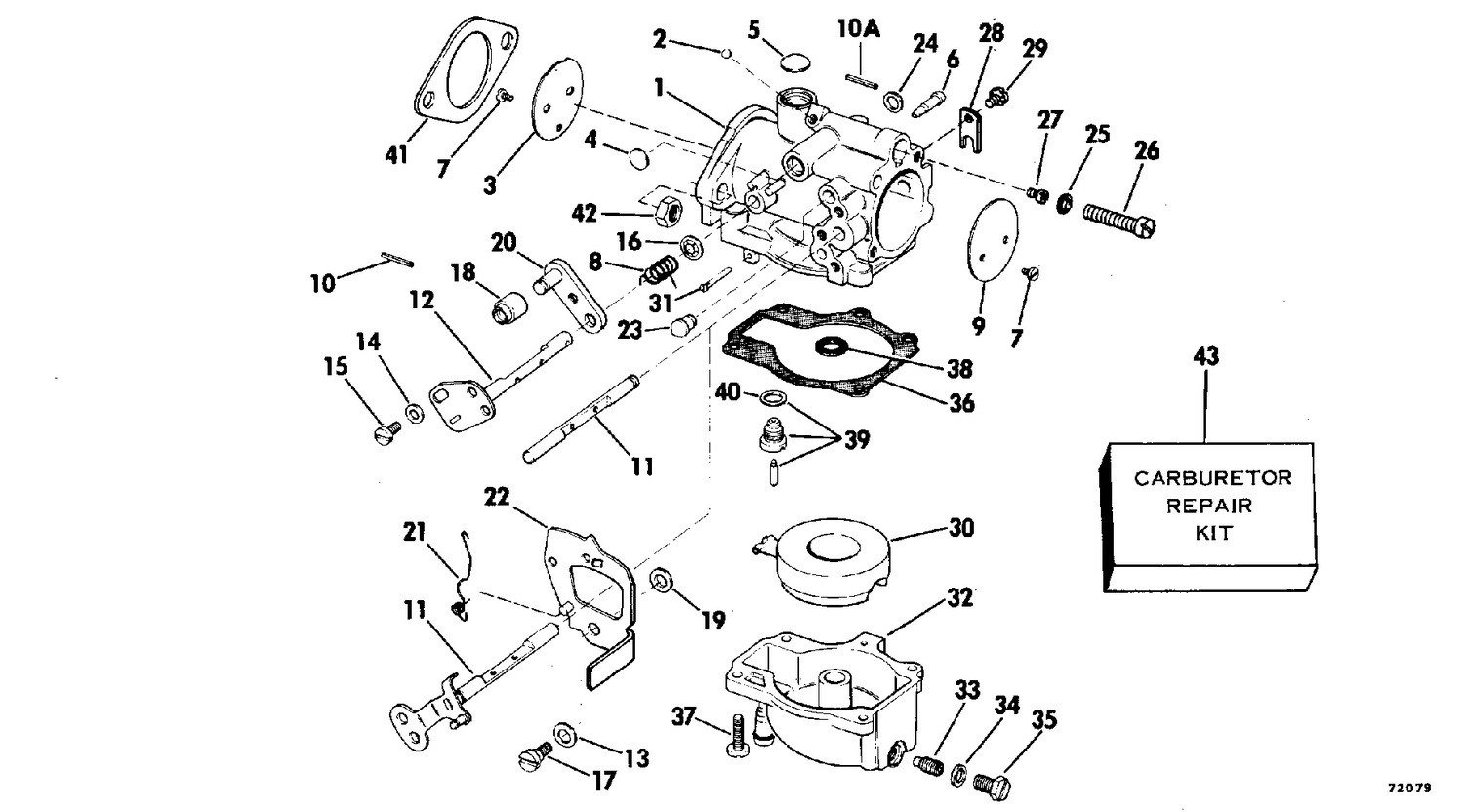

| Ref | Part Number | Description |
|---|
| 1 |
0387929 |
BODY ASSEMBLY,Upper & lower |
| 1 |
0387930 |
BODY ASSEMBLY,Middle |
| 1 |
0387931 |
BODY ASSEMBLY,Middle |
| 1 |
0387932 |
BODY ASSEMBLY,Upper & lower |
| 9 |
0322182 |
CHOKE VALVE |
| 10 |
0307901 |
ROLL PIN |
| 11 |
0321798 |
CHOKE SHAFT |
| 11 |
0387812 |
CHOKE SHAFT |
| 22 |
0387908 |
LEVER AND PIN ASSY |
| 28 |
0314906 |
CLIP |
| 32 |
0387590 |
FLOAT CHAMBER |
| 33 |
0321407 |
ORFICE PLUG (54D) |
| 35 |
0307832 |
PLUG, Screw |
| 41 |
0325092 |
GASKET This part replaces 0314477. |
| 42 |
0316355 |
BUT, Carburetor mounting |
| 0387904 |
0387904 |
CARBURETOR ASSEMBLY, Middle |
| 0387905 |
0387905 |
CARBURETOR ASSEMBLY, Upper & lower |
| 0387906 |
0387906 |
CARBURETOR ASSEMBLY, Middle |
| 0387907 |
0387907 |
CARBURETOR ASSEMBLY, Upper & lower |
