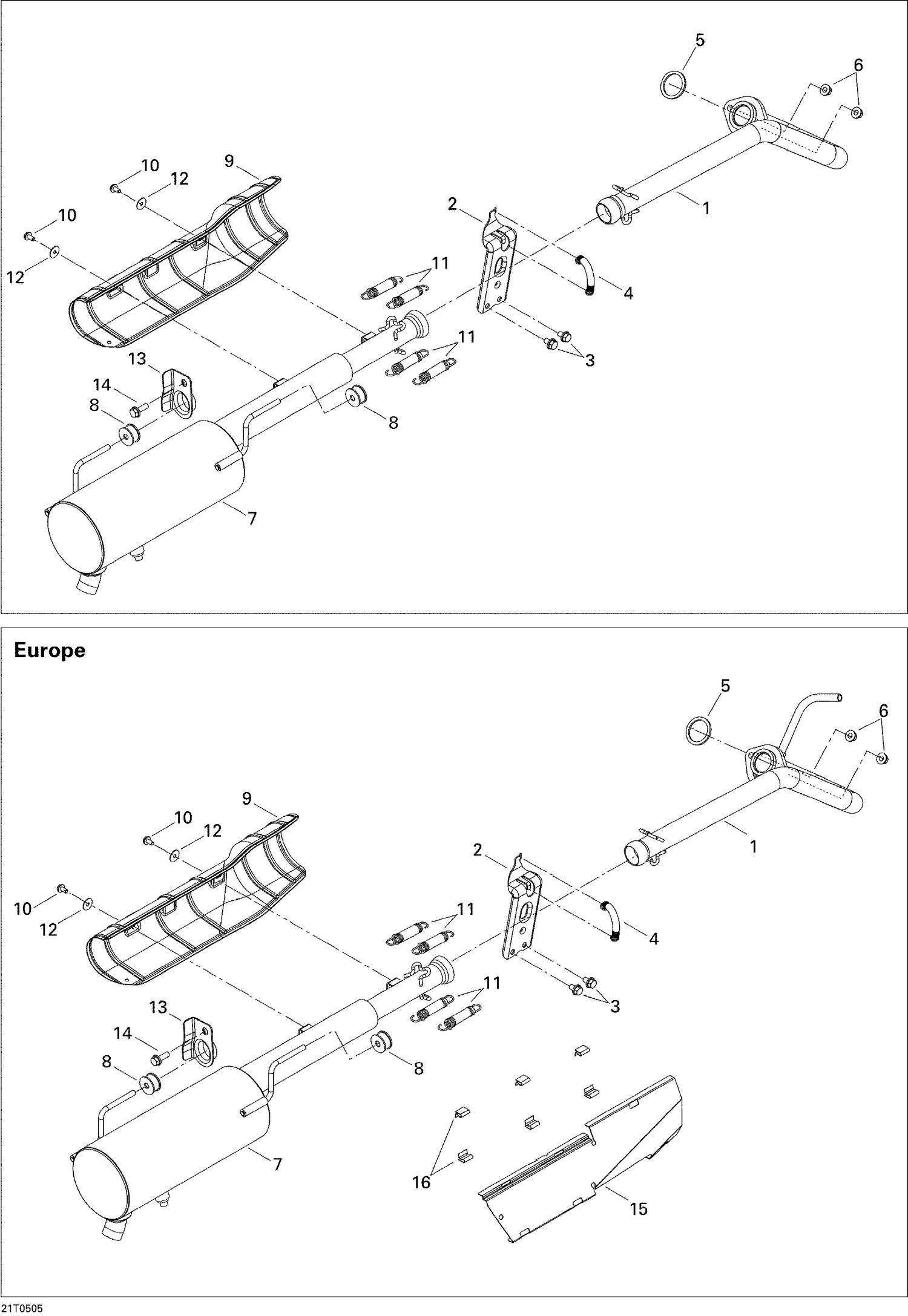

| Ref | Part Number | Description |
|---|
| 1 |
707600338 |
TUNED PIPE - Call your local BRP dealership |
| 2 |
707600194 |
Muffler Support |
| 3 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 4 |
707600207 |
SPRING - Call your local BRP dealership |
| 5 |
707600317 |
Gasket This part replaces 707600242. |
| 6 |
233081416 |
Hex. Flange Nut M8 |
| 7 |
707600311 |
Muffler |
| 8 |
707600702 |
Anti-Vibration Rubber This part replaces 707600012. |
| 9 |
707600224 |
HEAT SHIELD - Call your local BRP dealership |
| 10 |
250000073 |
HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership |
| 11 |
415107100 |
Spring |
| 12 |
250200082 |
Flat Washer This part replaces 391302000. |
| 13 |
707600248 |
MUFFLER SUPPORT - Call your local BRP dealership |
| 14 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
