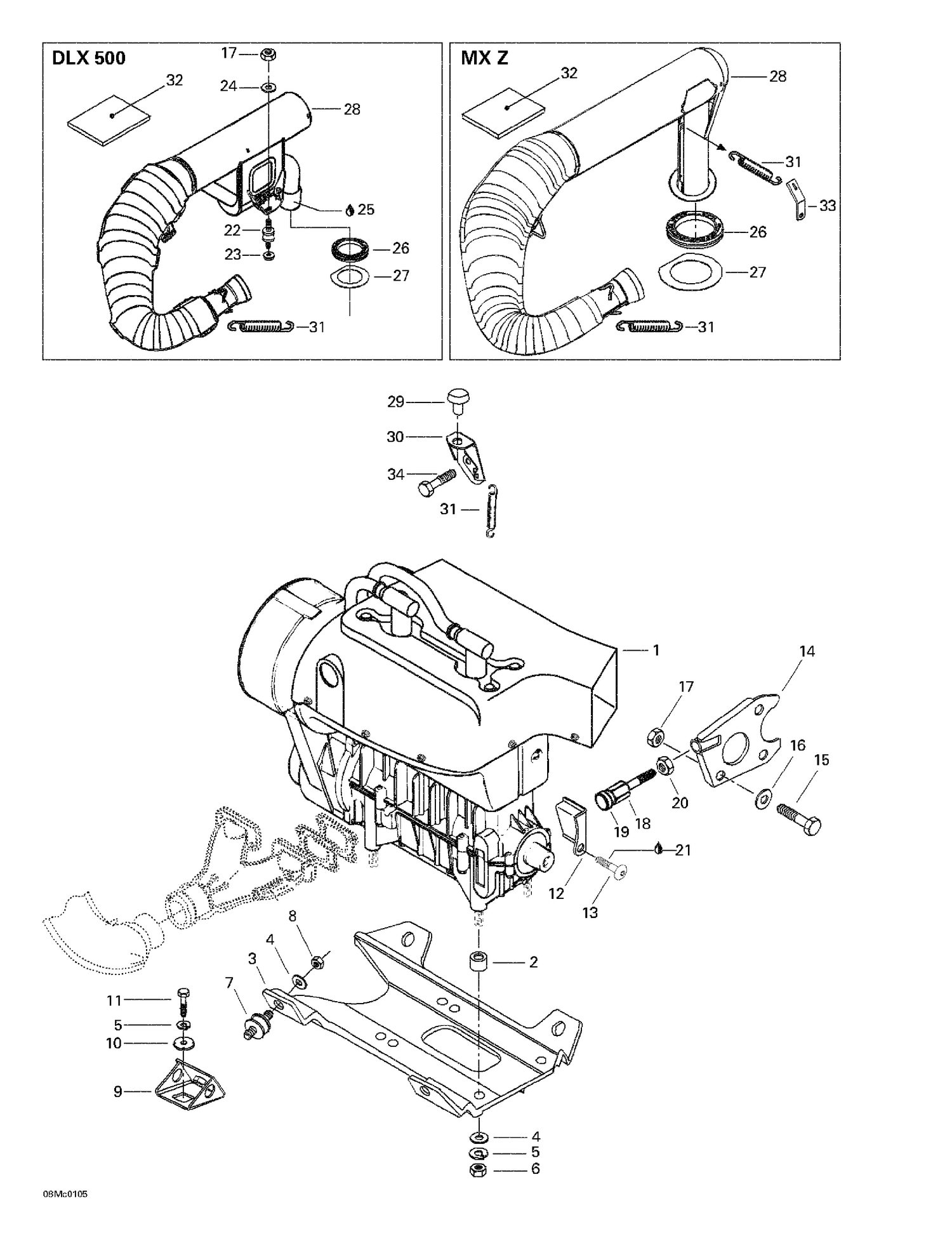

01- Engine Support And Muffler
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 512059134 | Engine Support |
| 4 | 234001410 | Flat Washer 10 mm |
| 5 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 6 | 232006414 | Hex. Nut M10 X 1.5 |
| 7 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 8 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 9 | 512050900 | Engine Support |
| 10 | 512056700 | Lock Washer |
| 11 | 207102544 | Hex. Screw M10 X 25 |
| 12 | 512059198 | Stopper Plate |
| 13 | 236282084 | Hex. Screw M8 X 20 |
| 14 | 517271800 | Support Plate |
| 15 | 207182544 | Hex. Screw M8 X 25 |
| 16 | 234081410 | Flat Washer 8 mm |
| 17 | 232581414 | Hex. Elastic Stop Nut M8 |
| 18 | 517244200 | Screw |
| 19 | 570025100 | Rod retainer |
| 20 | 232120414 | HEX. NUT M12 - Call your local BRP dealership |
| 21 | 293800005 | Loctite 271, 10 ml |
| 26 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 27 | 514049300 | Aluminum Washer |
| 29 | 514053654 | Rubber Bumper This part replaces 570048700. |
| 30 | 514044100 | Muffler Support |
| 31 | 415107100 | Spring |
