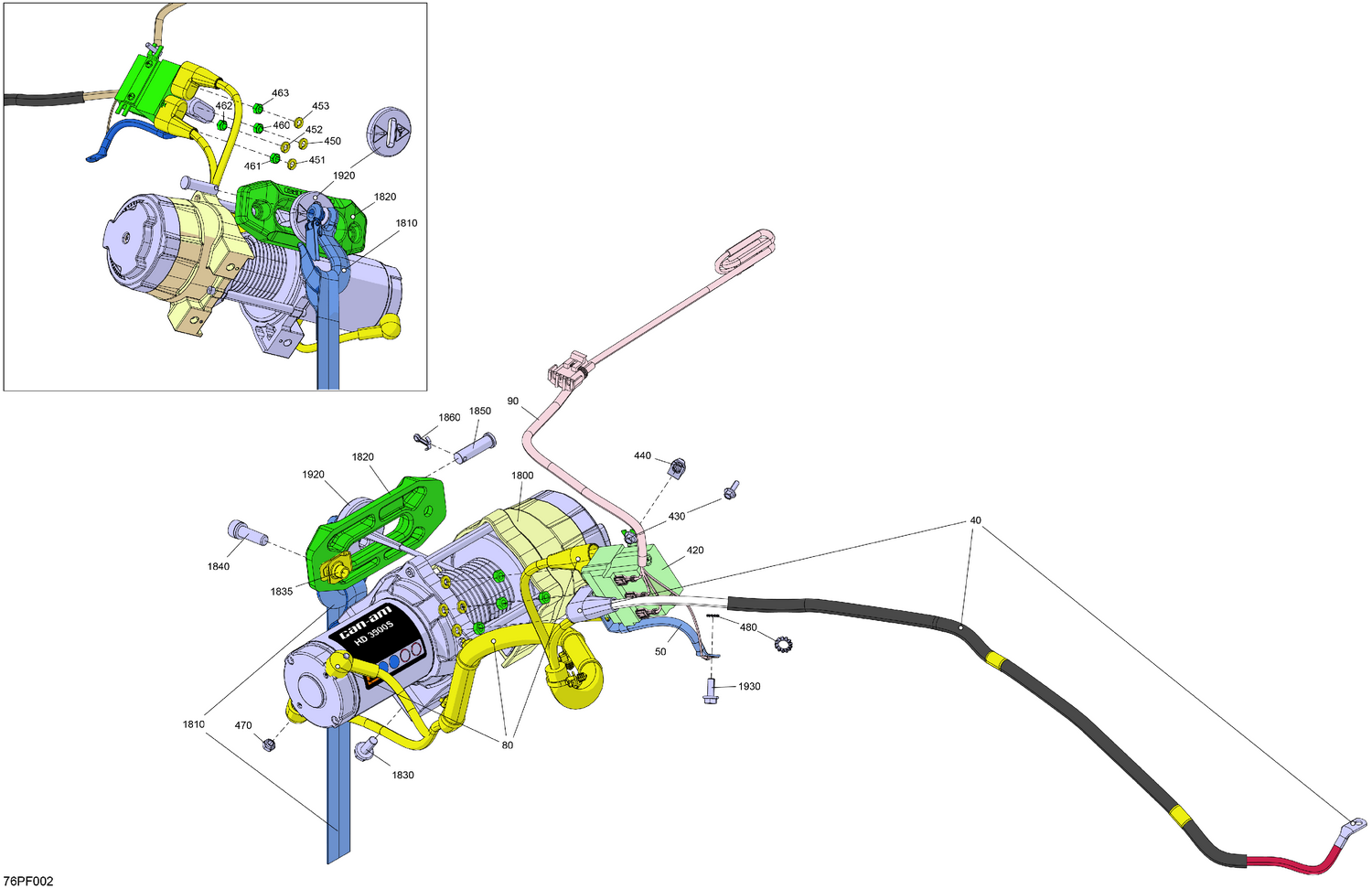

08- Electric - Winch
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 40 | 710011144 | Power Cable Solenoid |
| 50 | 710008878 | Negative Cable |
| 80 | 710010155 | Winch Power Cable |
| 90 | 710006833 | Winch Wiring Harness |
| 420 | 710009454 | Solenoid |
| 430 | 207651646 | Hex. Flange Screw M5 X 16 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 450 | 234161601 | Lock Washer Helical M6 |
| 451 | 234161601 | Lock Washer Helical M6 |
| 452 | 234161601 | Lock Washer Helical M6 |
| 453 | 234161601 | Lock Washer Helical M6 |
| 460 | 232561414 | Elastic Stop Nut M6 |
| 461 | 232561414 | Elastic Stop Nut M6 |
| 462 | 232561414 | Elastic Stop Nut M6 |
| 463 | 232561414 | Elastic Stop Nut M6 |
| 470 | 232561200 | Brass Elastic Stop Nut M6 |
| 480 | 234461608 | External Serrated Lock Washer 6 mm |
| 1800 | 710011199 | Winch Electric |
| 1810 | 705014949 | Winch Hook Kit |
| 1820 | 710009878 | Fairlead |
| 1830 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 1835 | 250001264 | Panel Nut M10 X 1.5 |
| 1840 | 205003054 | Screw Socket Head M10 X 30 |
| 1850 | 705014949 | Winch Hook Kit |
| 1860 | 705014949 | Winch Hook Kit |
| 1920 | 710007028 | Stopper |
