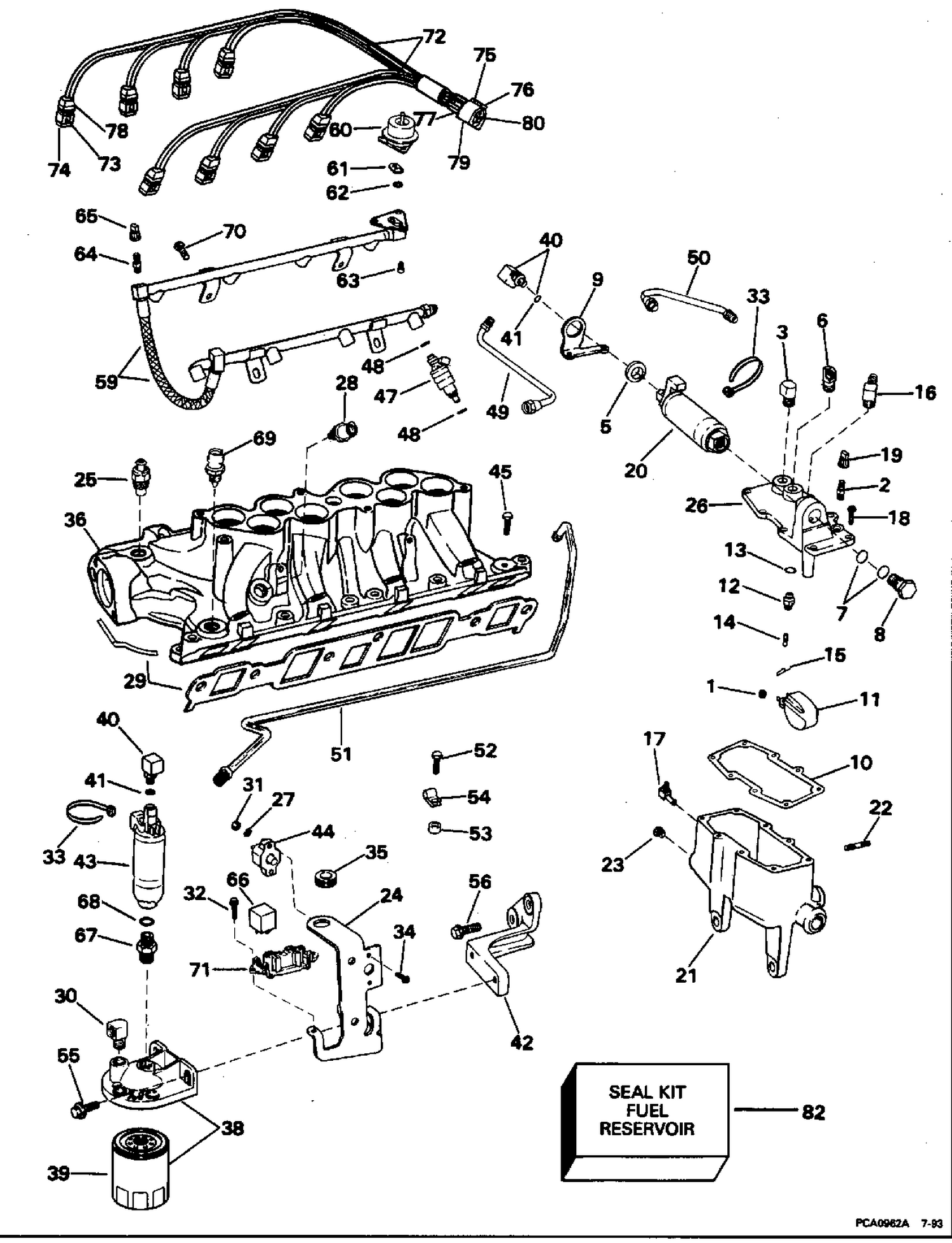

| Ref | Part Number | Description |
|---|
| 1 |
0203363 |
RETAINER This part replaces 3852034. |
| 2 |
3854152 |
VALVE, Pressure |
| 3 |
3852453 |
FITTING, Cover, return line |
| 5 |
0909988 |
BUSHING, Tilt & trim cable This part replaces 3852481. |
| 6 |
3852506 |
FITTING, Fuel pump outlet |
| 7 |
3853642 |
O-RING, Retainer, fuel pump |
| 8 |
3853572 |
RETAINER, Fuel pump to cover |
| 9 |
3853573 |
BRACKET, Fuel pump grommet |
| 10 |
3857728 |
GASKET, Cover, reservoir This part replaces 3853574. |
| 11 |
3853575 |
FLOAT |
| 12 |
3853576 |
SEAT, Float needle |
| 13 |
3853577 |
GASKET, Float needle seat |
| 14 |
0915883 |
NEEDLE, Float This part replaces 3853578. |
| 15 |
3853579 |
CLIP, Needle to float |
| 16 |
3853597 |
ELBOW, Vent, reservoir to intake |
| 17 |
0174177 |
ELBOW KIT This part replaces 3852480. |
| 18 |
3853606 |
SCREW, Cover to reservoir |
| 20 |
3857650 |
FUEL PUMP, High pressure This part replaces 3854280. |
| 21 |
3854149 |
RESERVOIR ASSY. |
| 22 |
3852093 |
STUD, Lift bracket |
| 24 |
3856438 |
BRACKET, Fuel filter & pump This part replaces 3853544. |
| 25 |
3854710 |
SWITCH, Water temperature |
| 25 |
3854711 |
SWITCH, Water temperature |
| 26 |
3854405 |
COVER, Reservoir |
| 28 |
3854158 |
SENSOR, Air charge temperature |
| 29 |
3853913 |
GASKET SET, Intake |
| 29 |
3854406 |
GASKET SET, Intake manifold |
| 30 |
0174179 |
ELBOW, Filter inlet |
| 33 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 34 |
3853620 |
SCREW, Circuit breaker |
| 35 |
0909988 |
BUSHING, Tilt & trim cable This part replaces 3852481. |
| 36 |
3853769 |
INTAKE MANIFOLD |
| 36 |
3854301 |
INTAKE MANIFOLD |
| 38 |
3850861 |
COVER & FUEL FILTER ASSY |
| 39 |
5012363 |
Filter Ay This part replaces 0987754. |
| 40 |
3853545 |
FITTING, Fuel pump |
| 41 |
3850820 |
O-RING |
| 42 |
3853570 |
BRACKET, Fuel pump & filter |
| 43 |
3857985 |
FUEL PUMP, Low pressure This part replaces 3854902. |
| 44 |
3854163 |
CIRCUIT BREAKER, 20A Fuel pump |
| 45 |
3853036 |
BOLT, Intake manifold |
| 47 |
3850925 |
INJECTOR, Fuel |
| 47 |
3854136 |
INJECTOR, Fuel |
| 48 |
3853733 |
O-RING, Fuel injector |
| 49 |
3854142 |
LINE, Reservoir to fuel rail |
| 49 |
3854154 |
LINE, Reservoir to fuel rail |
| 50 |
3854143 |
LINE, Regulator to reservoir |
| 50 |
3854155 |
LINE, Regulator to reservoir |
| 51 |
3854140 |
LINE, Fuel pump to reservoir |
| 51 |
3854165 |
LINE, Fuel pump to reservoir |
| 52 |
0302288 |
BOLT This part replaces 3852043. |
| 53 |
3853617 |
SPACER, Bushing |
| 54 |
0511514 |
CLAMP, Cable This part replaces 3852231. |
| 55 |
3853266 |
BOLT, Distributor |
| 56 |
3853558 |
BOLT, Bracket to head |
| 59 |
3854141 |
RAIL ASSY., Fuel |
| 59 |
3854153 |
RAIL ASSY., Fuel |
| 60 |
3854237 |
PRESSURE REGULATOR |
| 61 |
3853737 |
GASKET, Pressure regulator |
| 62 |
3853738 |
O-RING, Pressure regulator |
| 63 |
3853739 |
SCREW, Pressure regulator |
| 64 |
3854152 |
VALVE, Pressure |
| 67 |
3853493 |
FITTING, Filter outlet to pump |
| 69 |
3854159 |
SENSOR, Coolant temperature |
| 72 |
3854150 |
CABLE ASSY., Fuel injectors |
| 73 |
3852260 |
CONNECTOR |
| 74 |
3853679 |
ISOLATOR, Relay mounting |
| 75 |
3853708 |
CONNECTOR HOUSING |
| 76 |
3853709 |
RETAINER, Connector |
| 77 |
3853710 |
TERMINAL |
| 78 |
3853711 |
BOOT |
| 80 |
3853740 |
TERMINAL |
