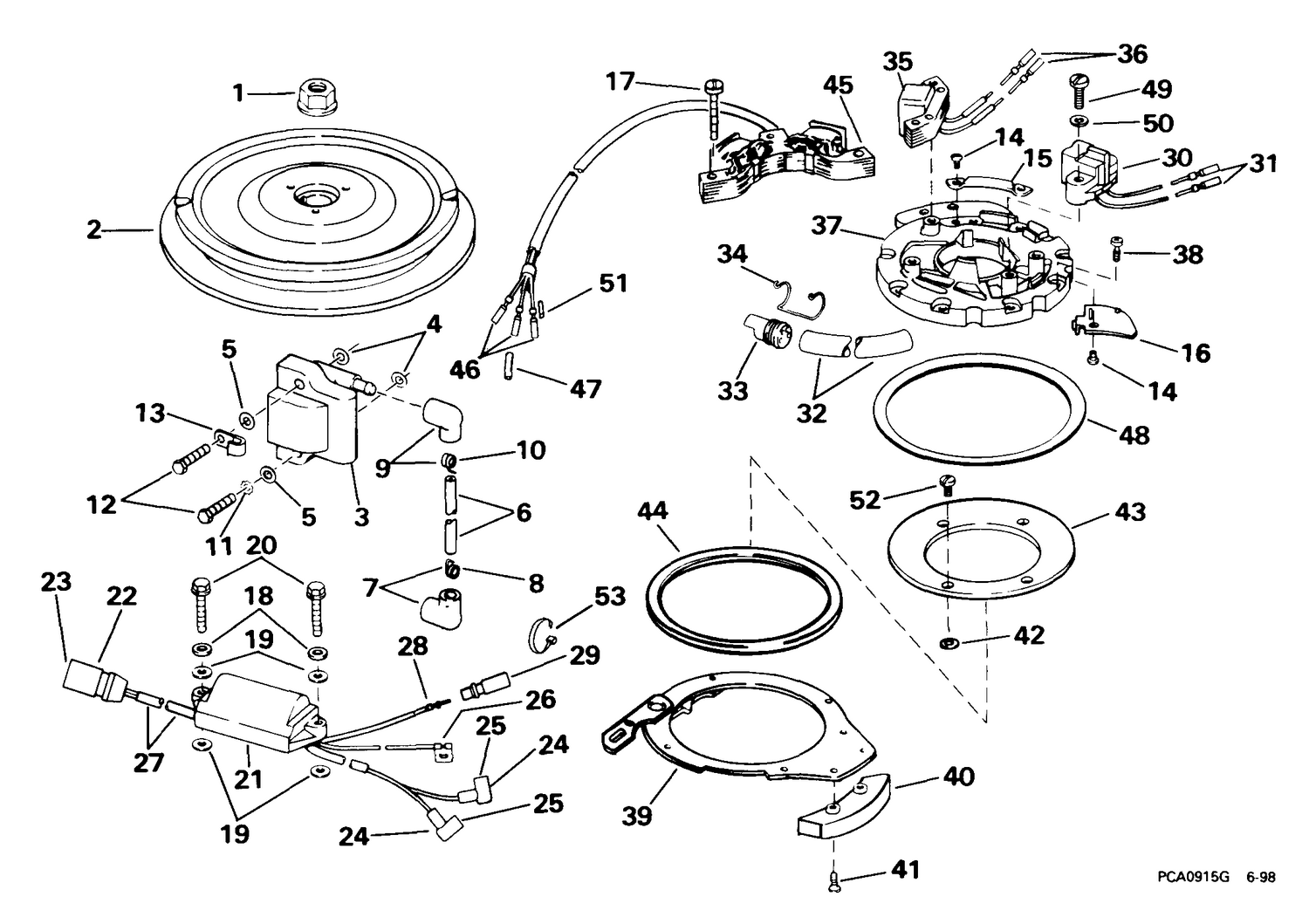

| Ref | Part Number | Description |
|---|
| 3 |
0582508 |
COIL ASSY |
| 4 |
0329176 |
FIBER WASHER, Ignition coil |
| 5 |
0329241 |
RONDELLE |
| 6 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 13 |
0330151 |
CLAMP, Harness to oil tank boss |
| 14 |
0303212 |
VIS, collier & capot |
| 15 |
0511458 |
COLLIER, fils |
| 16 |
0511459 |
CACHE, fils |
| 17 |
0337522 |
VIS, ensemble bobine |
| 18 |
0329241 |
RONDELLE |
| 19 |
0329176 |
FIBER WASHER, Ignition coil |
| 20 |
0335220 |
SCREW, Bracket |
| 21 |
0585224 |
POWER PACK Assy |
| 30 |
0583387 |
SENSOR ASSEMBLY |
| 32 |
0512765 |
BRACKET |
| 34 |
0512743 |
DISPOSITIF DE RETENUE |
| 35 |
5000611 |
CHARGE COIL & LAM. ASSY. This part replaces 0584504. |
| 37 |
0584208 |
PLATE & SLEEVE Assy |
| 38 |
0511460 |
VIS, dispositif de retenue |
| 39 |
0396031 |
RETAINER & LINK ASSEMBLY |
| 40 |
0326876 |
CAM, Throttle control |
| 40 |
0334750 |
CAM, Throttle control |
| 41 |
0331036 |
VIS, attache de palier |
| 42 |
0323693 |
WASHER, Bellcrank screw |
| 43 |
0339359 |
RING, Pilot |
| 44 |
0323647 |
RING, Ign. plate to support |
| 45 |
0584507 |
STATOR |
| 48 |
0323692 |
WASHER, Thrust |
| 49 |
0319682 |
VIS, capteur vers plaque |
| 51 |
0328074 |
CACHE, cosse prise |
| 52 |
0340868 |
SCREW, Ignition plate |
