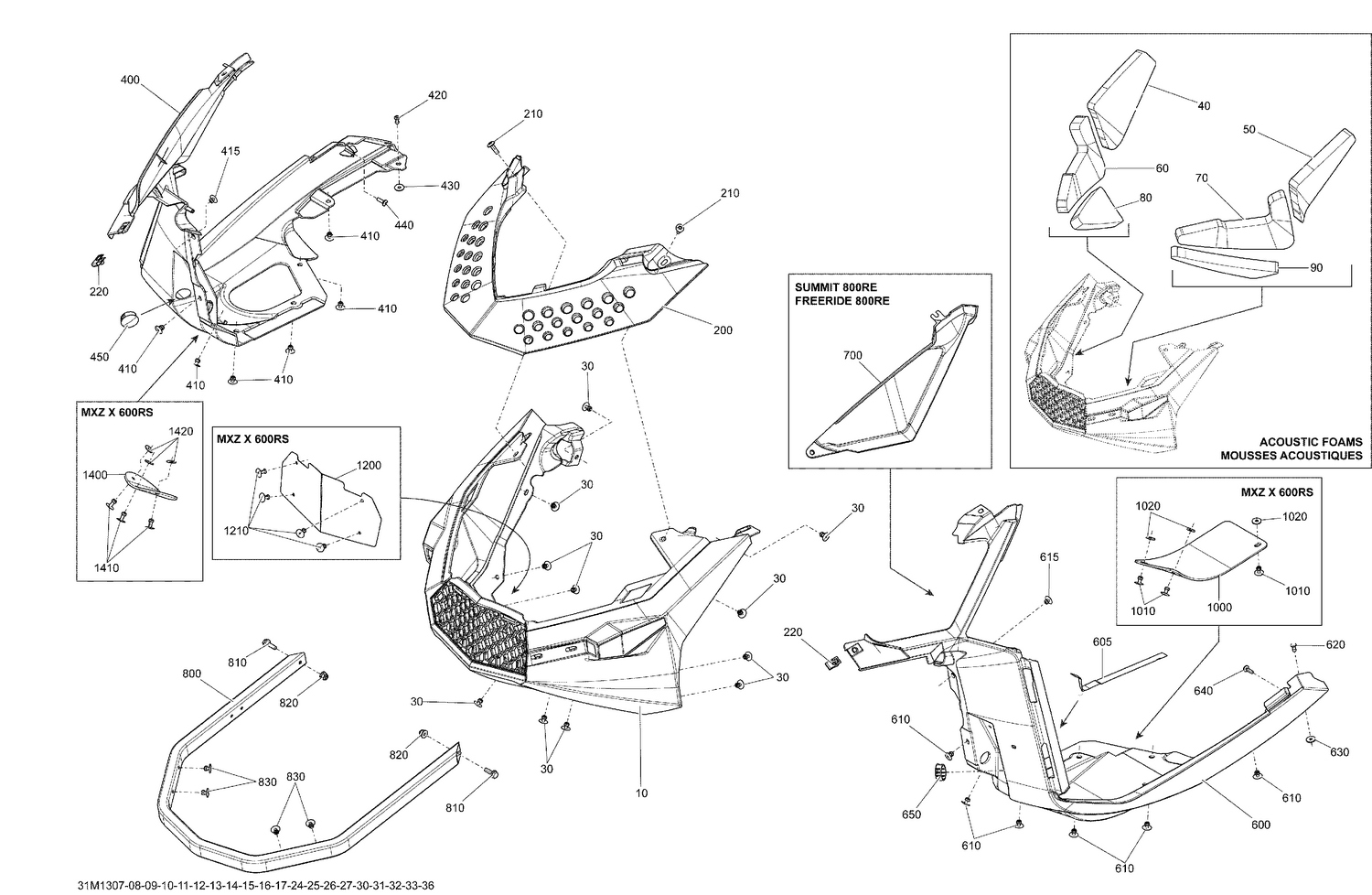

| Ref | Part Number | Description |
|---|
| 10 |
502007052 |
Front Bottom Pan, Yellow 2000 |
| 30 |
293150104 |
Pop Rivet 3/16" |
| 40 |
502007210 |
RH Foam Upper |
| 50 |
502007211 |
LH Foam Upper |
| 60 |
502007212 |
RH Middle Foam |
| 70 |
502007213 |
LH Middle Foam |
| 80 |
502007214 |
RH Lower Foam |
| 90 |
502007215 |
LH Lower Foam |
| 200 |
502007068 |
Deep Black Bottom Pan Cap |
| 210 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 220 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 400 |
502007119 |
RH BOTTOM PAN - Call your local BRP dealership |
| 410 |
293150104 |
Pop Rivet 3/16" |
| 415 |
293150103 |
Pop Rivet 3/16" |
| 420 |
293150104 |
Pop Rivet 3/16" |
| 430 |
517124300 |
Washer |
| 440 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 450 |
414916600 |
Black, Nylon Cap |
| 600 |
502007325 |
LH BOTTOM PAN - Call your local BRP dealership |
| 605 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 610 |
293150104 |
Pop Rivet 3/16" |
| 615 |
293150103 |
Pop Rivet 3/16" |
| 620 |
293150104 |
Pop Rivet 3/16" |
| 630 |
517124300 |
Washer |
| 640 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 650 |
414916600 |
Black, Nylon Cap |
| 700 |
XXX |
Not Available As Spare Parts |
| 800 |
502007116 |
Black Front Bumper |
| 810 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 820 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 830 |
293150104 |
Pop Rivet 3/16" |
| 1000 |
XXX |
Not Available As Spare Parts |
| 1010 |
XXX |
Not Available As Spare Parts |
| 1020 |
XXX |
Not Available As Spare Parts |
| 1200 |
XXX |
Not Available As Spare Parts |
| 1210 |
XXX |
Not Available As Spare Parts |
| 1400 |
XXX |
Not Available As Spare Parts |
| 1410 |
XXX |
Not Available As Spare Parts |
