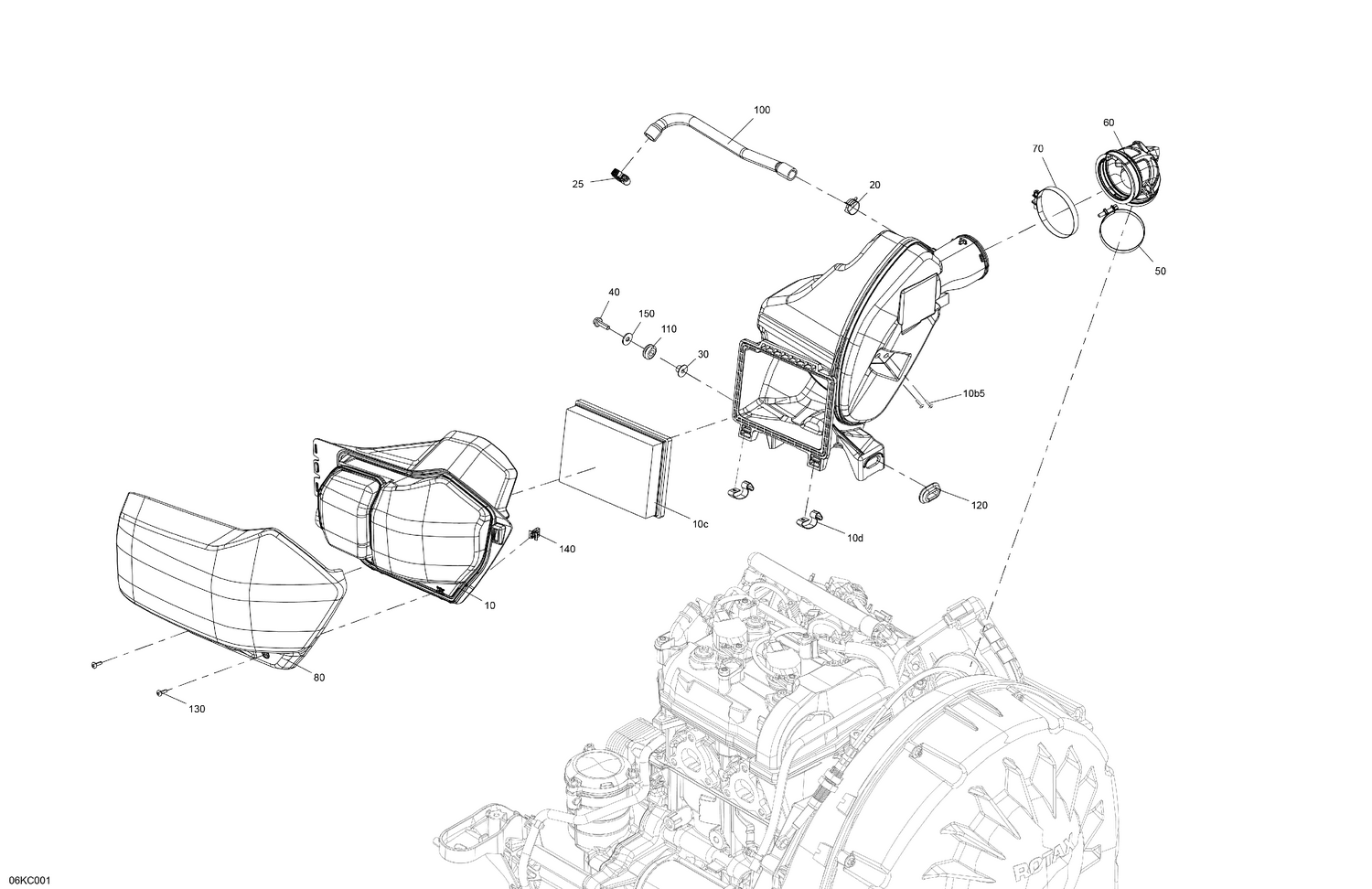

02- Engine - LH Air Intake
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707800700 | Air Intake Silencer |
| 10b5 | 250000759 | Torx Truss Pt K40 X 16 |
| 10c | 707800306 | Air Filter |
| 10d | 707800342 | Cover Retainer |
| 20 | 513033865 | Spring Clamp |
| 25 | 293650172 | Tridon Gear Clamp |
| 30 | 709001288 | Bushing |
| 40 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 50 | 293650229 | Gemi Clamp |
| 60 | 707800712 | Air Intake Silencer Adaptor |
| 70 | 508000150 | Gemi Clamp |
| 80 | 707801015 | Lateral Cover |
| 100 | 707800709 | Formed Hose |
| 110 | 709001197 | Grommet |
| 120 | 517307638 | Oval Grommet |
| 130 | 250000759 | Torx Truss Pt K40 X 16 |
| 140 | 517302785 | Edge Clip |
