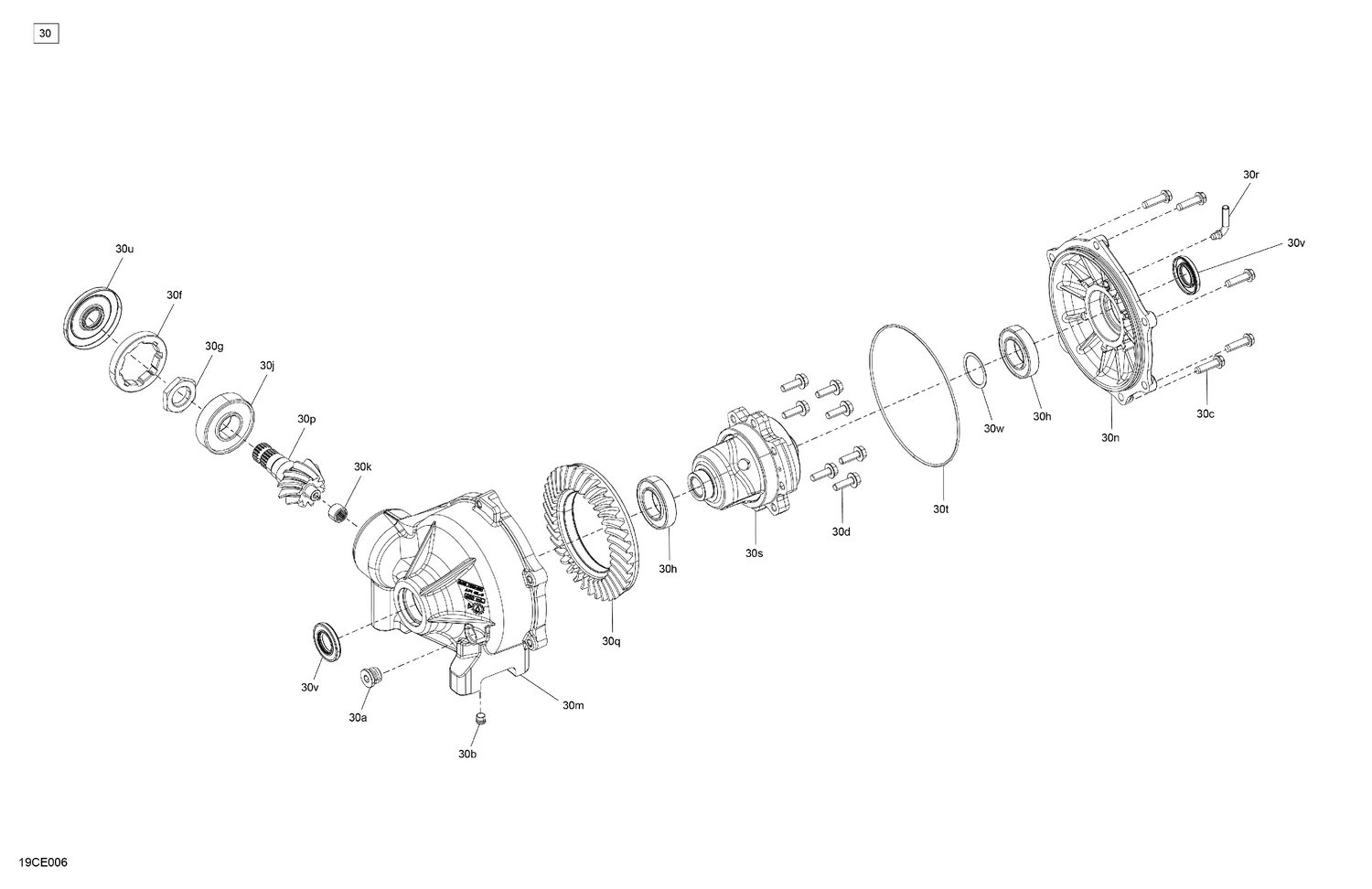

04- Drive - Front - Differential Parts
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705501889 | Fill Level Plug |
| 30b | 705501885 | Drain Plug |
| 30c | 705501886 | Bolt |
| 30d | 705403382 | Hex Flange Screw Serrated M8 X 25 |
| 30f | 705401819 | Nut M75 X 1.5 |
| 30g | 705401820 | Nut M27 X 1.5 |
| 30h | 705402847 | Ball Bearing |
| 30j | 705401821 | Ball Bearing |
| 30k | 705402848 | Ball Bearing |
| 30m | 705402765 | Sprocket Cover |
| 30n | 705403704 | Machined Differential Cover |
| 30p | 705403703 | Final Drive Pinion 10 Teeth |
| 30q | 705403702 | Gear 36 Teeth |
| 30r | 705401935 | Vent Valve |
| 30s | 705403895 | Differential Kit |
| 30t | 705501881 | Oil Seal iDIA 6.737 oDIA 6.943 |
| 30u | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 |
| 30v | 705401836 | Oil Seal |
