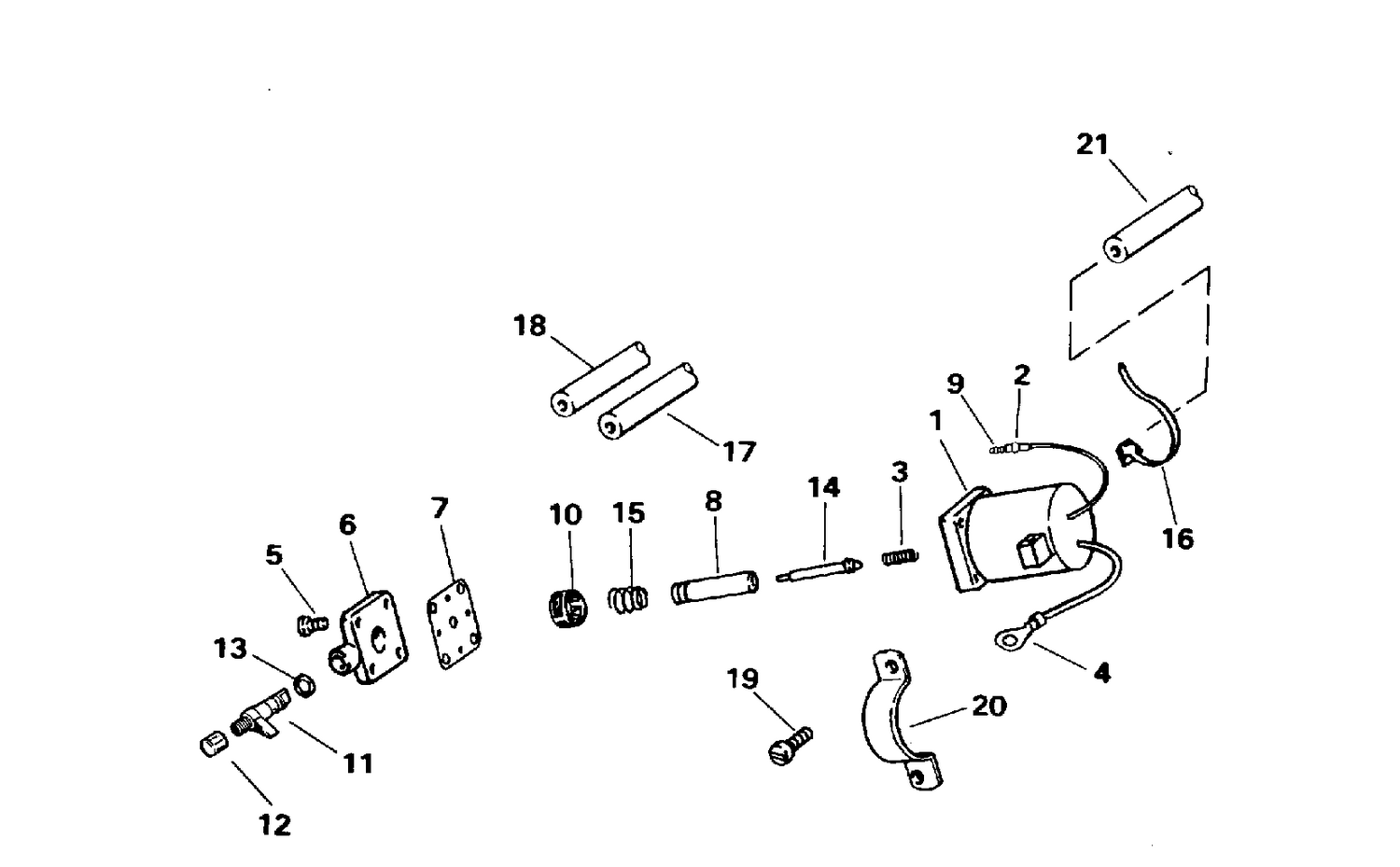

PRIMER SYSTEM

PRIMER SYSTEM

Parts (6)

RefPart NumberDescription
1 5007356 Kit Ay This part replaces 0434762.
6 0511807 COVER&GASKET AY
7 0333448 GASKET
17 HOSE, Primer solenoid to lower carb., 9 1/2 in. (241mm)
18 HOSE, Primer solenoid to upper carb., 14 in. (356mm)
20 0330118 CLAMP
