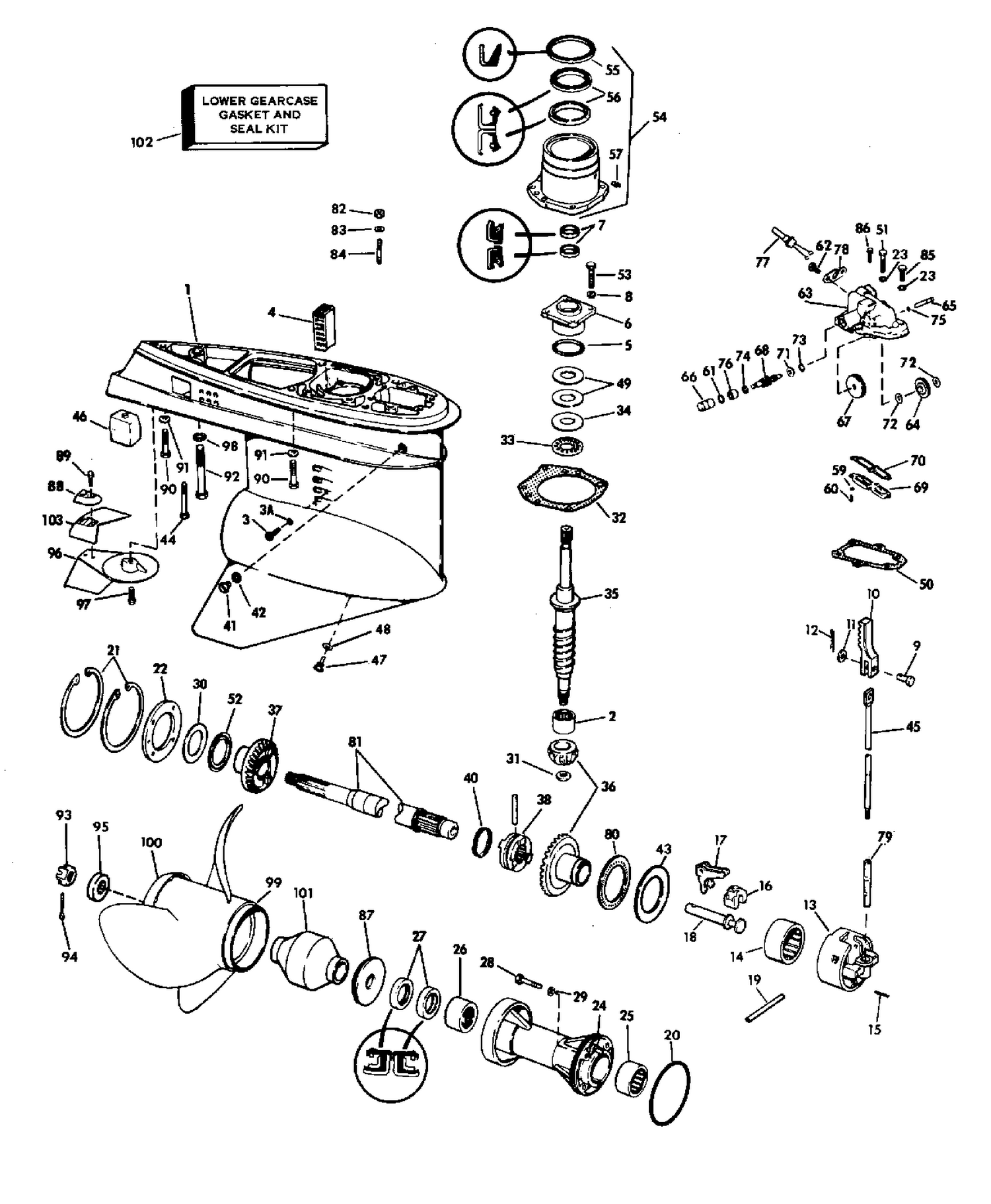

| Ref | Part Number | Description |
|---|
| 1 |
0391329 |
GEARCASE & BEARING ASSY This part replaces 0982562. |
| 3A |
0307853 |
O RING |
| 6 |
0982422 |
BEARING HOUSING & SEAL |
| 9 |
0910539 |
PIN, rack to shaft rod |
| 10 |
0910311 |
RACK, Shift rod |
| 11 |
0306358 |
FLAT WASHER, Helm mounting |
| 20 |
0305123 |
O RING This part replaces 0321119. |
| 21 |
0321171 |
RETAINING RING |
| 24 |
0387374 |
BEARING HOUISNG & SEAL ASSY |
| 28 |
0316563 |
SCREW |
| 29 |
0317178 |
O RING |
| 32 |
0910236 |
GASKET |
| 35 |
0982424 |
DRIVESHAFT ASSY |
| 37 |
0910994 |
GEAR, Reverse |
| 45 |
0910309 |
SHIFT ROD |
| 49 |
0314742 |
SHIM BEARING HOUSING |
| 54 |
0982439 |
SWIVEL BEARING RETAINER & BUSHING |
| 58 |
0982561 |
SHIFT ASSY |
| 63 |
0982789 |
SHIFT HOUSING & SUPPORT ASSY |
| 77 |
0982563 |
CABLE ASSY |
| 79 |
0910310 |
DETENT, Shifter |
| 81 |
0982416 |
PROP SFT SPR & GUIDE ASSY |
| 83 |
0329241 |
RONDELLE This part replaces 0305981. |
| 84 |
0910551 |
STUD |
| 85 |
0329894 |
SCREW |
| 87 |
0333592 |
THRUST BUSHING This part replaces 0321173. |
| 88 |
0909548 |
CLAMP, Ext rudder |
| 89 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 90 |
0552898 |
SCR,Grc to hsg,short |
| 91 |
0307708 |
RONDELLE GROWER |
| 92 |
0313697 |
SCR,Grc to hsg.long |
| 94 |
0309955 |
COT PIN,Prop nut |
| 96 |
0909779 |
TRIM TAB, Gearcase |
| 97 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 98 |
0306314 |
L'WASHER,Scr,long |
| 99 |
0389019 |
PROP, 14-1/2 x 23 SST |
| 99 |
0389923 |
PROP, 14-1/2 x 21 SST |
| 99 |
0389924 |
PROP, 14-1/2 x 19 SST |
| 99 |
0389925 |
PROP, 15 x 16 SST |
| 99 |
0390725 |
PROP, 14 x 25 SST |
| 99 |
0390831 |
PROP, 14-1/2 x 14 SST |
| 99 |
0391201 |
PROP, 14-1/2 x 19 |
| 99 |
0391202 |
PROP, 14-1/2 x 21 |
| 99 |
0391203 |
BEARING ASSY,Rear,std |
| 99 |
0391290 |
PROP, 15 x 17 SST |
| 99 |
0391535 |
PROP, 15-1/2 x 15 |
| 99 |
0391536 |
PROP, 15-1/2 x 13 |
| 99 |
0765187 |
PROPELLER, WDEX Models This part replaces 0391200. |
| 102 |
0982946 |
LOWER GEARCASE GASKET & SEAL KIT |
| 222 |
0321174 |
PLUG, Large |
| 0982571 |
0982571 |
GEARCASE ASST,Complete |
