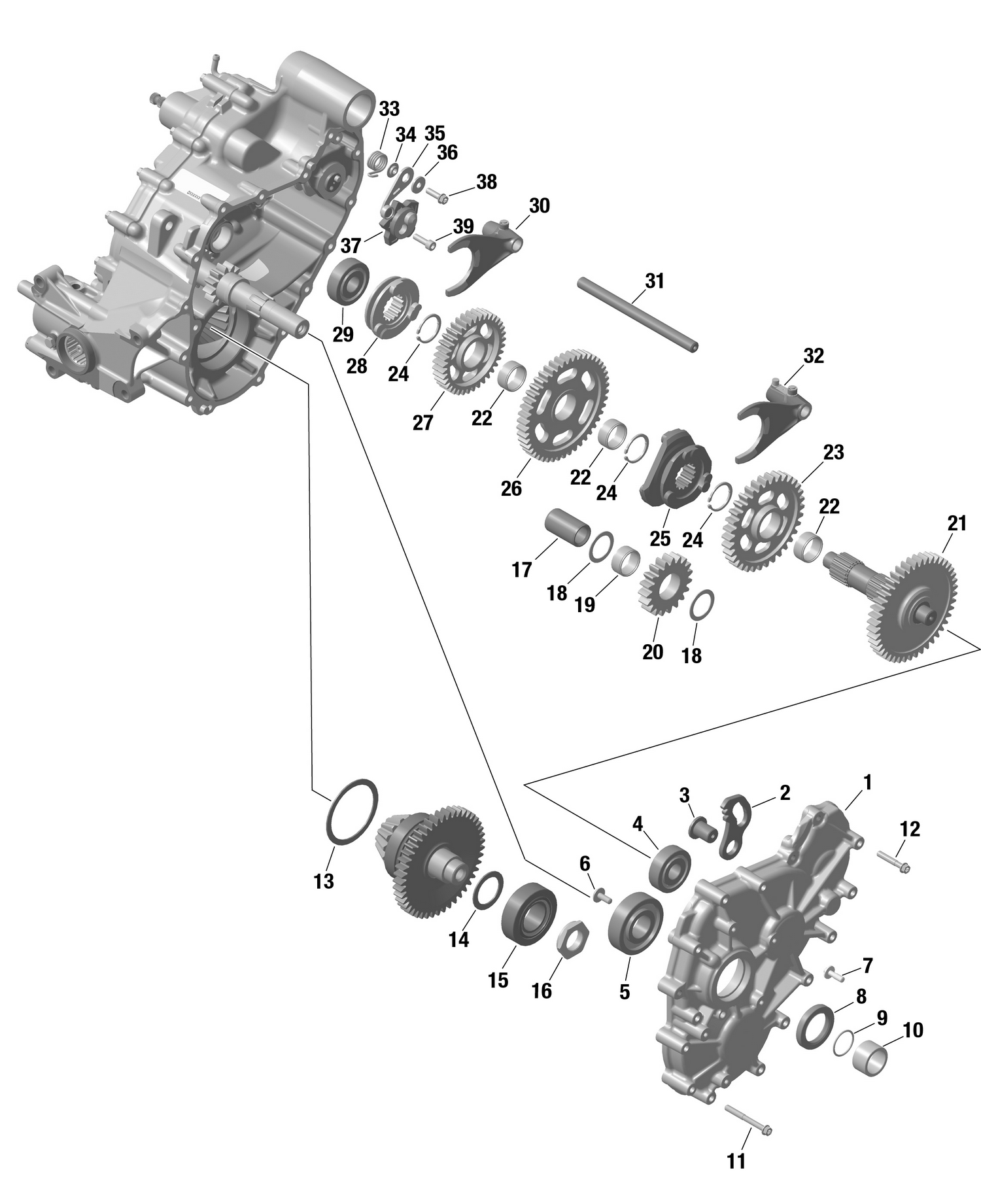

01- ROTAX - GEARBOX 2
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | XXX | Not Available As Spare Parts |
| 2 | 420257654 | Parking Lock Lever |
| 3 | 420647123 | Collar Sleeve |
| 4 | 420932816 | Ball Bearing |
| 5 | 420932822 | Ball Bearing This part replaces 420932823. |
| 6 | 420240051 | Torx Screw M6X13 |
| 7 | 420441433 | Distance Screw M6 This part replaces 420441431. |
| 8 | 420950089 | Oil Seal |
| 9 | 420631612 | O-Ring |
| 10 | 420647267 | Distance Ring This part replaces 420647262. |
| 11 | 420440702 | Torx Flange Screw M6 X 55 |
| 12 | 420440274 | Torx Flange Screw M6 X 35 |
| 13 | XXX | Not Available As Spare Parts |
| 14 | XXX | Not Available As Spare Parts |
| 15 | XXX | Not Available As Spare Parts |
| 16 | XXX | Not Available As Spare Parts |
| 17 | 420620688 | Intermediate Gear Shaft |
| 18 | 420427011 | Thrust Washer |
| 19 | 420932930 | Needle Bearing |
| 20 | 420434588 | Intermediate Gear, 19 Teeth |
| 21 | 420637044 | Main Shaft This part replaces 420637047. |
| 22 | 420632070 | Needle Bearing |
| 23 | 420434873 | Gear Pinion, 34 Teeth |
| 24 | 420845772 | Retaining Ring |
| 25 | 420257954 | Shifting Sleeve |
| 26 | 420434865 | Gear Pinion, 46 Teeth |
| 27 | 420434857 | Gear Pinion, 36 Teeth |
| 28 | 420257945 | Shifting Sleeve |
| 29 | XXX | Not Available As Spare Parts |
| 30 | 420657365 | Shift Fork |
| 31 | 420258394 | Pivot This part replaces 420258388. |
| 32 | 420258515 | Shift Fork Ass'y |
| 33 | 420248533 | Index Lever |
| 34 | XXX | Not Available As Spare Parts |
| 35 | XXX | Not Available As Spare Parts |
| 36 | XXX | Not Available As Spare Parts |
| 37 | XXX | Not Available As Spare Parts |
| 38 | 420441835 | Torx Flange Screw M6 X 20 |
