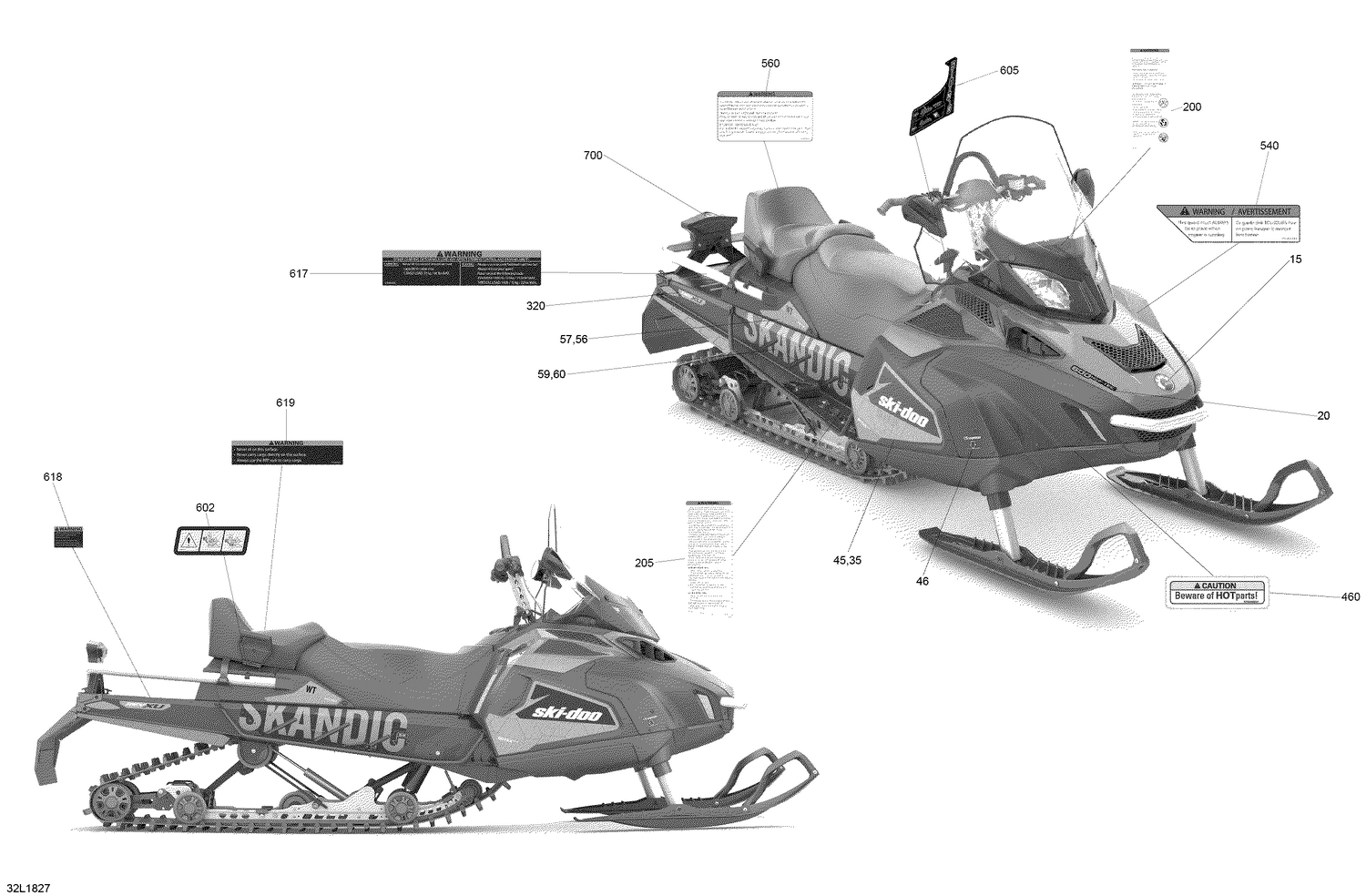

09- Decals Scandic - 600 ACE
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm This part replaces 516006888. |
| 20 | 516004360 | Hood Decal "Rotax 600 Ace" |
| 35 | 516007158 | LH Side Panel Decal |
| 45 | 516007159 | RH Side Panel Decal |
| 46 | 516007160 | Decal " LTS Suspension " |
| 56 | 516007163 | LH Storage Box Decal |
| 57 | 516007164 | RH Storage Box Decal |
| 59 | 516007166 | RH Frame Decal |
| 60 | 516007165 | DECAL, FRAME LH - Call your local BRP dealership |
| 200 | 516004652 | Warning Decal |
| 205 | 516004653 | Warning Decal |
| 320 | 516007167 | REV XU Decal |
| 460 | 516006903 | Hot Parts Decal |
| 540 | 516005683 | Security label, drive pulley cover |
| 560 | 516005682 | DECAL WARNING - Call your local BRP dealership |
| 602 | 516005111 | Instruction Decal, Back Seat Locking |
| 605 | 516004305 | Instruction Label, Transmission |
| 617 | 516004960 | Rear Security Decal, English |
| 618 | 516007583 | Rotating Track Warning Decal |
| 619 | 516004961 | Security Decal |
