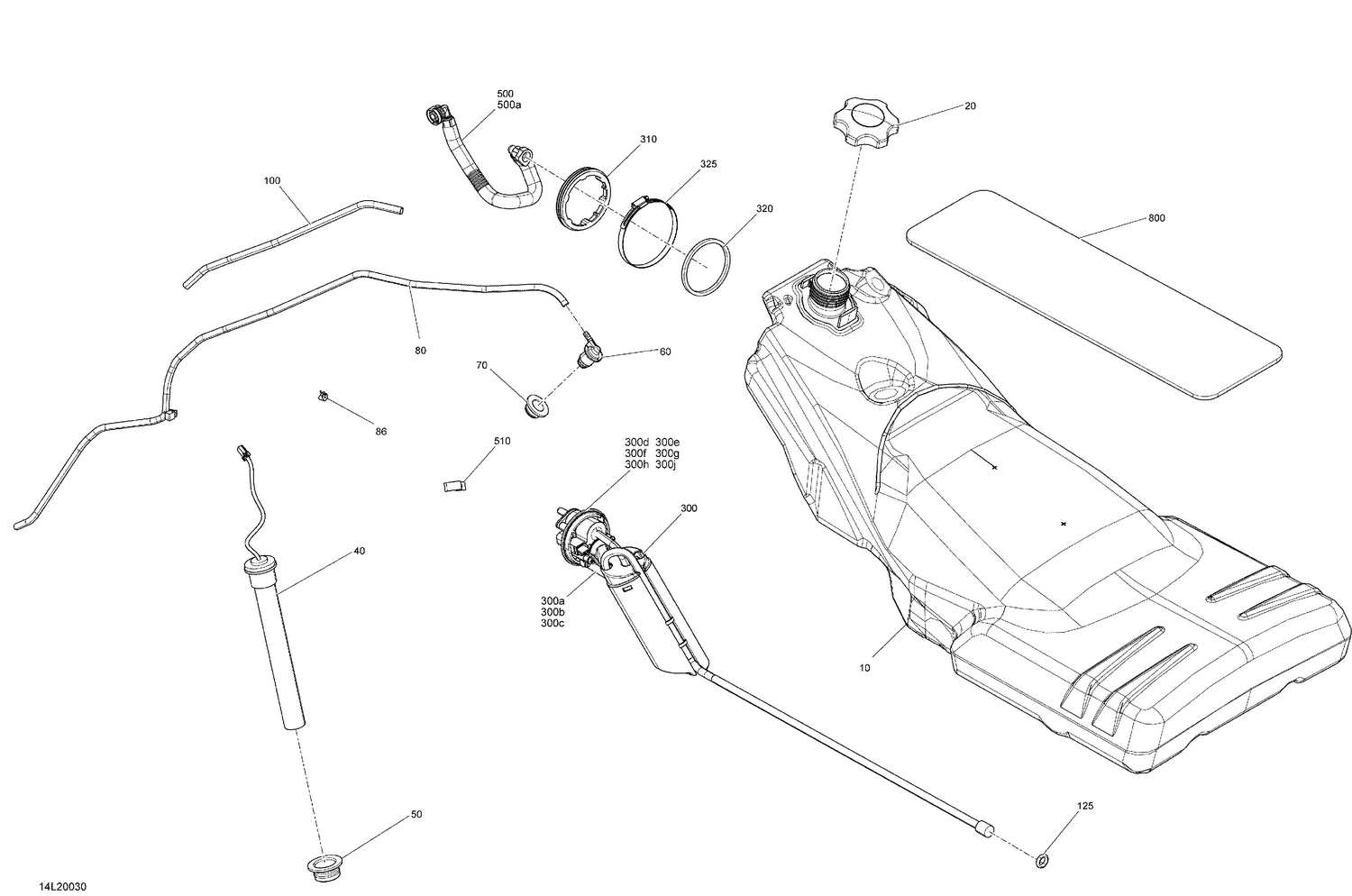

02- Engine - Fuel
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513033757 | Fuel Tank |
| 20 | 513034170 | Fuel Tank Cap This part replaces 513033943. |
| 40 | 513033902 | Fuel Sensor |
| 50 | 293720113 | Grommet |
| 60 | 513033842 | Check Valve |
| 70 | 513033596 | Grommet |
| 80 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 86 | 414554800 | Jousikiristin |
| 100 | 504153468 | Protector Tube 9.53mm - 400mm |
| 125 | 293300184 | Grommet |
| 300a | 415129509 | O-Ring |
| 300b | 415129510 | Fuel Filter |
| 300c | 415129511 | O-Ring |
| 300d | 415129512 | Wave Washer |
| 300e | 415129513 | Screw |
| 300f | 415129685 | Cover |
| 300g | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 300h | 415129451 | Fuel filter (in tank, fuel pump) |
| 300j | 414872100 | Fuel filter (in tank, fuel line) |
| 310 | 513033180 | Plastic nut |
| 320 | 513033334 | Tiiviste |
| 325 | 513033628 | Clamp |
| 500a | 513033135 | Locking Clip |
| 510 | 293850125 | Open Clamp |
