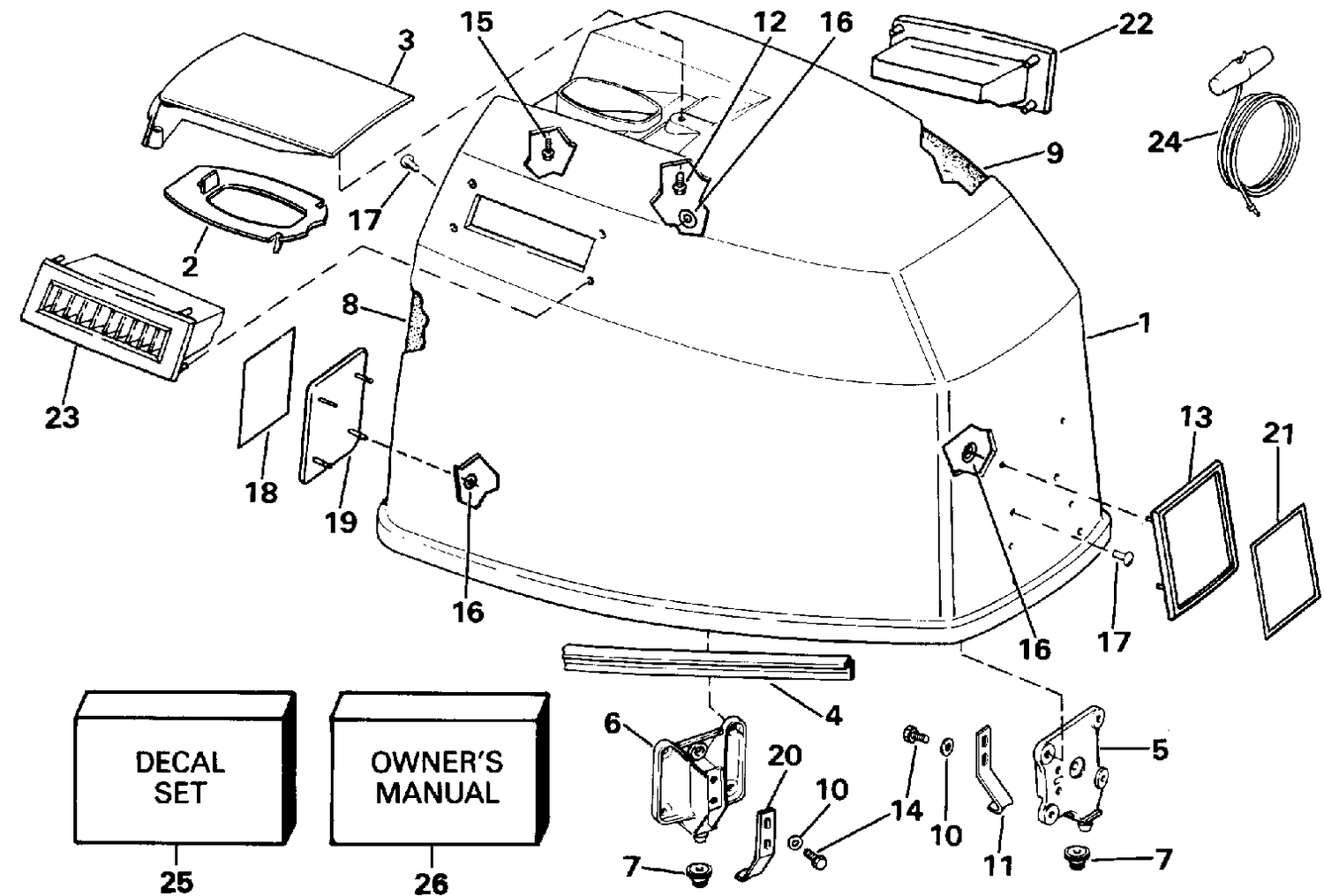

| Ref | Part Number | Description |
|---|
| 1 |
0433887 |
ENGINE COVER ASSY., 88 |
| 1 |
0433888 |
ENGINE COVER ASSY., 100 |
| 1 |
0433889 |
ENGINE COVER ASSY., 90 |
| 1 |
0433890 |
ENGINE COVER ASSY., 90 |
| 1 |
0433891 |
ENGINE COVER ASSY., 115 |
| 1 |
0433892 |
ENGINE COVER ASSY., 115 |
| 1 |
0434558 |
ENGINE COVER ASSY., 90 |
| 1 |
0434559 |
ENGINE COVER ASSY., 115 |
| 1 |
0434573 |
ENGINE COVER ASSY., 115 Jet, (80) |
| 1 |
0434574 |
ENGINE COVER ASSY., 90 Jet, (65) |
| 4 |
0329548 |
SEAL |
| 5 |
0389971 |
LOCATING BARCKET, Front |
| 6 |
0394976 |
LOCATING BRACKET, Rear |
| 8 |
0341534 |
SOUND BLANKET, Side This part replaces 0208509. |
| 8 |
0911532 |
SOUND BLANKET, Side, 100 |
| 9 |
0208510 |
SOUND BLANKET, Top |
| 9 |
0911531 |
SOUND BLANKET, Top, 100 |
| 11 |
0323175 |
HOOK , Motor Cover, Front |
| 13 |
0331420 |
APPLIQUE, Engine cover |
| 13 |
0335035 |
APPLIQUE, Front |
| 18 |
0335263 |
PLATE, Frame, front, 88 |
| 19 |
0331420 |
APPLIQUE, Engine cover |
| 21 |
0335942 |
PLATE, Frame, front |
| 21 |
0335944 |
PLATE, Frame, front |
| 22 |
0432828 |
AIR INLET, Port |
| 23 |
0398445 |
AIR INLET, Star This part replaces 0432829. |
| 24 |
0378347 |
CORDE DE LANCEUR |
| 25 |
0433650 |
DECAL SET, 88 models |
| 25 |
0435358 |
DECAL SET, 90 models |
| 25 |
0435359 |
DECAL SET, 90, 115 |
| 25 |
0435360 |
DECAL SET, 90 Jet |
| 25 |
0435362 |
DECAL SET, 115 models |
| 25 |
0435637 |
DECAL SET, 100 models This part replaces 0435361. |
| 26 |
0434339 |
OWNER'S MANUAL, 90/100/115 |
| 26 |
0434462 |
OWNER'S MANUAL, 88 models |
