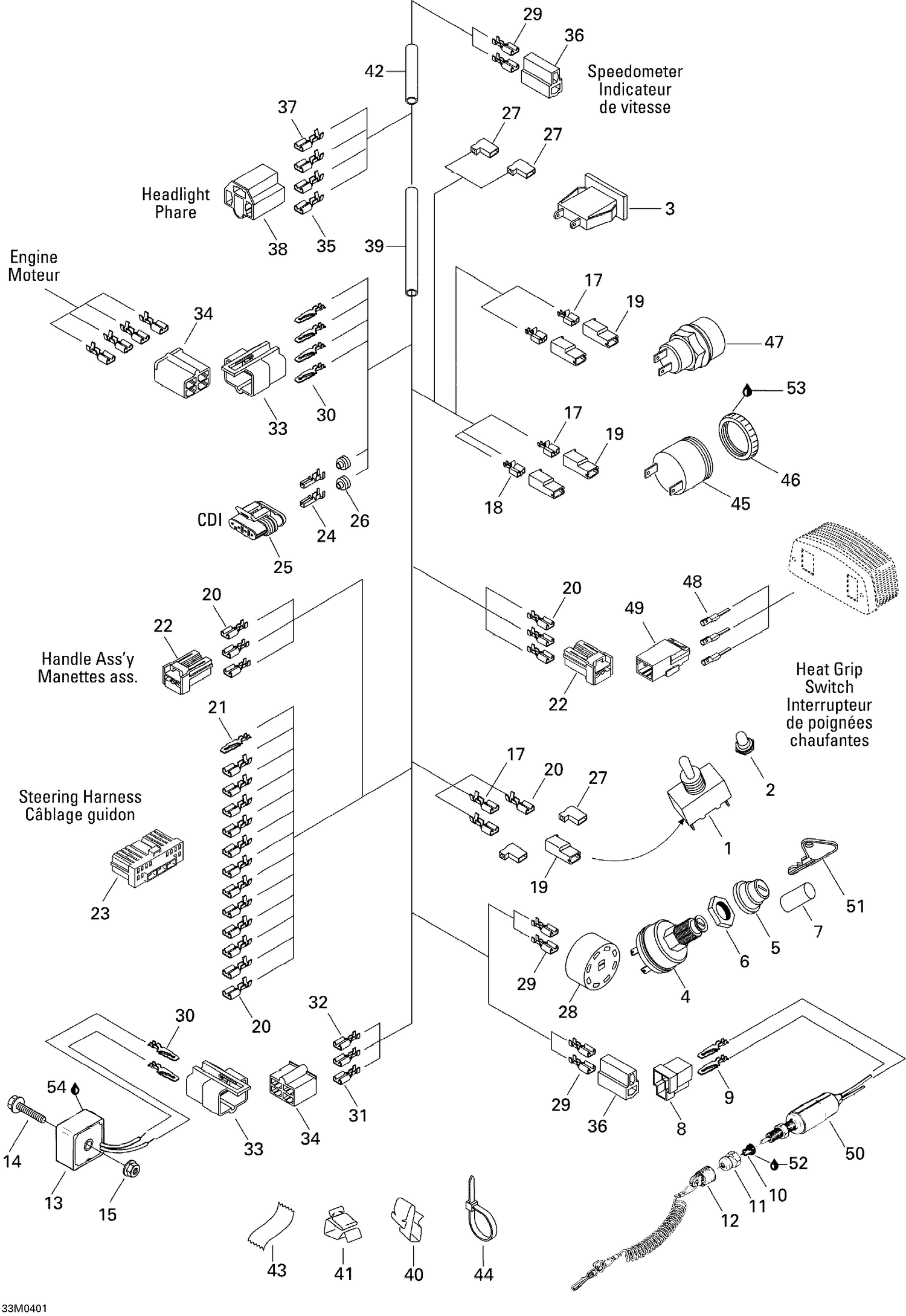

| Ref | Part Number | Description |
|---|
| 1 |
410107300 |
Switch (Heating Grip) |
| 2 |
515175281 |
Switch Cover |
| 3 |
410113400 |
PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership |
| 4 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113601. |
| 5 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 6 |
570013700 |
Switch Boot |
| 7 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 8 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| 9 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 10 |
570151100 |
Plunger Cap |
| 11 |
515145900 |
Switch Nut |
| 12 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 13 |
515163800 |
VOLTAGE REGULATOR - Call your local BRP dealership |
| 14 |
207063544 |
Hex. Flange Screw M6 X 35 |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 17 |
409010100 |
Female Terminal |
| 18 |
409010600 |
FEMALE TERMINAL - Call your local BRP dealership |
| 19 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 20 |
515175231 |
Female Terminal |
| 21 |
515175282 |
Female Terminal |
| 22 |
515175495 |
Female Housing, 3 Circuits |
| 23 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 24 |
278001014 |
Female Terminal |
| 25 |
409209700 |
Female Housing, 4 Circuits |
| 26 |
278001013 |
Wire Seal |
| 27 |
409010300 |
Female Terminal |
| 28 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 29 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 30 |
409210100 |
Clip Bracket Connector (edge) |
| 31 |
515175253 |
FEMALE TERMINAL - Call your local BRP dealership |
| 32 |
515175313 |
FEMALE TERMINAL - Call your local BRP dealership |
| 33 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 34 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 35 |
409011500 |
FEMALE TERMINAL - Call your local BRP dealership |
| 36 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 37 |
515175320 |
FEMALE TERMINAL - Call your local BRP dealership |
| 38 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 39 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 40 |
414095100 |
Clip |
| 41 |
414227300 |
Clip |
| 42 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 43 |
293740005 |
Tape |
| 44 |
414115200 |
Tie-Rap 180 mm |
| 45 |
515176035 |
HORN - Call your local BRP dealership This part replaces 515175931. |
| 46 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 47 |
415130372 |
Push Button This part replaces 415101200. |
| 48 |
515175232 |
Male Terminal |
| 49 |
515175494 |
Male Housing, 3 Circuits |
| 50 |
515175653 |
Brake Switch This part replaces 515175571. |
| 51 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 52 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 53 |
296000309 |
Silicone Sealant 51388, 300 ml |
