Parts Catalog

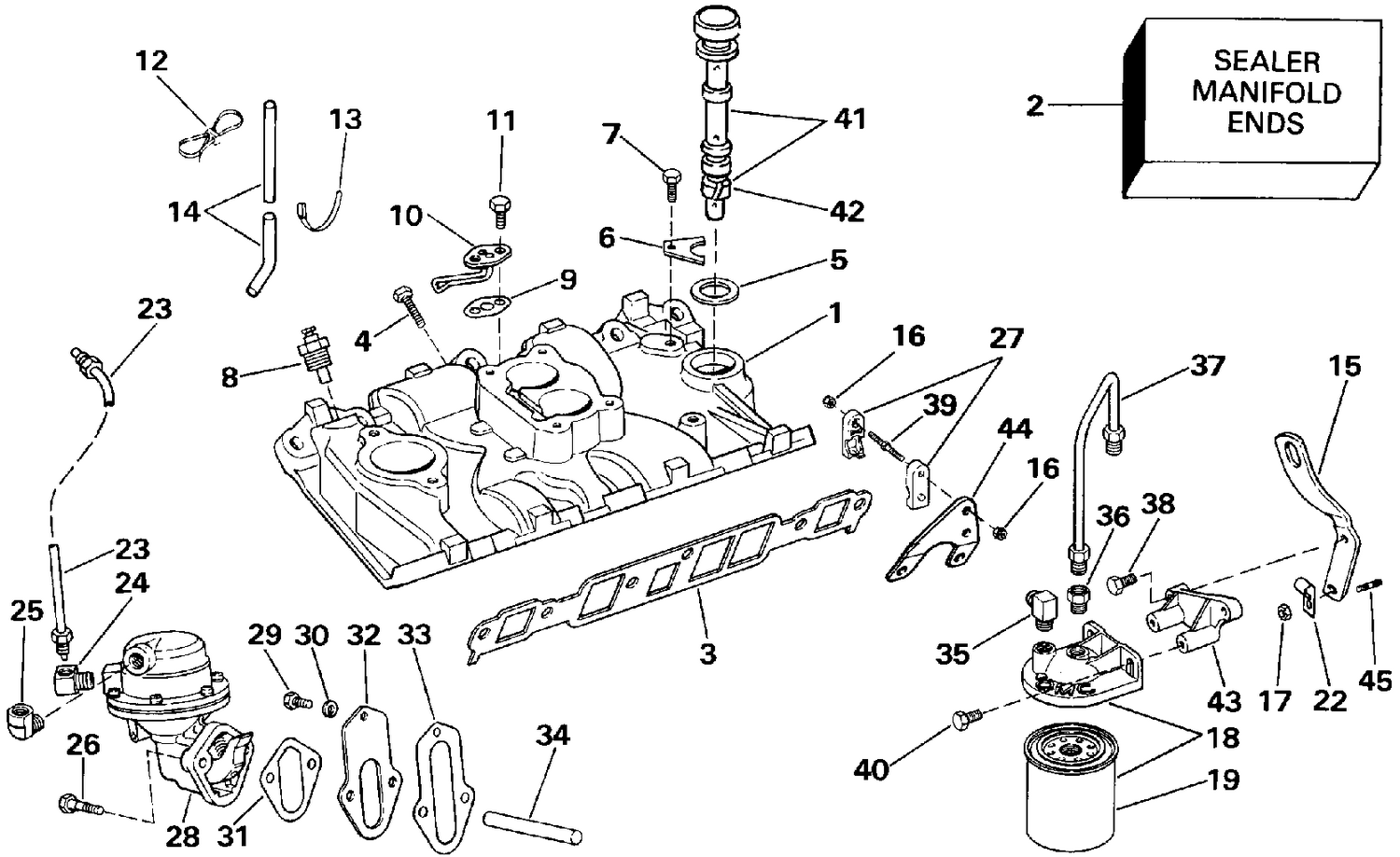

INTAKE MANIFOLD & FUEL PUMP

Parts (42)

Ref	Part Number	Description
1	0910997	MANBIOLD,Intake
1	0983874	MANIFOLD, Intake
2	0914372	SEALER, Manifold ends
3	0912978	GASKET SET, Manifold
3	0912979	GASKET SET, Manifold
4	3853370	Cover This part replaces 0912972.
4	3856129	BOLT, Intake manifold, short This part replaces 0914407.
5	0312780	GASKET, Dist. to manifold
6	3852108	CLAMP, Distributor This part replaces 0312778.
7	3853325	SCREW, Clamp to engine This part replaces 0914761.
8	0171960	SENDER, Water temperature
9	0914371	GASKET, Choke tube
10	0913588	CHOKE TUBE ASSY.
11	3853167	BOLT, Water pump This part replaces 0914369.
13	0320107	ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
14	HOSE,	Overflow, 31" (787mm)
15	3853311	BRACKET, Lift This part replaces 0914678.
17	3853404	NUT, Exhaust manifold This part replaces 0915013.
18	0174176	FUEL FILTER & BRACKET ASSY
22	3852458	CLAMP, Oil drain tube This part replaces 0908924.
23	0986870	FUEL LINE ASSY., Pump to carb.
23	0986982	FUEL LINE ASSY., Pump to carb.
24	3852453	FITTING, Cover, return line This part replaces 0908644.
25	3852525	FITTING, Fuel pump This part replaces 0911455.
26	0910164	SCREW, Pump mounting
27	3852836	ANCHOR BLOCK This part replaces 0913795.
28	0982997	FUEL PUMP ASSY
29	0306487	SCREW
31	0311064	GASKET, Fuel pump
32	0910112	PLATE, Fuel pump mounting
33	0910102	GASKET, Plate to engine
34	0913299	PUSH ROD, Fuel pump
35	0174179	ELBOW, Filter inlet
36	0908951	FITTING, Filter outlet
37	0986847	FUEL LINE, Filter to pump
38	3853326	SCREW, Bracket to engine This part replaces 0914764.
39	3850682	STUD, Anchor block This part replaces 0914682.
40	3853266	BOLT, Distributor This part replaces 0914544.
41	0986130	SHAFT & GEAR
42	3853888	GEAR, Collar & parts pkg. This part replaces 0986061.
43	3853310	BRACKET, Fuel filter This part replaces 0914677.
44	0914937	BRACKET, Throttle anchor
