Home / BRP / STERN DRIVE / 1991 / 7.40 / 744APERGD 1991 / INTAKE MANIFOLD & FUEL PUMP

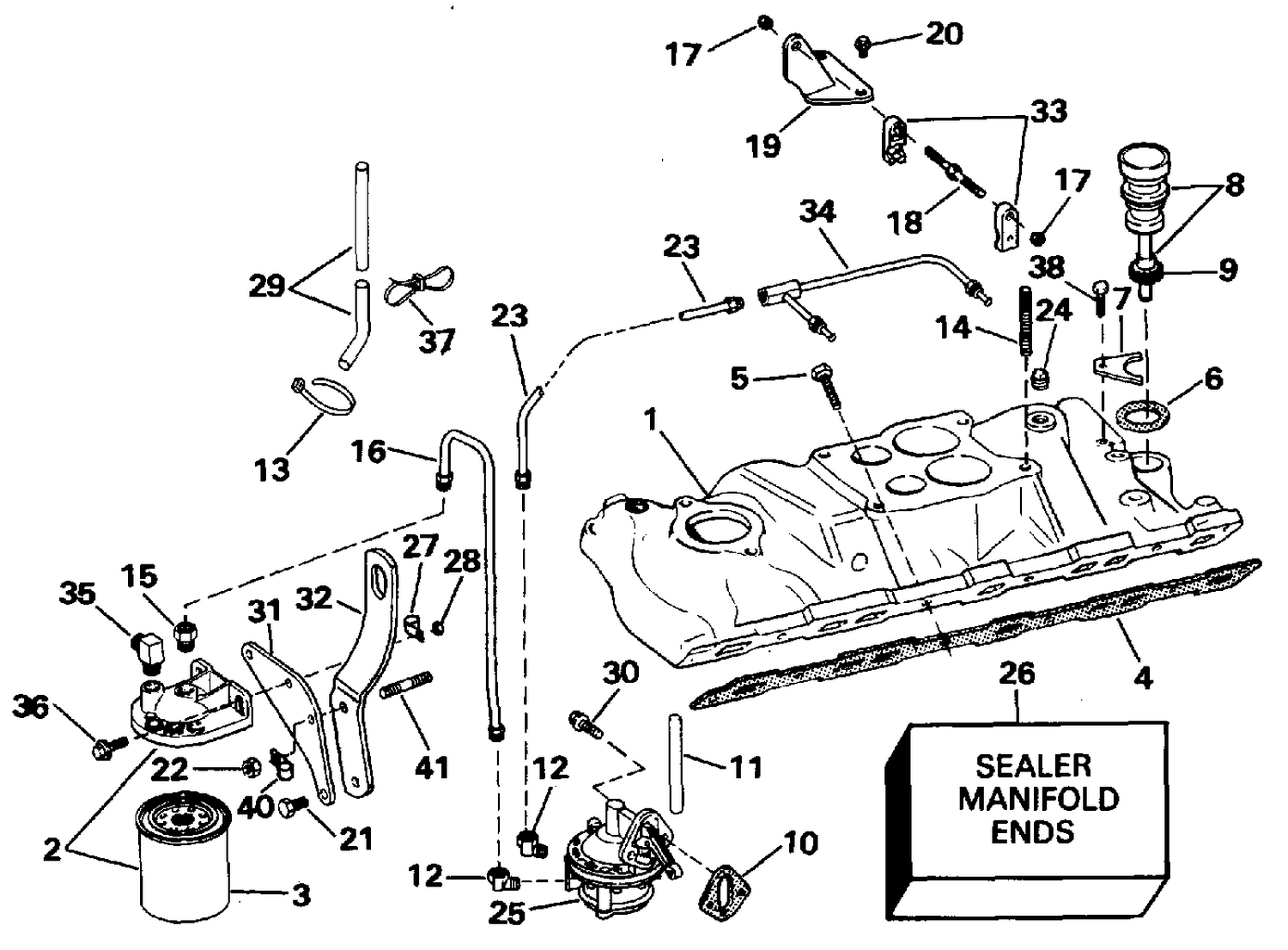

INTAKE MANIFOLD & FUEL PUMP

INTAKE MANIFOLD & FUEL PUMP

Parts (40)

RefPart NumberDescription
1 0986073 MANIFOLD, Intake
1 3854100 MANIFOLD, Intake This part replaces 0987203.
2 0174176 FUEL FILTER & BRACKET ASSY
4 0913697 GASKET SET, Manifold
4 0915243 GASKET SET, Manifold
5 0551094 BOLT, Manifold to head
6 0312780 GASKET, Dist. to manifold
7 3852108 CLAMP, Distributor This part replaces 0312778.
8 0986130 SHAFT & GEAR
9 3853888 GEAR, Collar & parts pkg. This part replaces 0982337.
10 0311064 GASKET, Fuel pump
11 3852112 PUSH ROD, Fuel pump This part replaces 0312799.
12 3852525 FITTING, Fuel pump This part replaces 0911455.
13 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
14 3853373 STUD, Carb. to adaptor This part replaces 0914939.
15 0908951 FITTING, Filter outlet
16 0986358 FUEL LINE, Filter to pump
18 3850682 STUD, Anchor block This part replaces 0914682.
19 0914599 ANCHOR BRACKET
19 0915134 BRACKET, Throttle cable
20 0309942 SCREW, Anchor bracket
21 3853154 SCREW, Bracket to cylinder head This part replaces 0914349.
22 3853404 NUT, Exhaust manifold This part replaces 0915013.
23 0986359 FUEL LINE, Fuel pump to fuel line
23 0987089 FUEL LINE, Fuel pump to carb.
24 3852666 PLUG, Intake manifold This part replaces 0912993.
25 0986357 FUEL PUMP ASSY
26 0914372 SEALER, Manifold ends
27 3853261 CLAMP, Fuel line This part replaces 0914531.
28 0314898 L'NUT, Stud, alt frt
29 0909938 HOSE, Fuel overflow
30 3853266 BOLT, Distributor This part replaces 0914544.
31 0915132 BRACKET, Fuel filter
32 3854377 BRACKET, Cylinder head This part replaces 0914543.
33 3852836 ANCHOR BLOCK This part replaces 0913795.
34 0986468 FUEL LINE, Fuel line to carb.
35 0174179 ELBOW, Filter inlet
36 3853326 SCREW, Bracket to engine This part replaces 0914764.
38 3853325 SCREW, Clamp to engine This part replaces 0914761.
40 0912782 CLAMP, Fuel line
