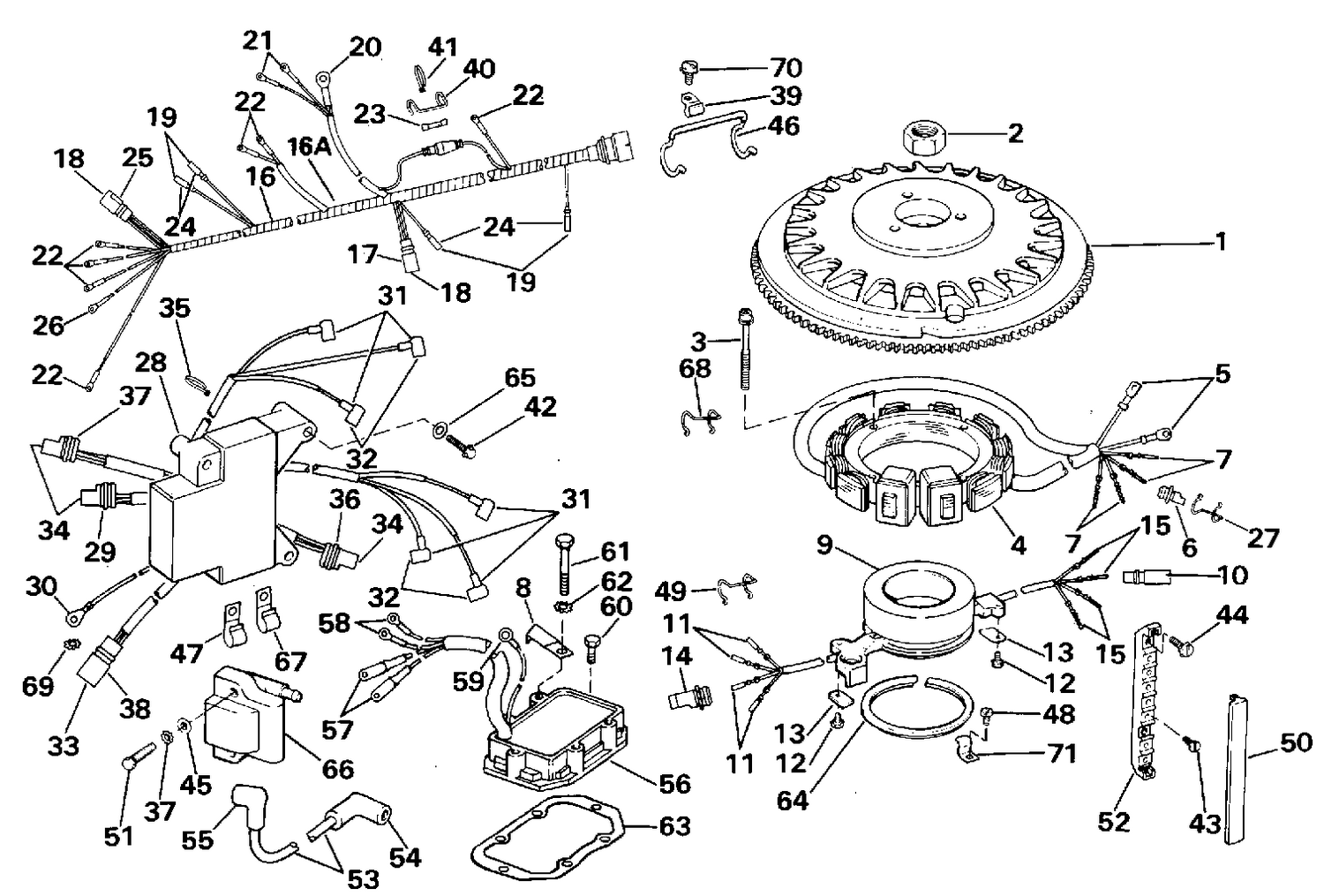

| Ref | Part Number | Description |
|---|
| 1 |
0583844 |
FLYWHEEL ASSY. |
| 2 |
0323599 |
LOCKNUT |
| 3 |
0512321 |
SCREW, Stator mount 175, 185, 235 |
| 4 |
0583710 |
STATOR ASSY. |
| 6 |
0513201 |
CONNECTOR |
| 9 |
0583853 |
TIMER BASE & SENSOR ASSY. |
| 13 |
0511387 |
CLAMP |
| 16 |
0583852 |
ENGINE CABLE ASSY. |
| 27 |
0513239 |
Retainer, 6 Terminal Connector |
| 28 |
0583865 |
POWER PACK |
| 29 |
0513202 |
CONNECTOR |
| 41 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 42 |
0331980 |
SCREW, Bracket, port |
| 43 |
0329182 |
VIS, borne |
| 44 |
0306644 |
VIS, capteur de papillon |
| 47 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 49 |
0512743 |
DISPOSITIF DE RETENUE |
| 50 |
0432297 |
COVER ASSY. |
| 51 |
0328726 |
SCREW (Use existing coil screw) |
| 52 |
0326255 |
LEVER, Choke knob |
| 53 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 56 |
0395204 |
RECTIFIER & REGULATOR |
| 60 |
0306409 |
VIS, collecteur vers carter-moteur |
| 61 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 63 |
0322858 |
GASKET |
| 64 |
0313666 |
RET., Distributor base 1 |
| 66 |
0582508 |
COIL ASSY |
| 67 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 68 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
