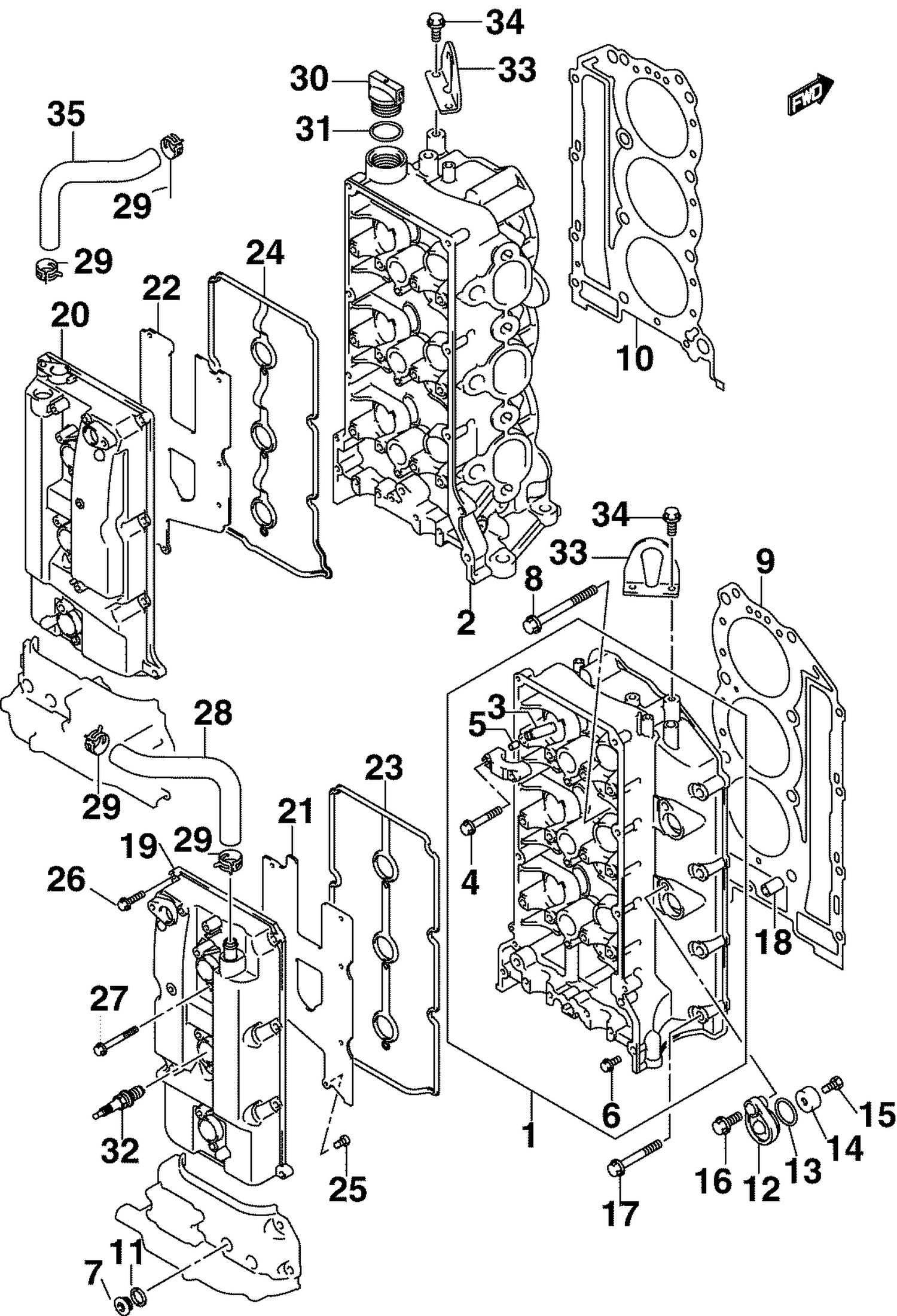

CYLINDER HEAD
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034846 | HEAD ASSY, CYLINDER STBD |
| 2 | 5034847 | HEAD ASSY, CYLINDER PORT |
| 7 | 5034850 | PLUG |
| 8 | 5034852 | BOLT |
| 11 | 5034865 | GASKET |
| 12 | 5034866 | ANODE COVER |
| 13 | 5035305 | O RING |
| 18 | 5035294 | PIN |
| 19 | 5034855 | COVER, CYL HEAD STBD |
| 20 | 5035939 | COVER, CYL HEAD PORT |
| 21 | 5034856 | PLATE, BREATHER STBD |
| 22 | 5034860 | PLATE, BREATHER PORT |
| 25 | 5034132 | SCREW |
| 27 | 5030986 | BOLT |
| 28 | 5034857 | HOSE, BREATHER |
| 29 | 5035673 | CLIP |
| 30 | 5034875 | CAP, OIL FILLER |
| 31 | 5030541 | O RING |
| 32 | 5033634 | BOUGIE (BKR6E) |
| 33 | 5034870 | HOOK, ENGINE |
