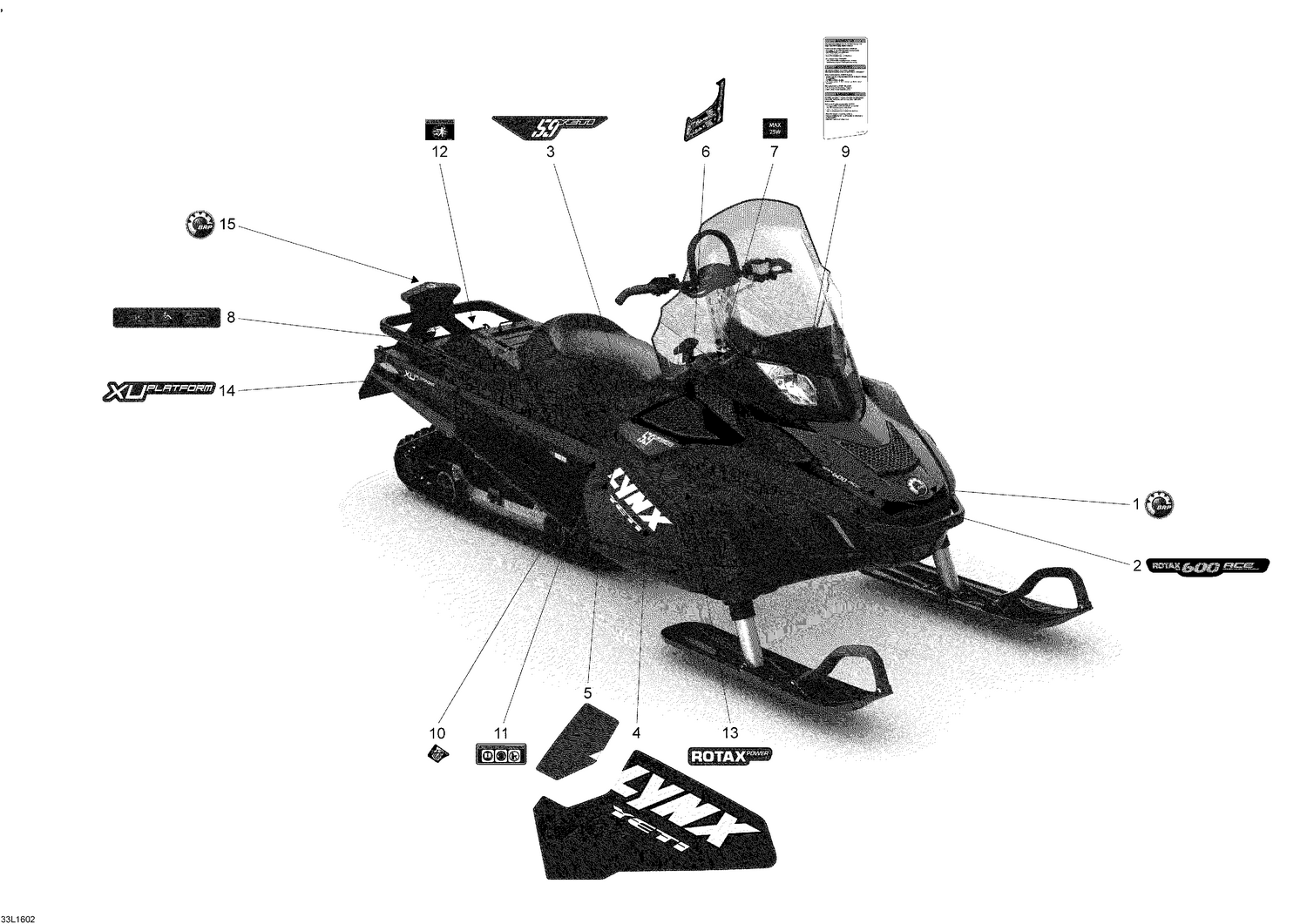

09- Decals
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 2 | 516004360 | Rotax 600 ACE Hood Decal |
| 3 | 516006843 | Access Panel Decal |
| 4 | 516006844 | LH Side Panel Decal |
| 4 | 516006845 | RH Side Panel Decal |
| 5 | 516006878 | LH Back Side Panel Decal |
| 5 | 516006879 | RH Back Side Panel Decal |
| 6 | 516004294 | Transmission Instruction Decal |
| 7 | 516003918 | Power Outlet Decal |
| 8 | 516003886 | WARNING DECAL, TOWING - Call your local BRP dealership |
| 9 | 516006403 | Instruction/Warning Decal (FI/SWE/EN) |
| 10 | 516003925 | Oil Checking Label |
| 11 | 516003027 | WARNING DECAL, PICTOGRAM - Call your local BRP dealership |
| 12 | 516007584 | Rotating Track Warning Decal |
| 13 | 516006331 | Rotax Power Decal |
| 14 | 516005954 | XU Platform Decal |
