Parts Catalog

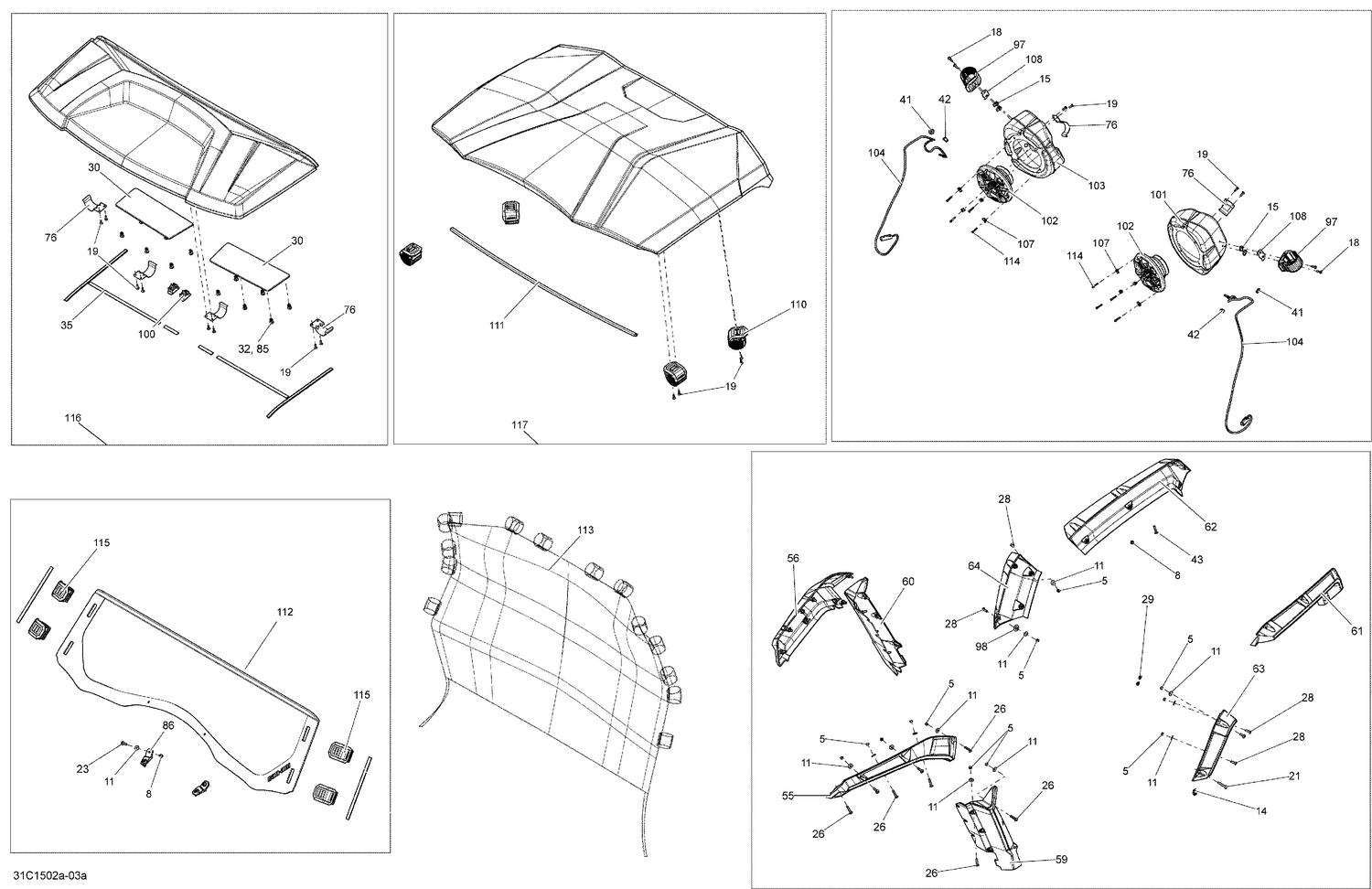

09- Body And Accessories Kit_31C1502a

Parts (45)

Ref	Part Number	Description
5	232561434	Elastic Stop Nut M6
8	233261494	Hex. Flange Elastic Nut M6
11	234062670	Stainless Steel Flat Washer
14	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
15	XXX	Not Available As Spare Parts
18	XXX	Not Available As Spare Parts
19	XXX	Not Available As Spare Parts
21	250000215	Torx Screw M6 X 45
23	XXX	Not Available As Spare Parts
26	250000843	Torx Truss Screw M6 X 30 This part replaces 250000398.
28	250000488	Torx Truss Screw M6 X 20
29	250100129	PUSH NUT - Call your local BRP dealership
30	XXX	Not Available As Spare Parts
32	XXX	Not Available As Spare Parts
35	XXX	Not Available As Spare Parts
41	XXX	Not Available As Spare Parts
42	XXX	Not Available As Spare Parts
43	250000721	Torx Truss Screw M6 X 16
55	705008666	Black, LH Upper Front Mudguard
56	705008667	Black, RH Upper Front Mudguard
59	705008668	Black, LH Lower Mudguard
60	705008669	Black, RH Lower Mudguard
61	705008671	LH Upper Rear Mudguards
62	705008673	RH Upper Rear Mudguards
63	705008670	Black, LH Rear Lower Mudguard
64	705008672	RH Rear Lower Black Mudguard
76	XXX	Not Available As Spare Parts
85	XXX	Not Available As Spare Parts
86	XXX	Not Available As Spare Parts
97	XXX	Not Available As Spare Parts
98	706200281	Hardened Washer This part replaces 250200086.
100	XXX	Not Available As Spare Parts
101	XXX	Not Available As Spare Parts
102	XXX	Not Available As Spare Parts
103	XXX	Not Available As Spare Parts
104	XXX	Not Available As Spare Parts
107	XXX	Not Available As Spare Parts
108	XXX	Not Available As Spare Parts
110	XXX	Not Available As Spare Parts
111	XXX	Not Available As Spare Parts
112	XXX	Not Available As Spare Parts
113	XXX	Not Available As Spare Parts
114	XXX	Not Available As Spare Parts
115	XXX	Not Available As Spare Parts
116	XXX	Not Available As Spare Parts
