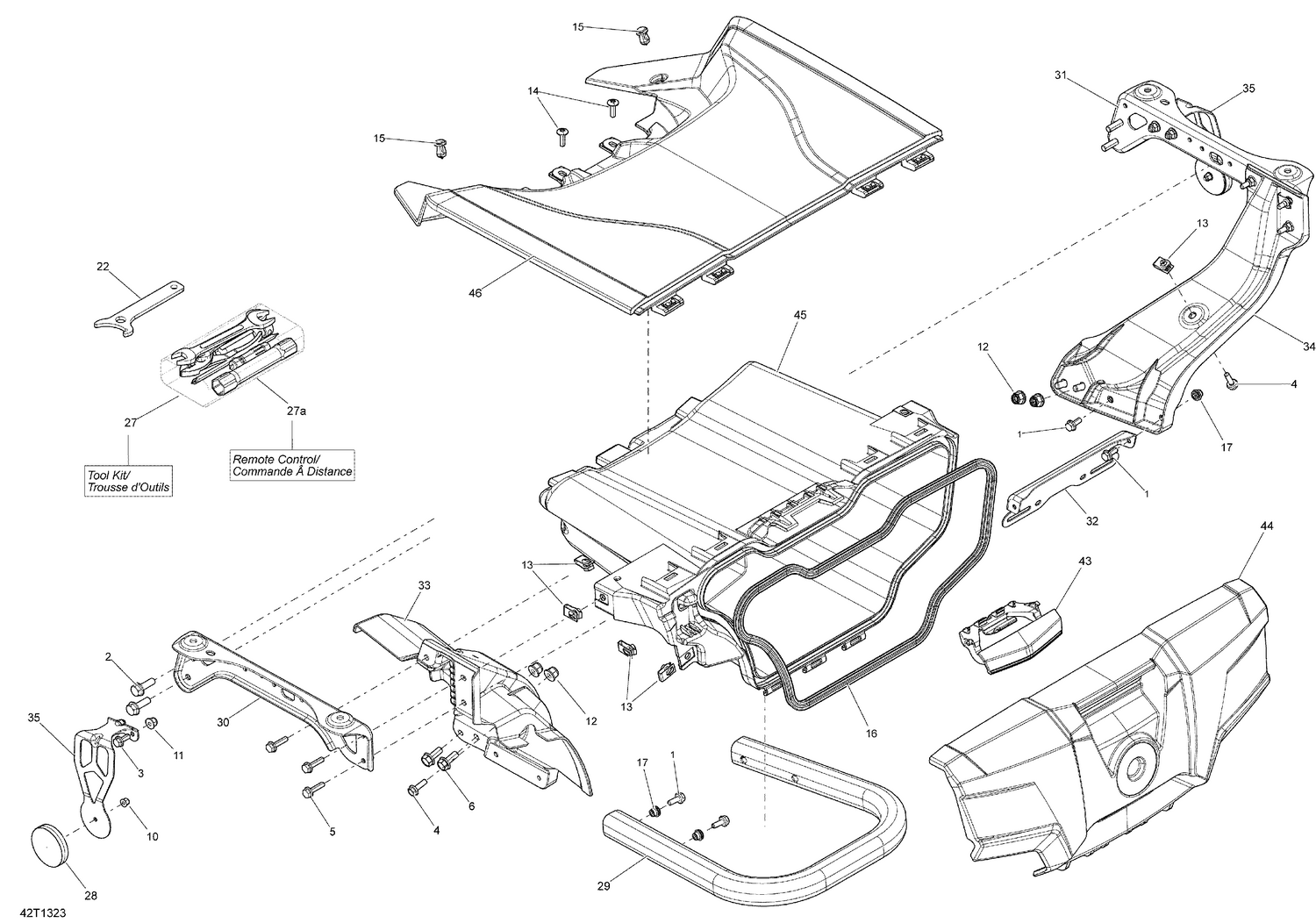

09- Rear Cargo Box
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 3 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 |
| 5 | 207662544 | Hex. Flange Screw M6 X 25 |
| 6 | 207682044 | Hex. Flange Screw M8 X 20 |
| 10 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 14 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 15 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 16 | 293250275 | NEOPRENE SEAL - Call your local BRP dealership |
| 17 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 22 | 529000035 | Adjustment Wrench |
| 27 | 704700162 | Tool Kit This part replaces 704700148. |
| 28 | 705011221 | Red Reflector This part replaces 705002408. |
| 29 | 715001564 | Rear Bumper Ass'y |
| 30 | 705004563 | LH Support |
| 31 | 705004564 | RH Support |
| 32 | 705004806 | Plate Support |
| 33 | 705006997 | LH Cargo Support |
| 34 | 705006998 | RH Cargo Support |
| 35 | 705202576 | Reflector Support |
| 43 | 708201250 | Handle Latch This part replaces 708200272. |
| 44 | 708300150 | Rear Panel |
| 45 | 708300674 | Rear Storage Box |
| 46 | 708300848 | REAR STORAGE COVER - Call your local BRP dealership |
