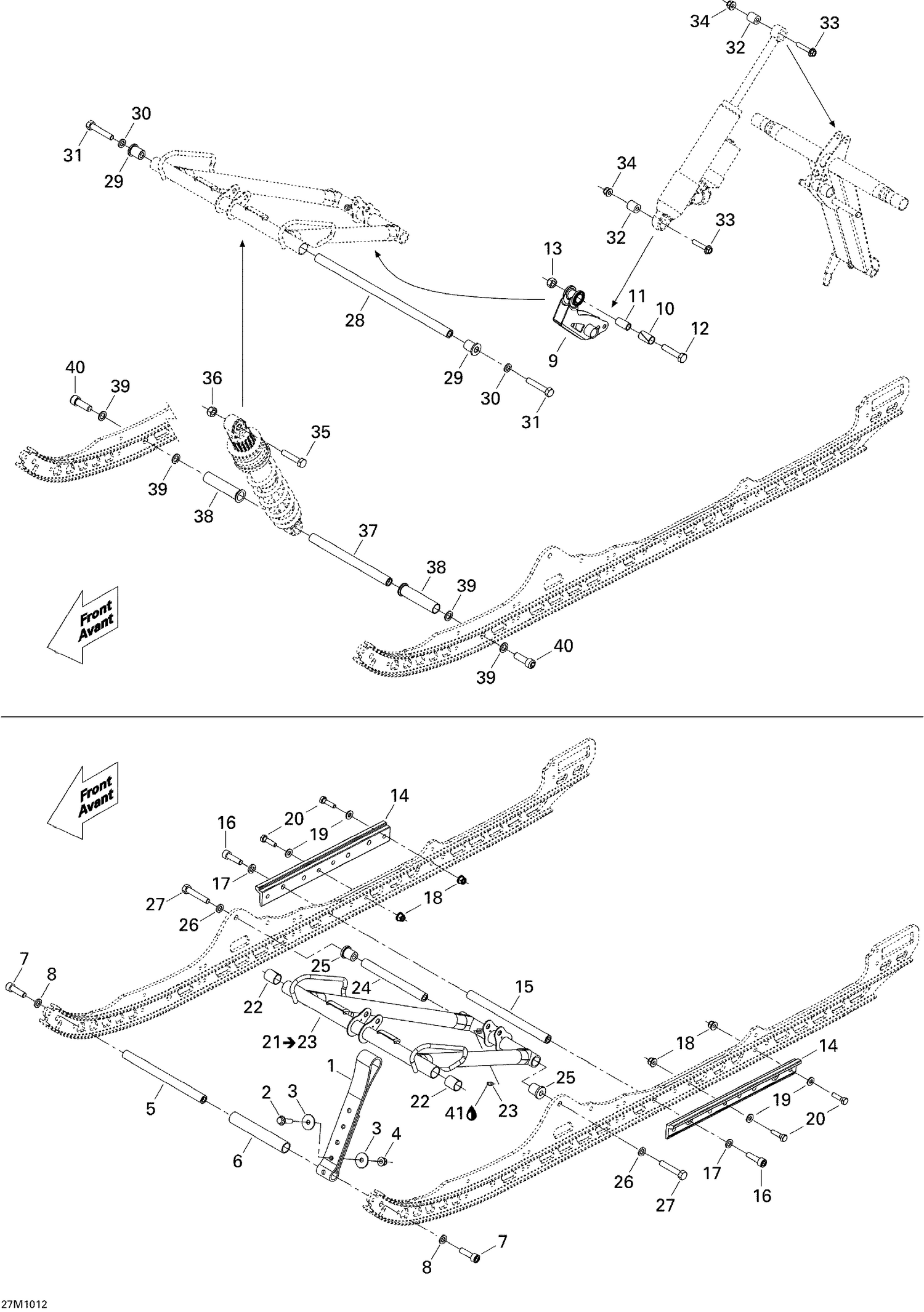

08- Front Arm
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192360 | Stopper Strap |
| 2 | 207683044 | Hex. Flange Screw M8 X 30 |
| 3 | 224081301 | Flat Washer |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 503191260 | Axle Strap |
| 6 | 503191448 | Spacer |
| 7 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 8 | 503189564 | Washer |
| 9 | 503192211 | Rocker |
| 10 | 503193037 | Bushing This part replaces 503191422. |
| 11 | 503189282 | Bushing |
| 12 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 13 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 14 | 503191870 | REINFORCEMENT RAIL - Call your local BRP dealership |
| 15 | 503191260 | Axle Strap |
| 16 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 17 | 503189564 | Washer |
| 18 | 233281414 | Hex. Flange Elastic Nut M8 |
| 19 | 503189157 | Washer |
| 20 | 207183044 | Hex. Screw M8 X 30 |
| 22 | 503191556 | Extended Bushing |
| 23 | 408200700 | Grease Fitting |
| 24 | 503191279 | Lower Shaft |
| 25 | 503189324 | Bushing |
| 26 | 503189564 | Washer |
| 27 | 207205586 | HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership |
| 28 | 503191215 | Upper Shaft |
| 29 | 503191262 | Bushing |
| 30 | 503189564 | Washer |
| 31 | 207205586 | HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership |
| 32 | 414936000 | Bushing |
| 33 | 207684044 | Hex. Flange Screw M8 X 40 |
| 34 | 233281414 | Hex. Flange Elastic Nut M8 |
| 35 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 36 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 37 | 503189272 | CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258. |
| 38 | 503191259 | Center Bushing |
| 39 | 503189276 | Washer |
| 40 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
