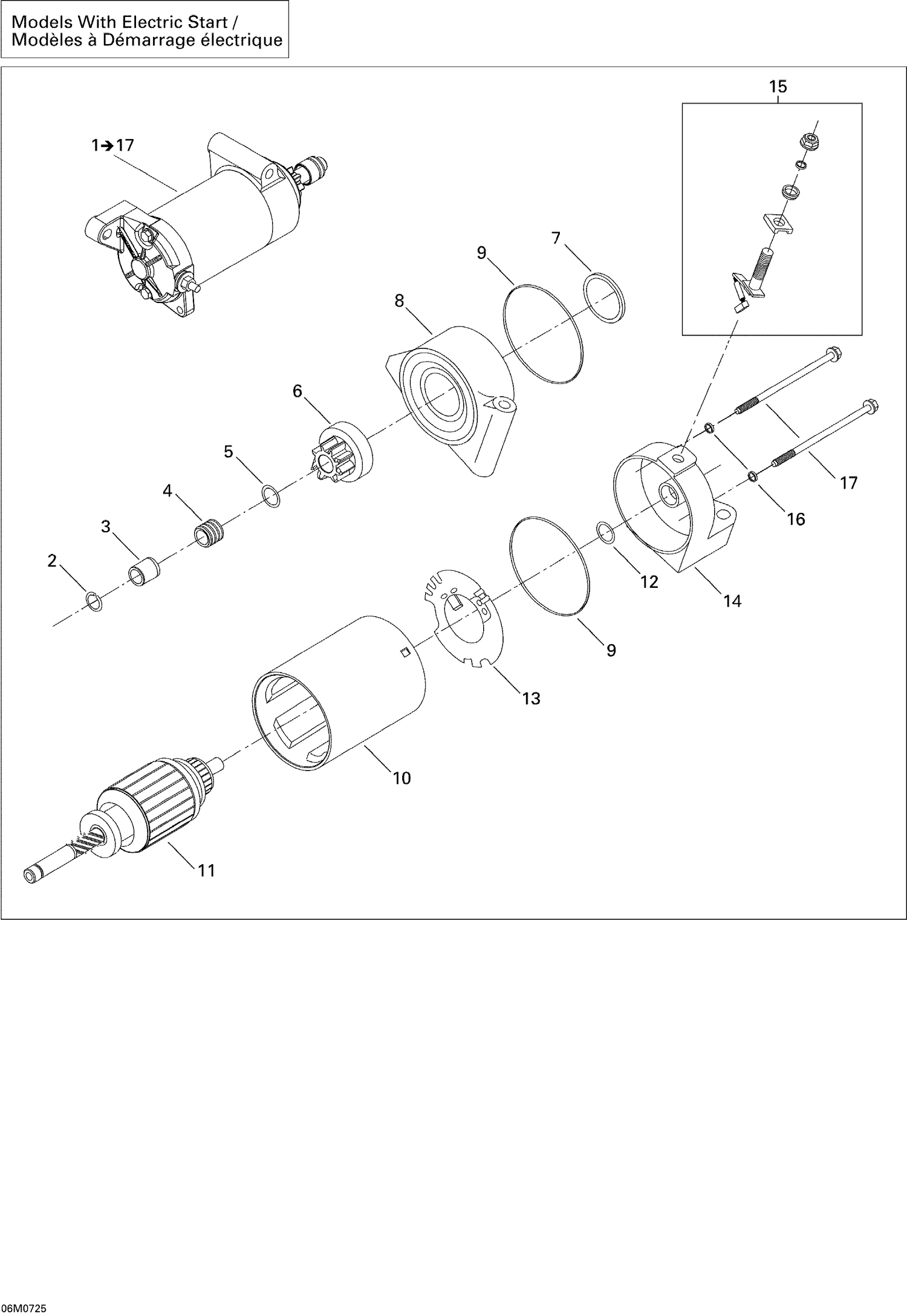

| Ref | Part Number | Description |
|---|
| 2 |
410207700 |
SNAP RING - Call your local BRP dealership |
| 3 |
415129334 |
CLUTCH KIT - Call your local BRP dealership This part replaces 410922974. |
| 4 |
415129334 |
CLUTCH KIT - Call your local BRP dealership This part replaces 410922975. |
| 5 |
278001105 |
WASHER PLATE - Call your local BRP dealership |
| 6 |
415129338 |
KIT-CLUTCH - Call your local BRP dealership This part replaces 410922958. |
| 7 |
415129342 |
O-Ring Kit This part replaces 278000696. |
| 8 |
410922959 |
Housing |
| 9 |
278000695 |
O-Ring |
| 10 |
410922976 |
Starter Housing |
| 11 |
410922977 |
Armature Ass’y |
| 12 |
410204500 |
FLAT WASHER - Call your local BRP dealership |
| 13 |
415129333 |
Brush Kit This part replaces 410922978. |
| 14 |
410922979 |
Housing |
| 15 |
410212100 |
Brush Kit |
| 16 |
278000060 |
O-RING - Call your local BRP dealership |
