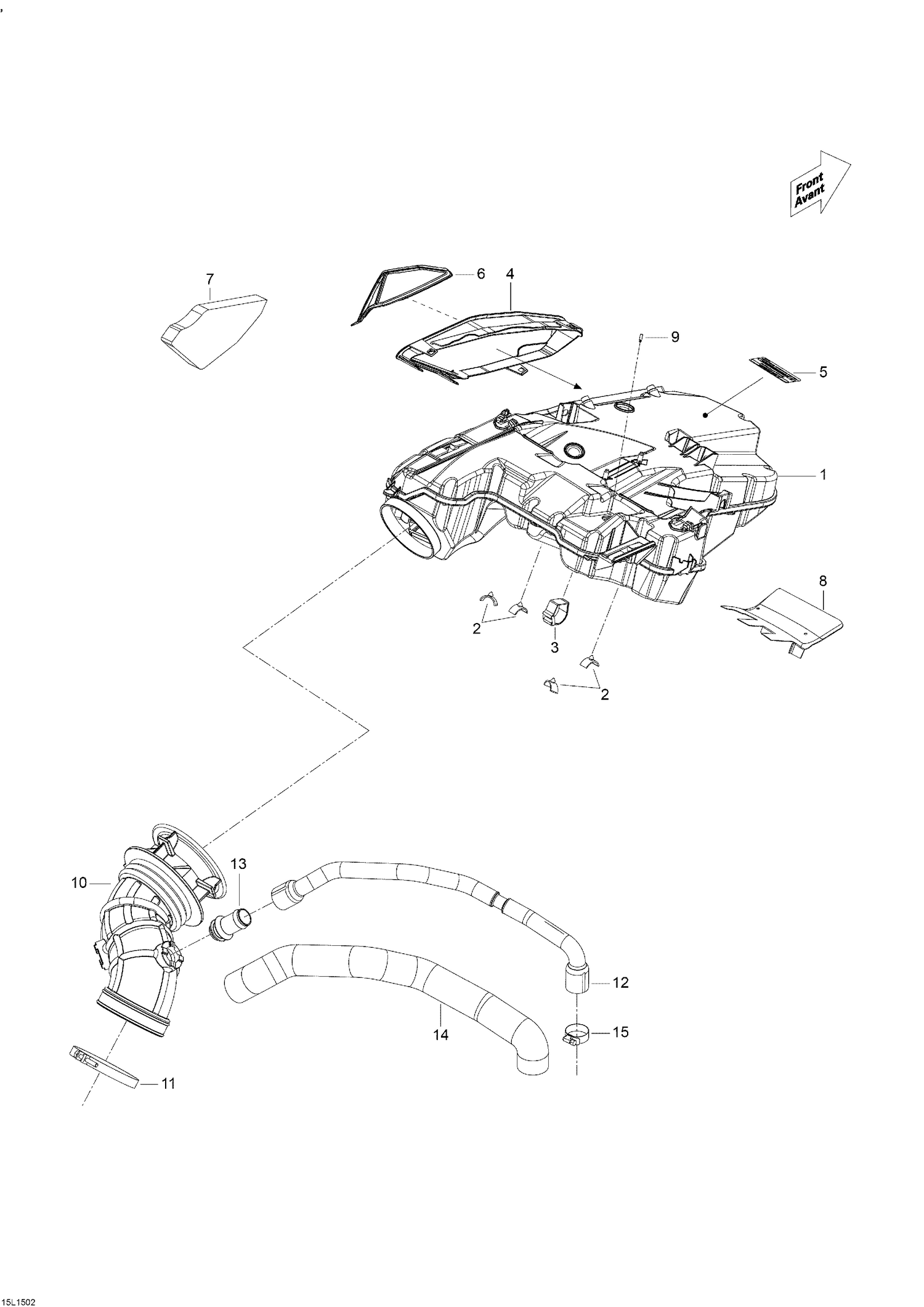

02- Air Intake System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 508000790 | Secondary Chamber Ass'y |
| 2 | 508000537 | Stopper |
| 3 | 508000820 | Velcro-Strip This part replaces 508000532. |
| 4 | 508001020 | Adaptor This part replaces 508000756. |
| 5 | 516004651 | Warning Decal, Hot Parts |
| 6 | 508000609 | Air Filter |
| 7 | 508000704 | Filter |
| 8 | 508000627 | Heat Shield |
| 9 | 572092900 | Cap |
| 10 | 508000719 | HOSE-INTAKE - Call your local BRP dealership |
| 11 | 293650212 | GEMI Clamp |
| 12 | 508000647 | FORMED VENT HOSE - Call your local BRP dealership |
| 13 | 273000234 | Breather |
| 14 | 508000648 | Insulating Tube |
