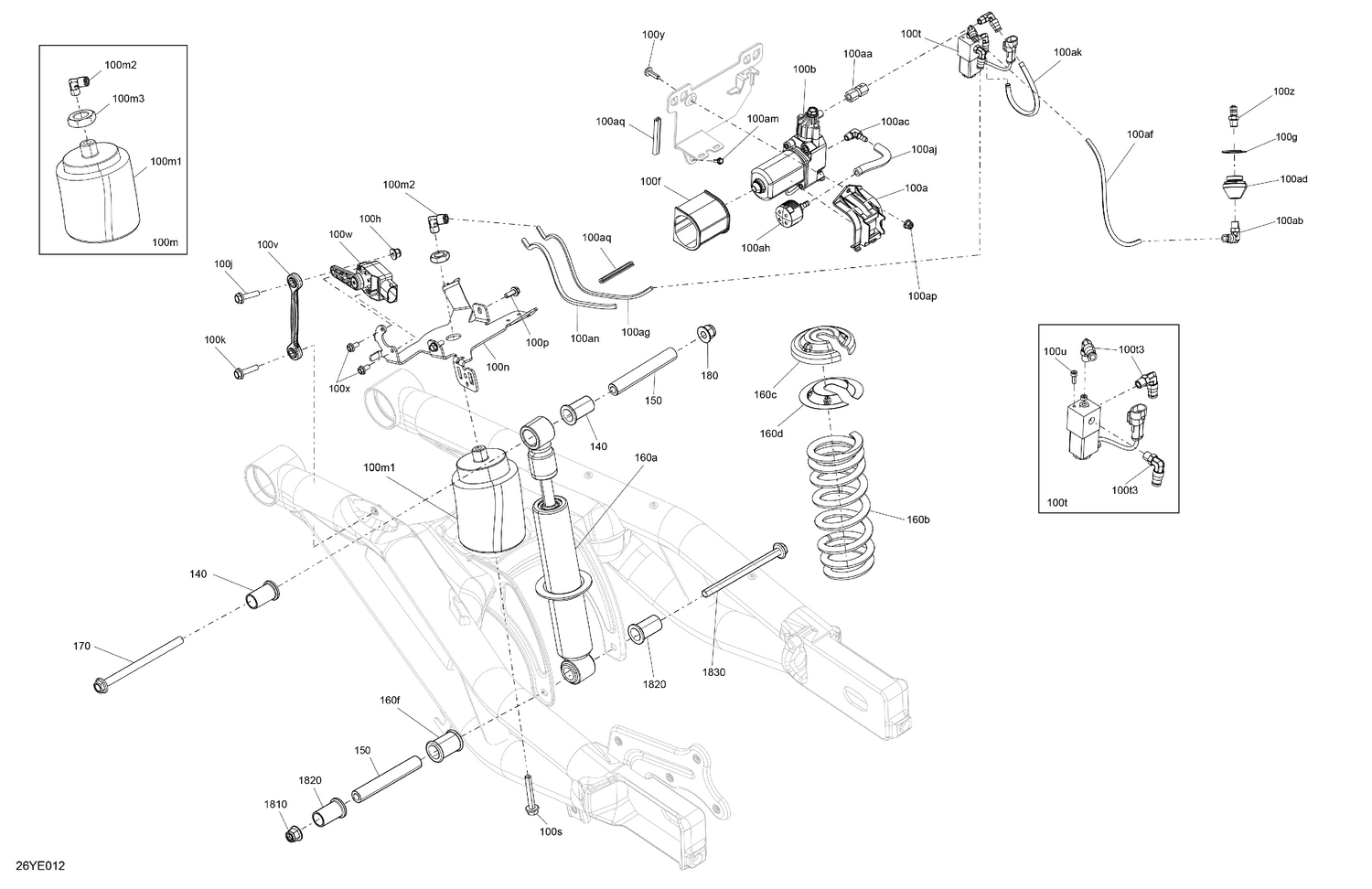

05- Suspension - Rear Shock
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 706005318 | Ext Compressor Support |
| 100aa | 706000831 | Ckeck Valve |
| 100ab | 706000928 | Elbow 90° |
| 100ac | 293700060 | Pipe Elbow Fitting |
| 100ad | 706004028 | Pneumatic Connector |
| 100af | 219704415 | Hose 4.32Mm 3000Mm Long |
| 100ag | 219704415 | Hose 4.32Mm 3000Mm Long |
| 100ah | 706005941 | Air Filter |
| 100aj | 706006038 | Hose 1/2 ID |
| 100ak | 219704415 | Hose 4.32Mm 3000Mm Long |
| 100am | 210261250 | Hex. Flange Screw M6 X 12 |
| 100an | 515175442 | Tubing 6 mm - Call your local BRP dealership |
| 100ap | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 100aq | 219704620 | Trim - 70 mm |
| 100b | 706005694 | Compressor |
| 100f | 706000631 | Compressor Isolator |
| 100g | 293370123 | Circlip |
| 100h | 233261494 | Hex. Flange Elastic Nut M6 |
| 100j | 207662554 | Hex. Flange Screw M6 X 25 |
| 100k | 207662554 | Hex. Flange Screw M6 X 25 |
| 100m1 | 219800175 | Air Damper Kit |
| 100m2 | 706001018 | Elbow 90° |
| 100m3 | 250100119 | Jam Nut M20 |
| 100n | 706005195 | Shock Absorber Anchorage |
| 100p | 210261650 | Hex. Flange Screw M6 X 16 |
| 100s | 207685044 | Hex. Flange Screw M8 X 50 |
| 100t3 | 706000928 | Elbow 90° |
| 100u | 205041254 | Socket Head Screw M4 X 12 |
| 100v | 706202505 | Tie Rod |
| 100w | 710004740 | Suspension Sensor |
| 100x | 207551056 | Hex. Flange Screw M5x10 |
| 100y | 250000712 | Torx Screw M6 X 20 |
| 100z | 706002797 | Air Valve |
| 140 | 706000410 | Spacer |
| 150 | 706000409 | Shock Absorber Shaft |
| 160a | 706005089 | Shock Absorber |
| 160b | 706005088 | Compression Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160f | 503191609 | Urethane Cushion |
| 170 | 230605034 | Hex.Flange Screw M10 X 150 |
| 180 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 1810 | 233201434 | Hex. Flange Elastic Nut M10 |
| 1820 | 706000410 | Spacer |
