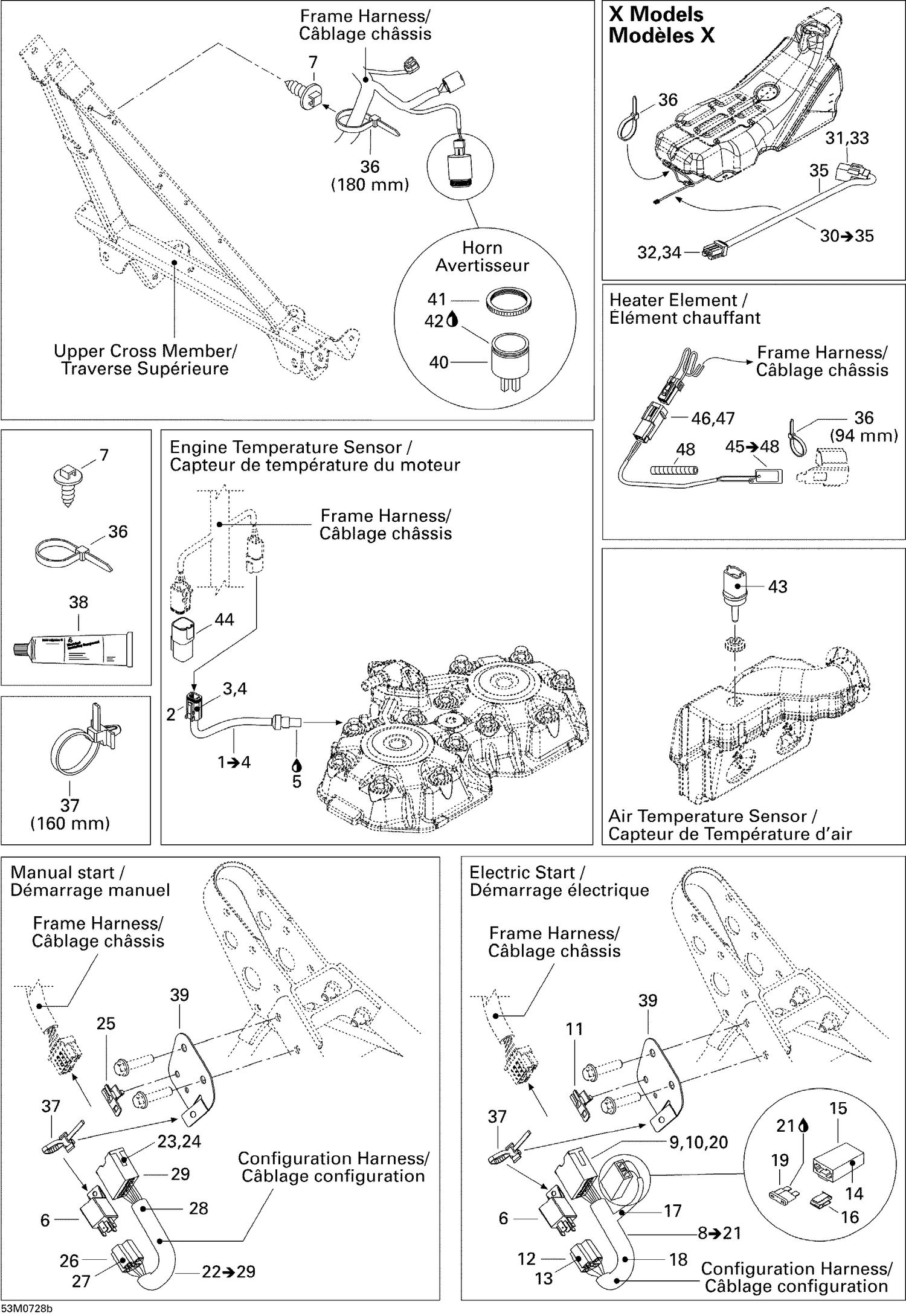

| Ref | Part Number | Description |
|---|
| 2 |
278000739 |
Male Connector, 4 Circuits |
| 3 |
278000632 |
Female Terminal |
| 4 |
515175677 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 5 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 6 |
710010053 |
Relay This part replaces 410113200. |
| 7 |
293730040 |
Mount Dart This part replaces 293730018. |
| 30 |
XXX |
Not Available As Spare Parts |
| 31 |
XXX |
Not Available As Spare Parts |
| 32 |
XXX |
Not Available As Spare Parts |
| 33 |
XXX |
Not Available As Spare Parts |
| 34 |
XXX |
Not Available As Spare Parts |
| 35 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 36 |
293750001 |
Tie Wrap 94 mm |
| 36 |
414115200 |
Tie-Rap 180 mm |
| 37 |
293750009 |
Tie-Rap 173 mm |
| 38 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 39 |
515176020 |
HARNESS SUPPORT - Call your local BRP dealership |
| 40 |
515176035 |
HORN - Call your local BRP dealership |
| 41 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 42 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 43 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 44 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 46 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 47 |
515175232 |
Male Terminal |
