Parts Catalog

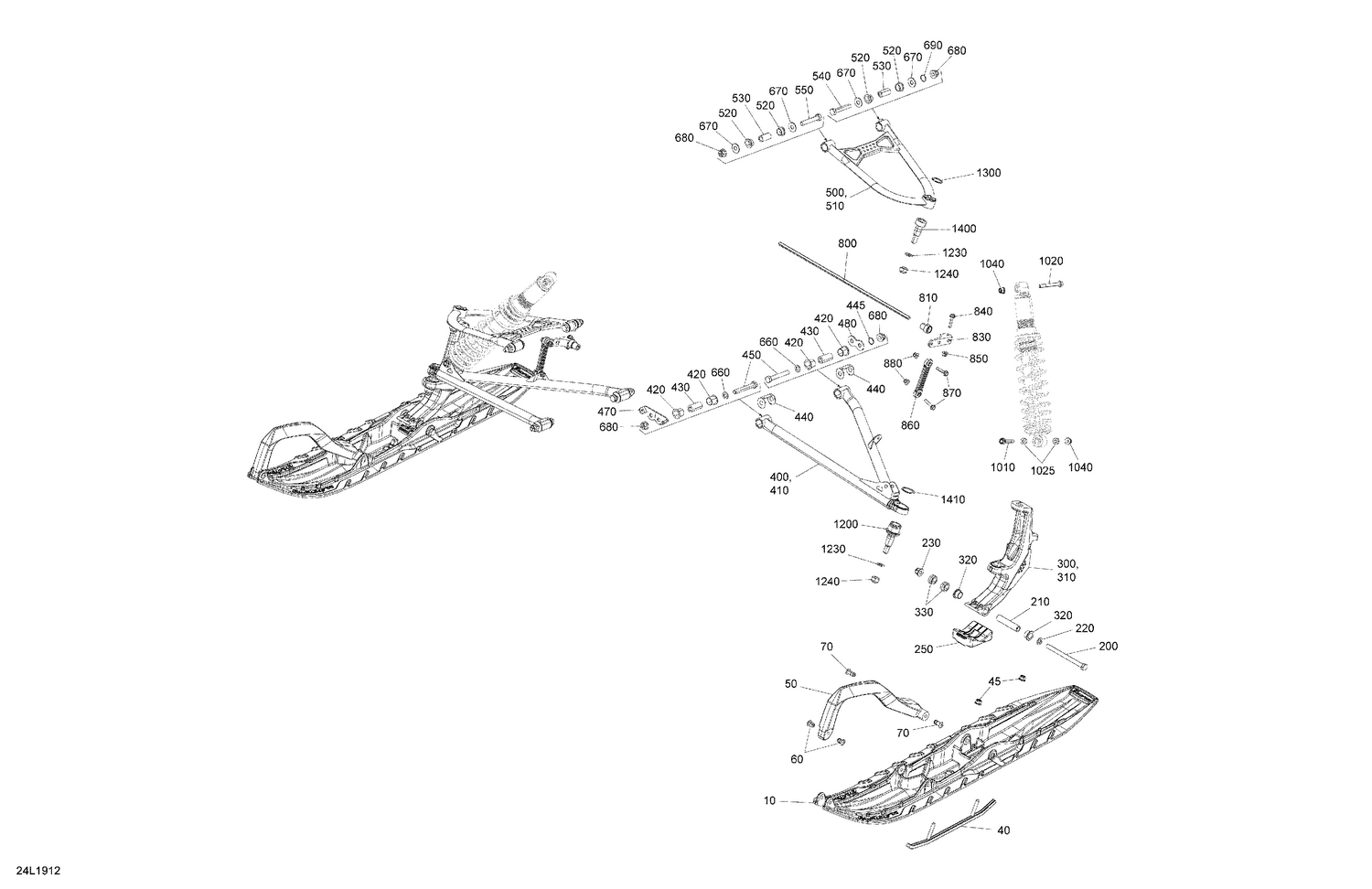

07- Front Suspension And Ski - Boondocker DS - 850 E-TEC

Parts (47)

Ref	Part Number	Description
10	505073834	Black, Ski Blade DS
40	860201044	Carbide Runner Kit (Square Runner)
45	233281414	Hex. Flange Elastic Nut M8
50	505072976	Black, Handle
60	505071812	Retainer 17mm long
70	505072133	Retainer 23mm Long
200	250000703	Hex. Screw M10 X 130
210	505073691	Ski Axle
220	503192496	Washer
230	233201464	Hex. Elast. Flanged Nut M10 x 1.5
250	505074461	Ski Stopper
320	505072690	Leg Bushing
400	505075771	Black, RH Inf Suspension Arm This part replaces 505073743.
410	505075474	LH Lower Suspension Arm 36 This part replaces 505073739.
420	505073330	Bushing
430	505072209	Sleeve
440	505072634	Wear Plate
445	505072448	O-Ring
450	250001024	Screw Hex. M10 X 70
470	505073723	Wear Plate
480	505073844	Plate
500	505074609	LH Upper Arm 36
510	505074610	RH Upper Arm 36
520	505073329	Bushing
530	505072143	Sleeve
540	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
550	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
660	503189564	Washer
670	505072392	Washer
680	250100165	Hex. Flanged Elastic Nut M10
690	505072448	O-Ring
800	505075485	Stabilizer Bar This part replaces 505073847.
810	505072786	Bushing
830	505073752	Stabilisator Lever
840	207663056	Hex Flange Screw M6 X 1.0 X 30
850	233261466	Hex. Flanged Elastic Nut M6
860	505073172	Double Ball Joint Link
870	207663056	Hex Flange Screw M6 X 1.0 X 30
880	233261466	Hex. Flanged Elastic Nut M6
1010	250000824	Hexagonal Flange Screw M8 X 58
1020	250000824	Hexagonal Flange Screw M8 X 58
1025	505073892	Spacer
1040	233281466	Elastic Flang Nut M8
1230	503192491	Washer
1240	232521464	Hex Elastic Nut M12 X 1.25
1300	293370070	Circlip
1400	505072913	Upper Ball Joint
