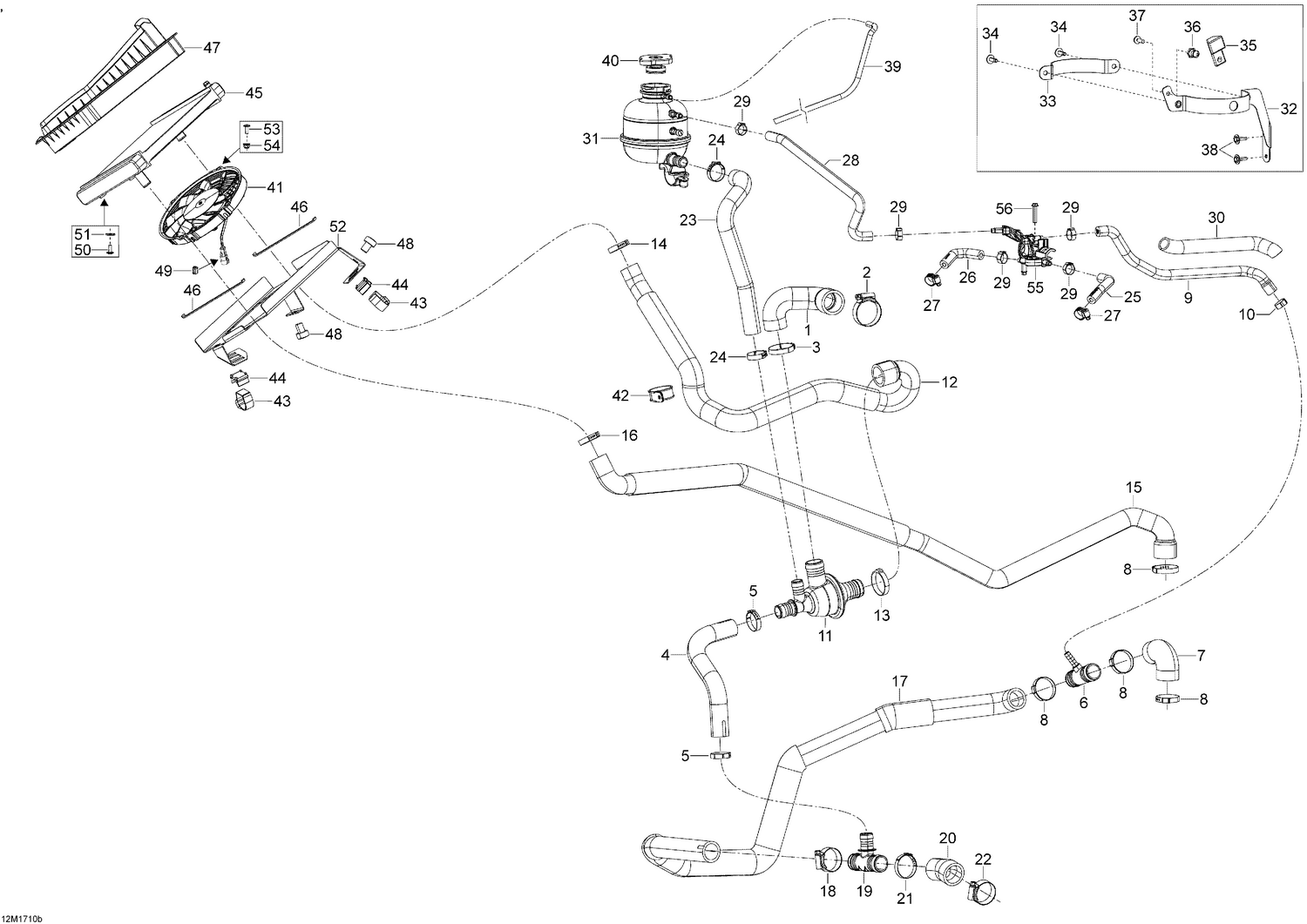

01- Cooling System - 800R E-TEC
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000595 | Engine Outlet Hose |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000181 | Oetiker Gear Clamp |
| 4 | 509000523 | Bypass Hose |
| 5 | 293650099 | Crimp Clamp |
| 6 | 509000510 | T-Fitting |
| 7 | 509001066 | Radiator Hose This part replaces 509000671. |
| 8 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 9 | 509000906 | Bleeder Hose |
| 10 | 293650047 | Crimp Clamp, 15.3-706R |
| 11 | 509000499 | Thermostat Housing |
| 12 | 509000983 | Thermostat Outlet Hose |
| 13 | 509000181 | Oetiker Gear Clamp |
| 14 | 293650099 | Crimp Clamp |
| 15 | 509000994 | Hose |
| 16 | 293650099 | Crimp Clamp |
| 17 | 509000992 | Radiator Hose |
| 18 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 19 | 509000372 | T-Fitting |
| 20 | 509000997 | Engine Inlet Hose |
| 21 | 509000181 | Oetiker Gear Clamp |
| 22 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 23 | 509000736 | Filling Hose |
| 24 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 25 | 509000818 | Bleeder Hose |
| 26 | 509000819 | Bleeder Hose |
| 27 | 293650170 | Tridon Gear Clamp |
| 28 | 509000998 | Hose |
| 29 | 293650046 | Oetiker Clamp |
| 30 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 31 | 509000421 | Coolant Tank |
| 32 | 509000852 | Reservoir support |
| 33 | 509000608 | Support |
| 34 | 250000676 | Forming Screw M5 x 16 |
| 35 | 509000609 | Support |
| 36 | 517303439 | Knob |
| 37 | 250000720 | Torx Screw K50 X 16 |
| 38 | 250000725 | Screw M4 X 16 |
| 39 | 219704360 | Hose 6 Mm 15000Mm Long |
| 40 | 509000180 | Radiator Pressure Cap |
| 41 | 509000838 | Cooling Fan |
| 42 | 27011 | Clamp With Rubber |
| 43 | 508000820 | Velcro Strip |
| 44 | 508000822 | Bumper |
| 45 | 509000980 | Radiator |
| 46 | 509000986 | Rubber Strip |
| 47 | 509000985 | Deflector |
| 48 | 570044700 | Rubber Bumper |
| 49 | 710000992 | Clip |
| 50 | 250000717 | Torx Head Screw M6 X 16 |
| 51 | 224061201 | Flat Washer |
| 52 | 509000984 | Support |
| 53 | 250000717 | Torx Head Screw M6 X 16 |
| 54 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 55 | 509000803 | Bleed Collector |
