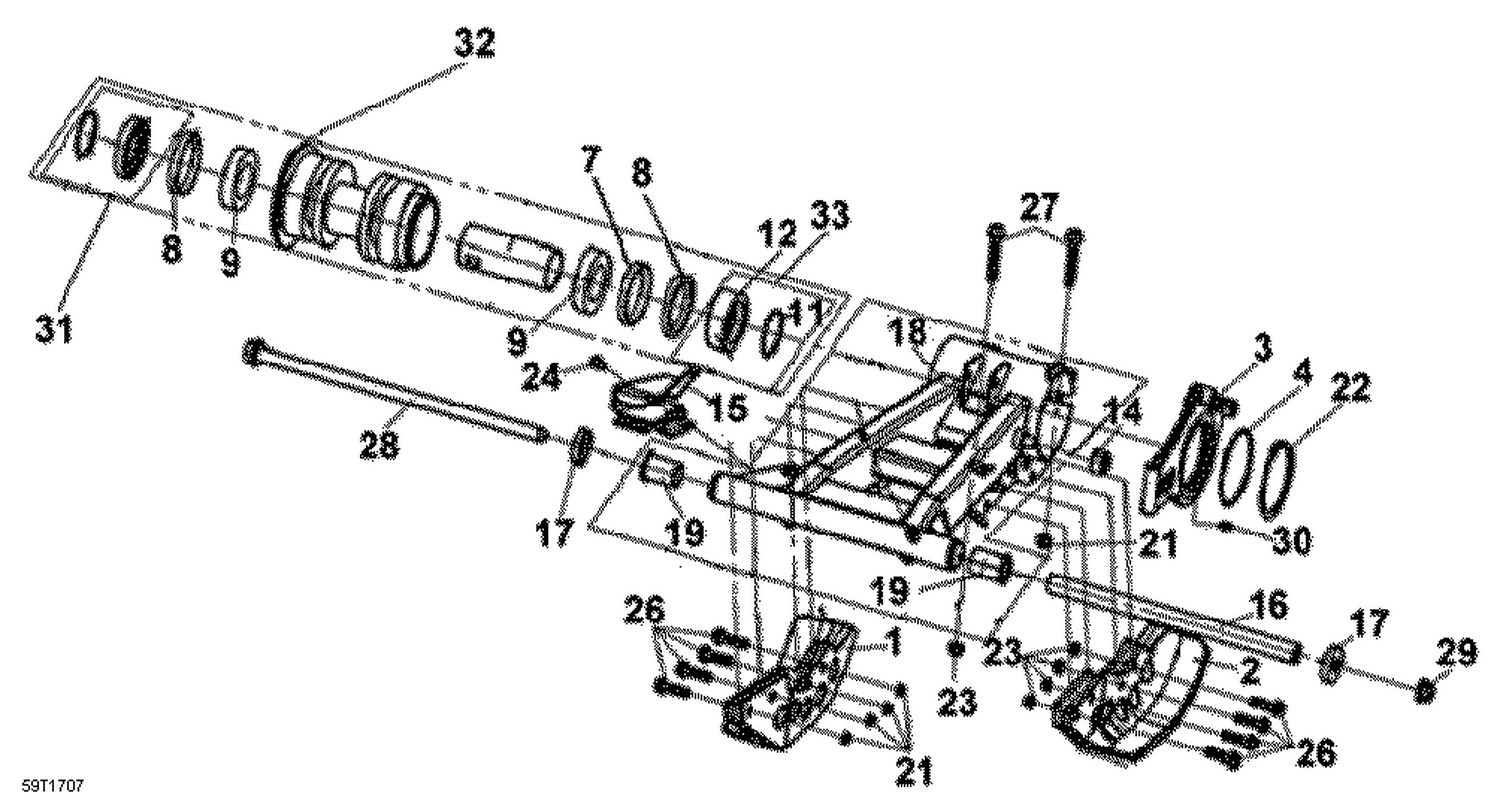

08- Rear Swing Arm North America
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S40150RCA000 | RH Skid Plate |
| 2 | S40160RCA000 | LH Skid Plate |
| 3 | S42318RCA000 | Rear Brake Caliper Bracket |
| 4 | S42319RCA000 | O Ring |
| 7 | S42312RCA000 | Steel Collar |
| 8 | S91206RCA000 | Oil Seal |
| 9 | S961506008310 | Ball Bearing |
| 12 | Not | Available As Spare Part - Axle Housing Spacer |
| 14 | S52201RCA000 | Locking Collar |
| 15 | S52205RCA000 | Chain Guide |
| 16 | S52208RCA000 | Pivot Spacer |
| 17 | S52209RCA000 | Pivot Dust Seal |
| 18 | S52200RCA000 | Swing Arm |
| 19 | S52210RCA000 | Pivot |
| 21 | S90304RCA000 | Flanged Nylon Nut 10 mm |
| 22 | S91301RCA000 | Circlip |
| 23 | S9405008070 | Flanged Nut 10 mm |
| 24 | S958010601207 | Flanged Bolt M6 X 12 |
| 26 | S958010803007 | Flanged Bolt M8 X 30 |
| 27 | S964001006508 | Flanged Bolt M10 X 65 |
| 28 | S90103RCA000 | Pivot Bolt |
| 29 | S90305GW0901 | Self Lock Nut 14 mm |
| 30 | S90465M9Q000 | Washer 8 mm |
| 31 | S4011ARCA000 | RH Axle Collar Ass'y |
| 32 | S4231ARCA000 | Rear Axle Housing Ass'y |
