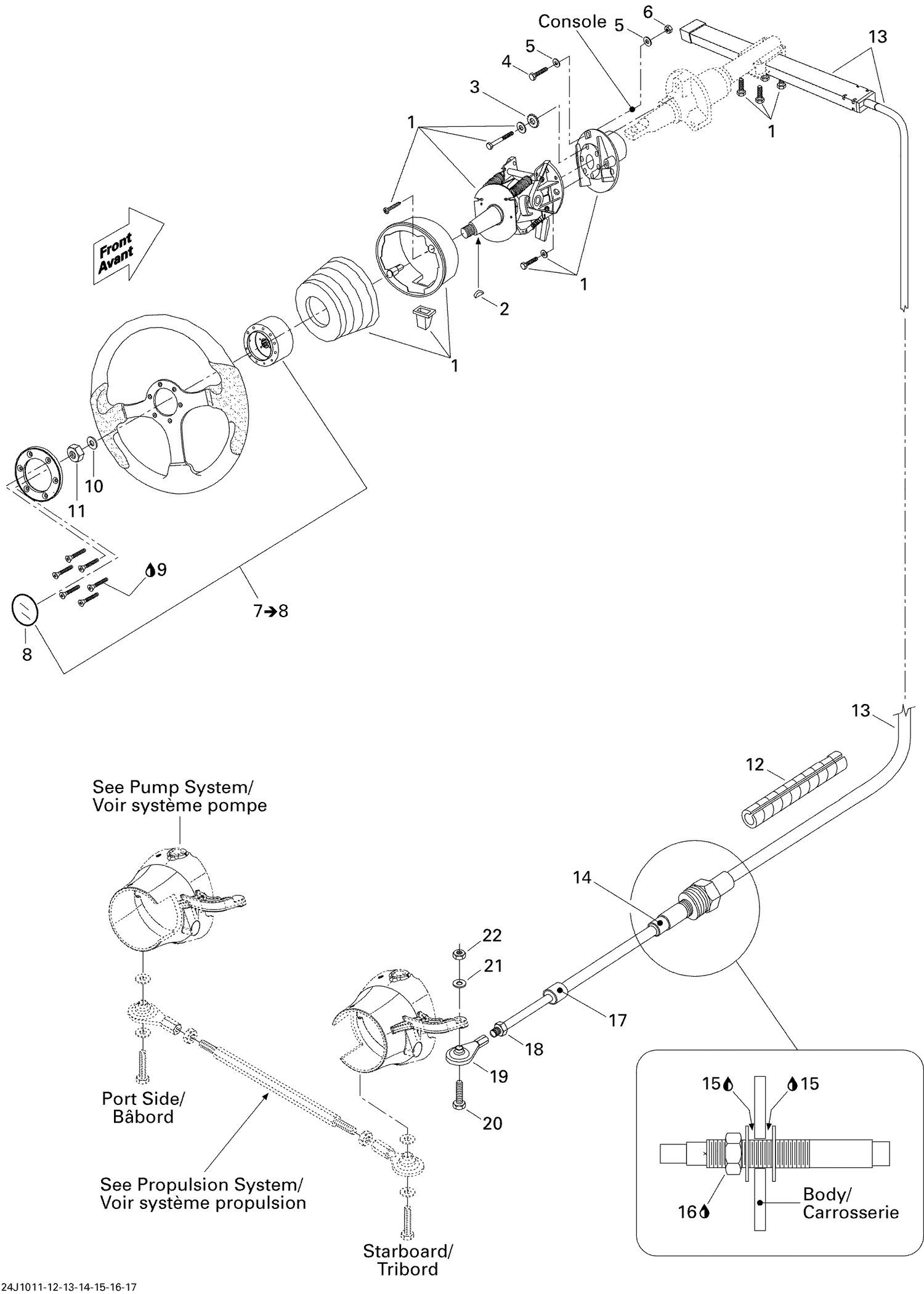

| Ref | Part Number | Description |
|---|
| 1 |
277001690 |
HELM TILT ASS'Y - Call your local BRP dealership |
| 2 |
277000384 |
WOODRUFF KEY - Call your local BRP dealership |
| 3 |
234481608 |
Serrated Lock Washer 8 mm |
| 4 |
207164060 |
Hex. Screw M6 X 40 |
| 5 |
234061600 |
Stainless Flat Washer M6 |
| 6 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 8 |
204390549 |
CENTER CAP - Call your local BRP dealership |
| 9 |
293800060 |
Loctite 243, 10 ml |
| 10 |
211200006 |
FLAT WASHER, STAINLESS - Call your local BRP dealership |
| 11 |
211100021 |
LOCK NUT 1/2-20 - Call your local BRP dealership |
| 12 |
204130408 |
SPLIT CONDUIT - Call your local BRP dealership |
| 13 |
277001866 |
STEERING CABLE - Call your local BRP dealership This part replaces 204390578. |
| 14 |
277000440 |
SEAL SWIVEL - Call your local BRP dealership |
| 15 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
277000441 |
TERMINAL WIPER - Call your local BRP dealership |
| 18 |
277000439 |
HEX. NUT 5/16-24 - Call your local BRP dealership |
| 19 |
204120074 |
BALL JOINT - Call your local BRP dealership |
| 20 |
207063560 |
Hex. Screw M6 X 35 |
| 21 |
234061600 |
Stainless Flat Washer M6 |
