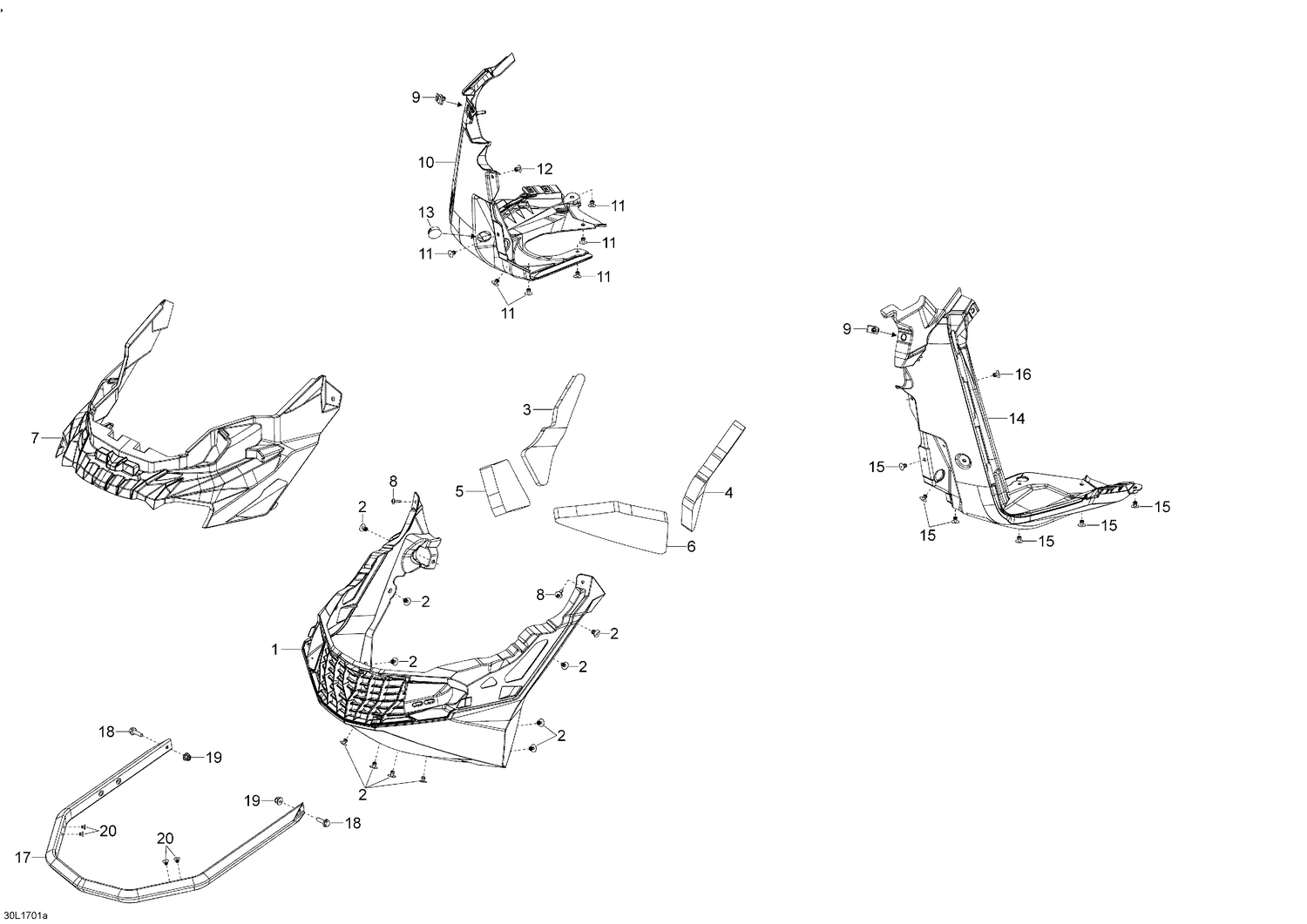

09- Bottom Pan
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502007172 | Black Bottom Pan |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | 502007243 | RH Foam Upper |
| 4 | 502007244 | LH Foam Upper |
| 5 | 502007245 | RH Foam Lower |
| 6 | 502007246 | LH Foam Lower |
| 7 | 502007284 | Front Cap |
| 8 | 250000528 | Torx Screw M5 X 20 |
| 9 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 10 | 502007259 | Black RH Bottom Pan |
| 11 | 293150104 | Pop Rivet 3/16 |
| 12 | 293150103 | Pop Rivet 3/16 |
| 13 | 414916600 | Plug |
| 14 | 502007260 | Black LH Bottom Pan |
| 15 | 293150104 | Pop Rivet 3/16 |
| 16 | 293150103 | Pop Rivet 3/16 |
| 17 | 502007281 | Bumper |
| 18 | 207662044 | Hex. Flange Screw M6 X 20 |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
