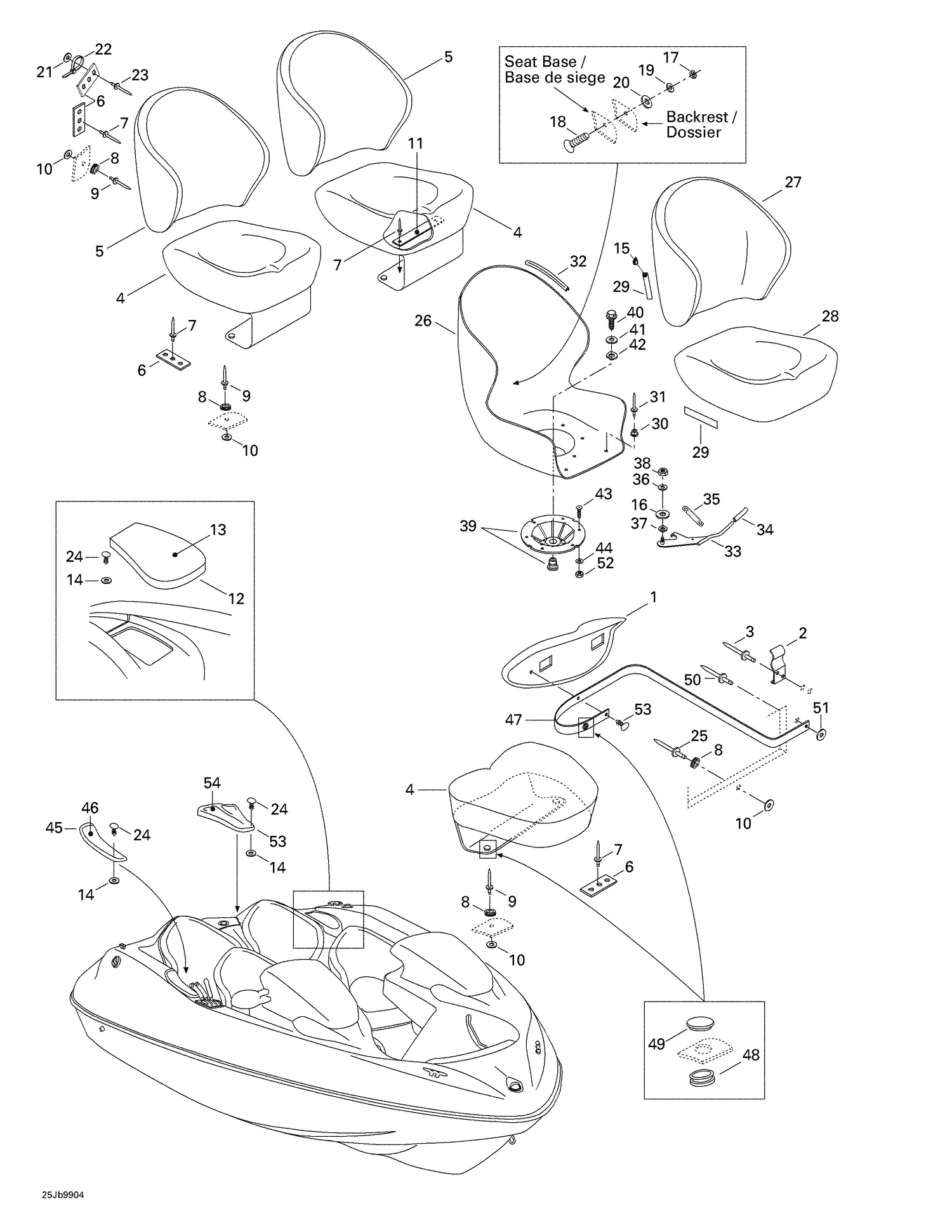

| Ref | Part Number | Description |
|---|
| 1 |
204610502 |
Front Backrest Ass'y (Bright Yellow) |
| 2 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 3 |
293150043 |
Pop Rivet 3/16" |
| 4 |
204610492 |
Seat Cushion (Bright Yellow) |
| 5 |
204610504 |
Backrest Cushion (Bright Yellow) |
| 6 |
293740004 |
VELCRO STRIP - Call your local BRP dealership |
| 7 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 8 |
204000084 |
BOTTOM SNAP - Call your local BRP dealership |
| 9 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 10 |
234032600 |
Flat Washer M3, Stainless |
| 11 |
Not |
Available As Spare Part - Console Plate |
| 13 |
204610494 |
Cover, Arm Rest RH (Bright Yellow) |
| 14 |
234062600 |
Flat Washer M6, Stainless |
| 15 |
293800058 |
Loctite 4471, 20 G |
| 16 |
204610440 |
Washer (Nylon) |
| 17 |
232041600 |
NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership |
| 18 |
205441660 |
Socket Head Screw M4 X 16 |
| 19 |
204610439 |
Flat Washer |
| 20 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 21 |
234051600 |
Flat Washer M5, Stainless |
| 22 |
293750017 |
Tie-Rap |
| 23 |
293150013 |
Pop Rivet 3/16" |
| 24 |
293730006 |
Black, Dart |
| 25 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 27 |
204610504 |
Backrest Cushion (Bright Yellow) |
| 28 |
204610492 |
Seat Cushion (Bright Yellow) |
| 29 |
293740004 |
VELCRO STRIP - Call your local BRP dealership |
| 30 |
204000084 |
BOTTOM SNAP - Call your local BRP dealership |
| 31 |
293150061 |
Pop Rivet 1/8 |
| 32 |
204610371 |
TRIM, BLACK - Call your local BRP dealership |
| 33 |
204610524 |
Lever Arm |
| 34 |
204610348 |
Handle |
| 35 |
204610349 |
SPRING - Call your local BRP dealership |
| 36 |
234061600 |
Stainless Flat Washer M6 |
| 37 |
211200059 |
Washer |
| 38 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 39 |
204610513 |
SWIVEL PLATE - Call your local BRP dealership |
| 40 |
211000172 |
SCREW-SHOULDER - Call your local BRP dealership |
| 41 |
211200058 |
FLAT WASHER - Call your local BRP dealership |
| 42 |
293200056 |
WASHER - Call your local BRP dealership |
| 43 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 44 |
234062600 |
Flat Washer M6, Stainless |
| 46 |
204610499 |
Cover, Arm Rest-Driver (Bright Yellow) |
| 47 |
204610389 |
Retaining Strap |
| 48 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 49 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 50 |
293150043 |
Pop Rivet 3/16" |
| 51 |
234052600 |
Flat Washer 5 mm, Stainless |
| 52 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 204610495 |
Arm |
Rest Ass'y LH (Bright Yellow) 204610495 |
| 204610496 |
Cover, |
Arm Rest LH (Bright Yellow) 204610496 |
