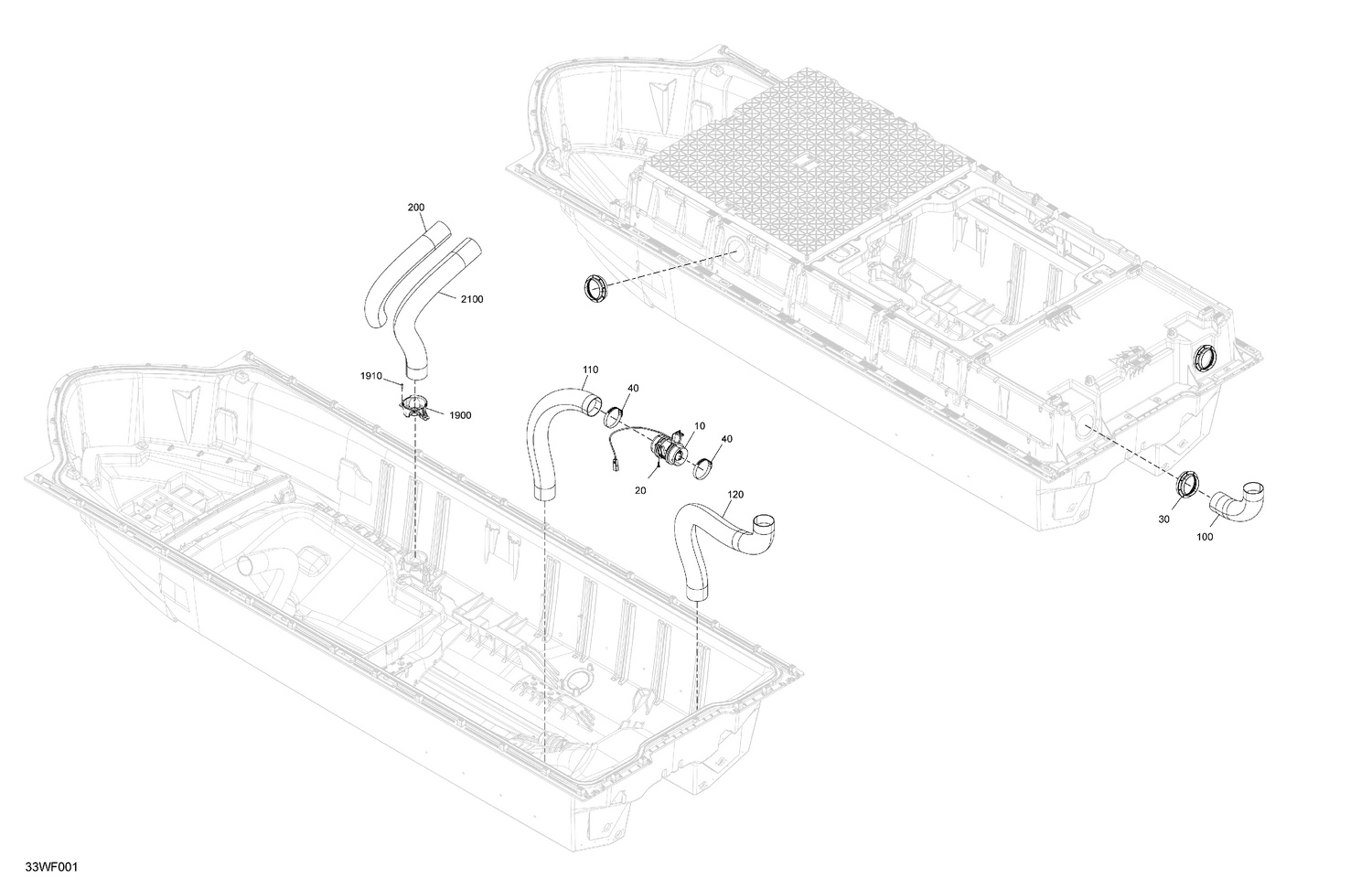

05- HULL - Ventilation
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 30 | 237000090 | Vent Adapter |
| 40 | 293650244 | Tridon Gear Clamp |
| 100 | 237000078 | Ventilation Duct |
| 110 | 237000079 | Ventilation Duct |
| 120 | 237000080 | Ventilation Duct |
| 200 | 237000086 | Acoustic Duct |
| 1900 | 237000083 | Hose Support |
| 1910 | 211000023 | Hex. Screw 10-14 X 7/8” |
