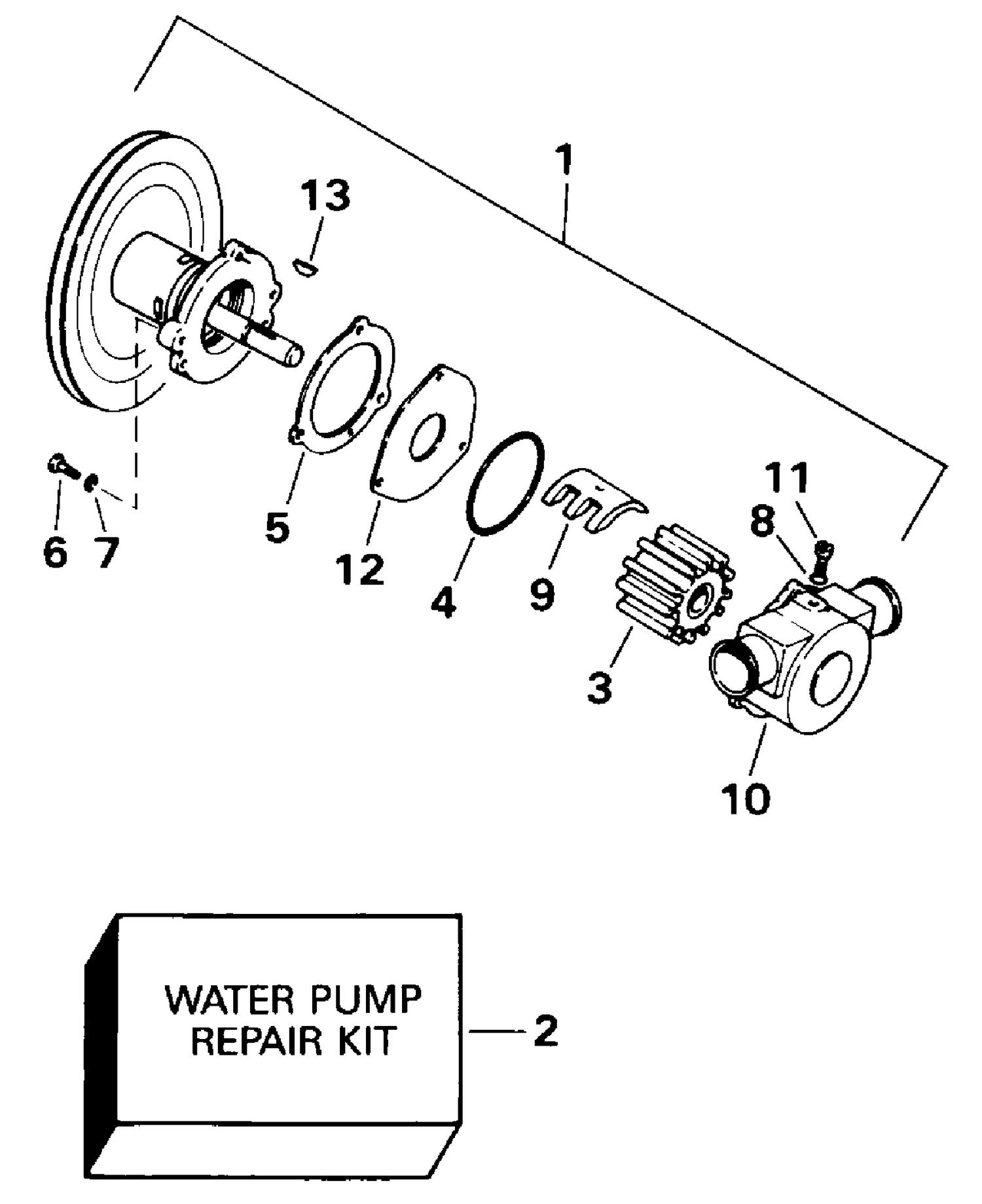

WATER PUMP
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3858847 | Water Pump Ay This part replaces 3852398. |
| 2 | 3854287 | WATER PUMP REPAIR KIT |
| 3 | 3854286 | IMPELLER |
| 4 | 3854293 | O-RING, Housing |
| 5 | 3854296 | GASKET, Plate to body |
| 6 | 3854297 | SCREW, Body to hsg. |
| 7 | 3854292 | LOCK WASHER, Screw to hsg. |
| 8 | 3854289 | WASHER, Cam screw |
| 9 | 3854291 | CAM, Impeller |
| 10 | 3854288 | HOUSING |
| 11 | 3854290 | SCREW, Cam |
| 12 | 3854295 | END PLATE |
