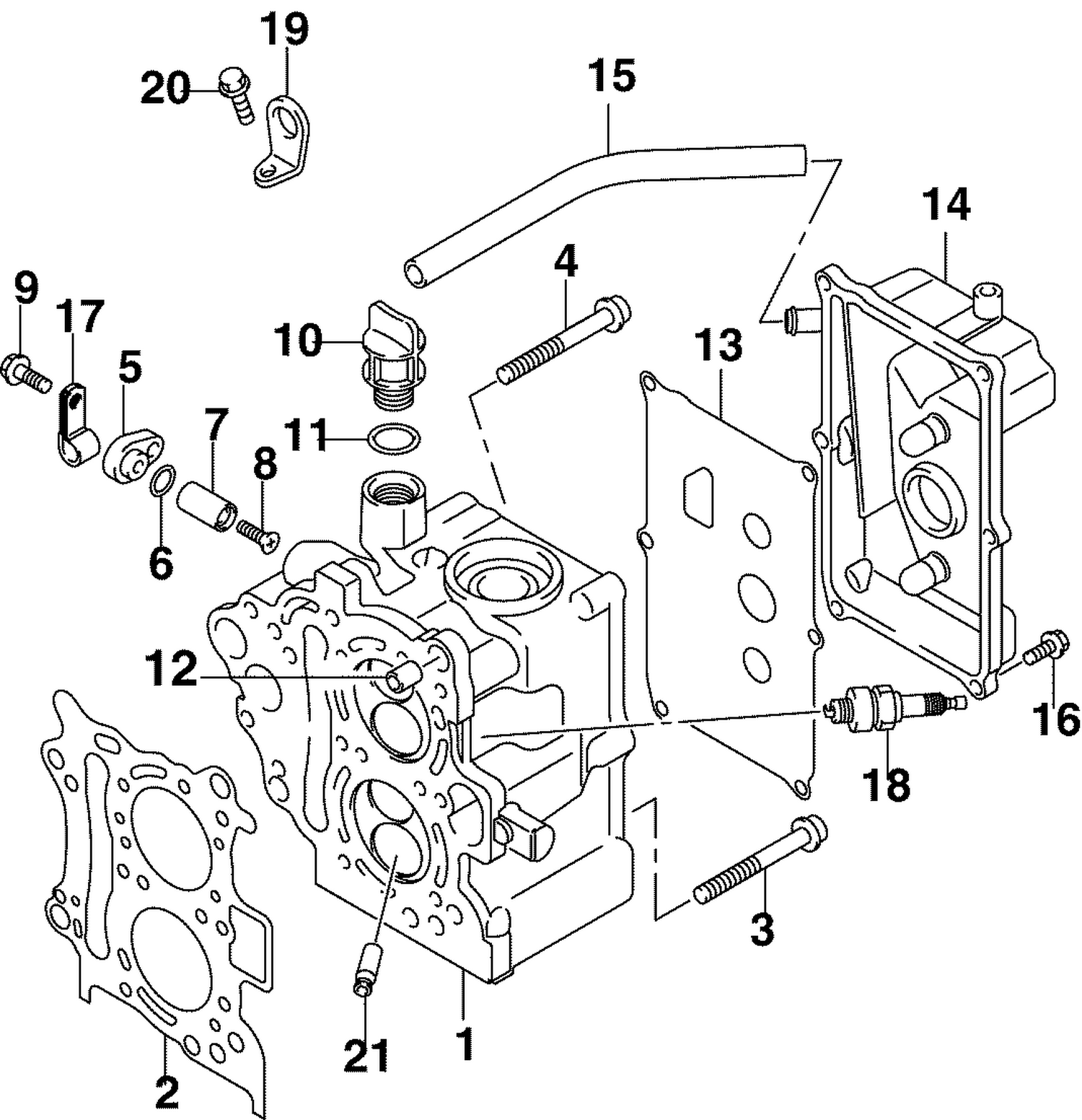

CYLINDER HEAD
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036746 | CULASSE |
| 2 | 5036169 | GASKET, CYLINDER HEAD |
| 3 | 5032765 | BOLT (8X65mm) |
| 4 | 5036147 | BOLT (8X65mm) |
| 5 | 5035796 | COUVERCLE, PROTECTION ANODE |
| 6 | 5036153 | O RING |
| 7 | 5035809 | ANODE PROTECTION |
| 8 | 5035793 | SCREW, PROTECTION ANODE |
| 10 | 5036174 | BOUCHON, REMPLISSEUR D’HUILE |
| 11 | 5036154 | JOINT TORIQUE, BOUCHON REMPLISSEUR D'HUILE |
| 13 | 5036170 | GASKET, CYLINDER HEAD COVER |
| 14 | 5036171 | COUVERCLE, CULASSE |
| 15 | 5035539 | FLEXIBLE, EAU (320mm) This part replaces 5036172. |
| 16 | 5036145 | BOLT (6X20mm) |
| 17 | 5032612 | CLAMP |
| 18 | 5033634 | BOUGIE (BKR6E) |
