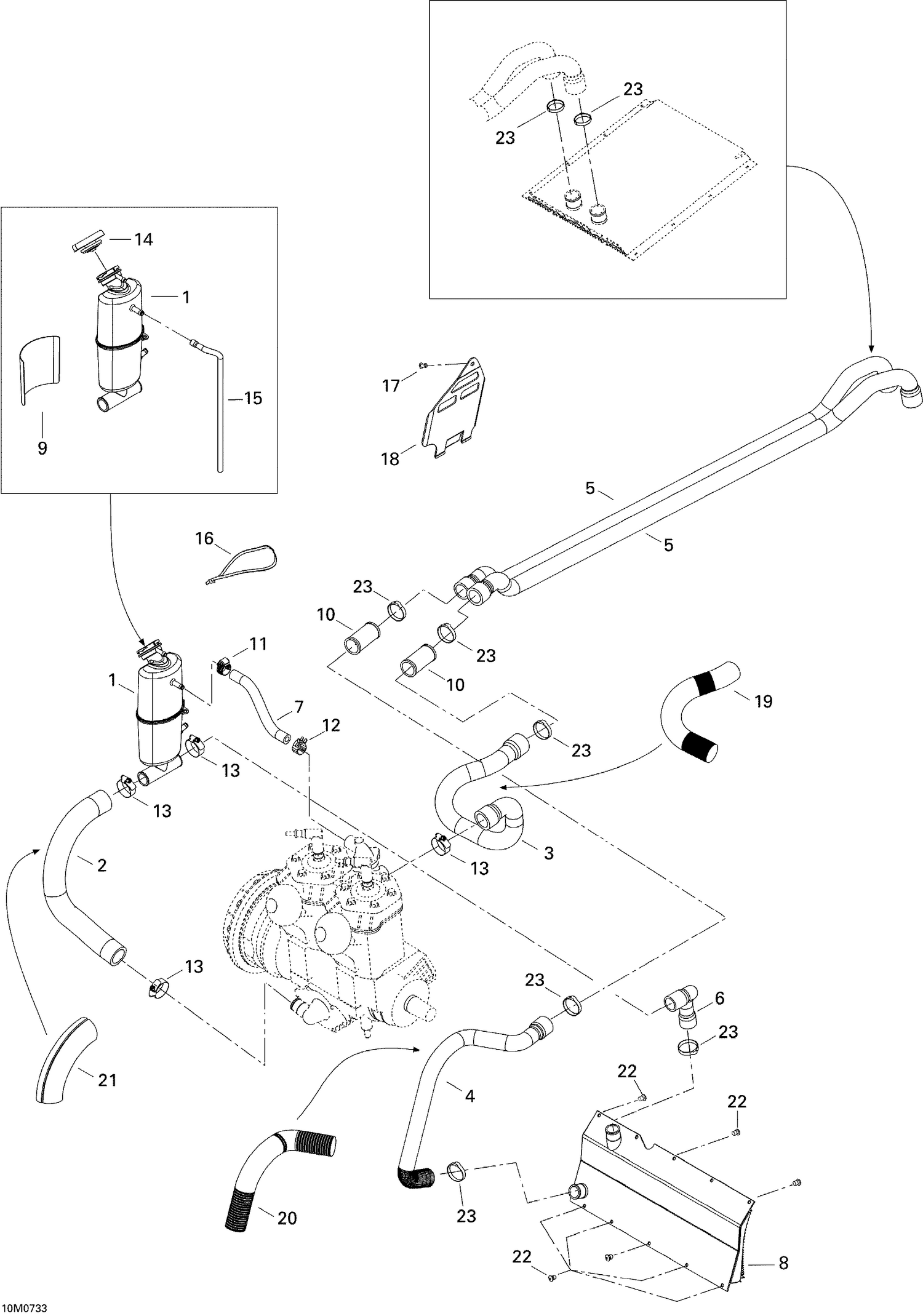

| Ref | Part Number | Description |
|---|
| 1 |
509000410 |
COOLANT TANK - Call your local BRP dealership |
| 2 |
509000135 |
ENGINE INLET HOSE - Call your local BRP dealership |
| 3 |
509000220 |
FRONT ENGINE HOSE OUTLET - Call your local BRP dealership |
| 4 |
509000222 |
FRONT RADIATOR HOSE INLET - Call your local BRP dealership |
| 5 |
509000223 |
REAR RADIATOR HOSE INLET - Call your local BRP dealership |
| 6 |
509000266 |
RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 7 |
509000093 |
Hose 8 mm |
| 8 |
509000391 |
Front Radiator |
| 9 |
509000190 |
REFECTIVE SHEET - Call your local BRP dealership |
| 10 |
509000224 |
Fitting |
| 11 |
293650170 |
Tridon Gear Clamp |
| 12 |
414655700 |
Spring Clamp |
| 13 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 14 |
509000187 |
Pressure Cap |
| 15 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 16 |
293750008 |
Tie Wrap 368 mm |
| 17 |
390909200 |
Avex Rivet |
| 18 |
509000257 |
DEFLECTOR - Call your local BRP dealership |
| 19 |
219704402 |
Tubing 25 MM 1000MM Long |
| 20 |
219704402 |
Tubing 25 MM 1000MM Long |
| 21 |
219704428 |
Tubing 35 MM 1000MM Long |
| 22 |
390909100 |
Avex Rivet |
