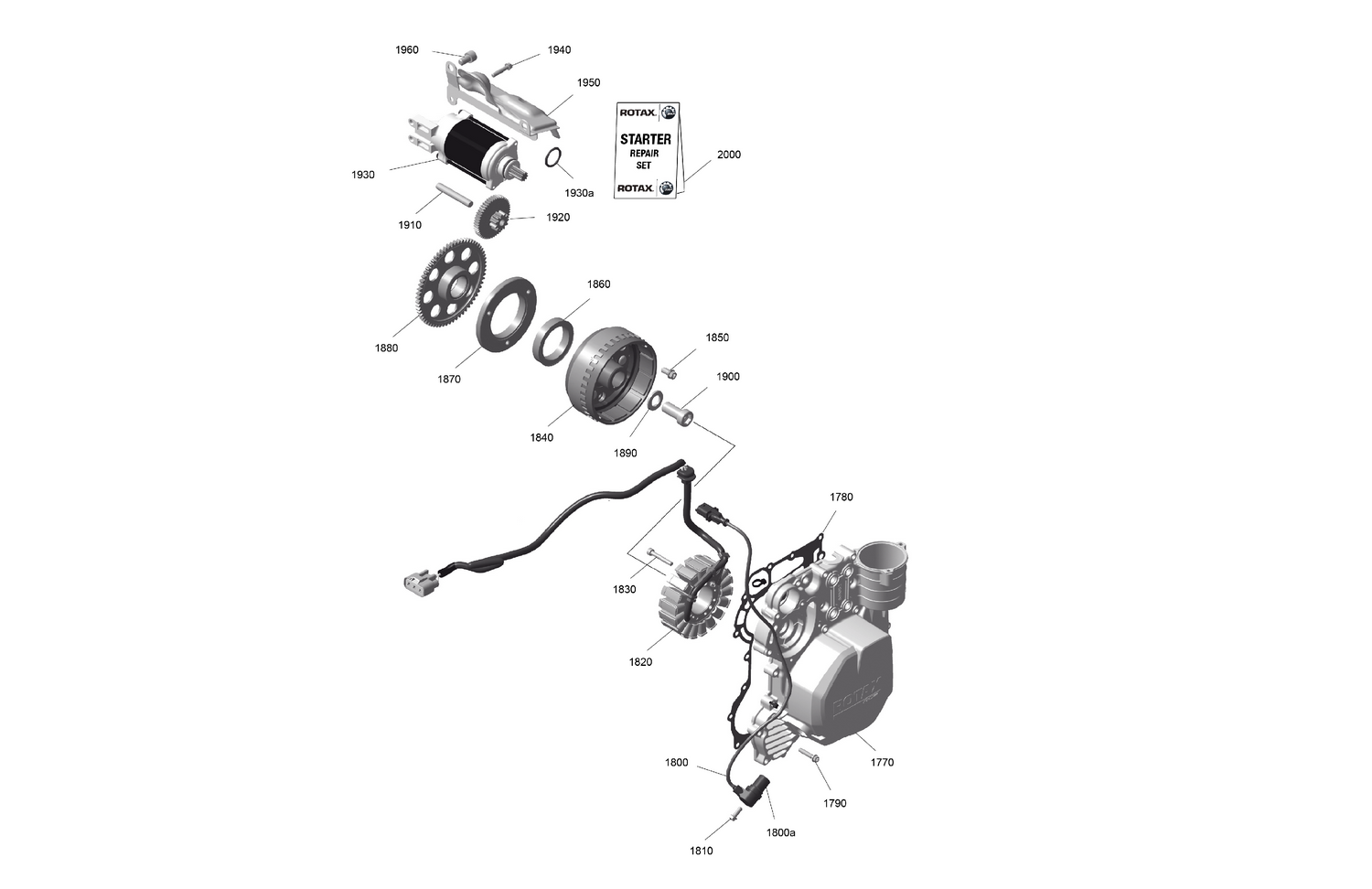

01- ROTAX - Magneto and Electric Starter
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1770 | 420911055 | Ignition Cover |
| 1780 | 420431640 | Gasket |
| 1790 | 420440647 | Torx Flange Screw M6 X 30 |
| 1800a | 420431580 | O-Ring |
| 1810 | 420440162 | Torx Flange Screw M6 X 16 |
| 1820 | 420685629 | Stator Plate |
| 1830 | 420241956 | Allen Screw M6 X 40 |
| 1840 | 420686196 | Flywheel Ass'y |
| 1850 | 420440854 | Torx Flange Screw M8 X 16 |
| 1860 | 420659113 | Sprag Clutch |
| 1870 | 420659263 | Sparg Clutch Housing |
| 1880 | 420434238 | Free Wheel Gear, 64 Teeth |
| 1890 | 420627270 | Shim |
| 1900 | 420241549 | Socket Head Screw M16 X 35 |
| 1910 | 420229475 | Needle Pin |
| 1920 | 420634741 | Starter Double Gear 11/49 T |
| 1930a | 420250145 | O-Ring |
| 1940 | 420440647 | Torx Flange Screw M6 X 30 |
| 1950 | 420975136 | Heat Shield |
| 1960 | 420841663 | Allen Screw M10 X 16 |
