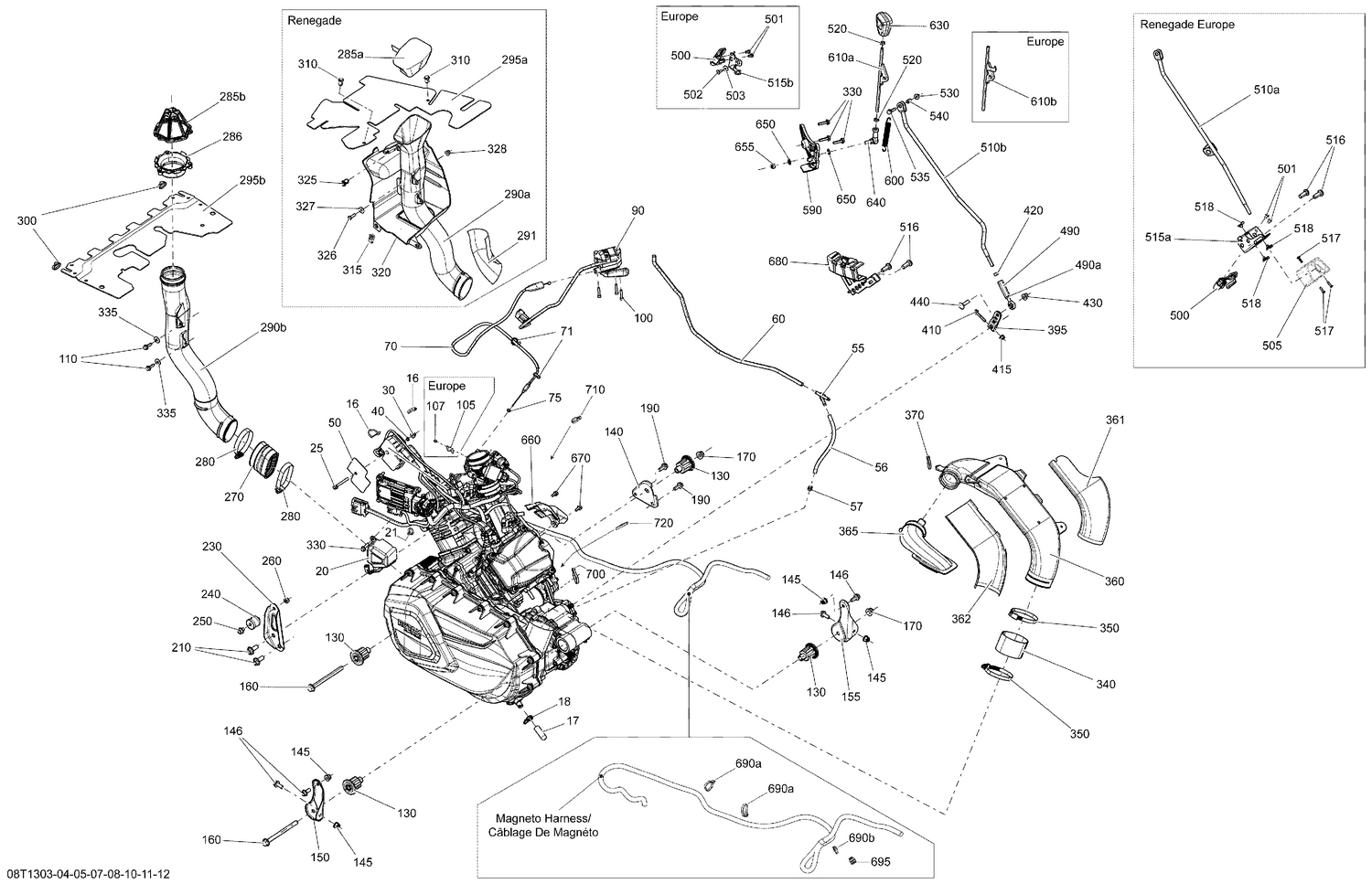

01- Engine And Engine Support
Parts (91)
| Ref | Part Number | Description |
|---|---|---|
| 16 | 414115200 | Tie-Rap 180 mm |
| 17 | 707001185 | Plug |
| 18 | 707800506 | Retainer Clip |
| 20 | 707000945 | Cover |
| 21 | 293750002 | Tie Wrap 142 mm |
| 25 | 207665044 | Hex. Flange Screw M6 X 50 |
| 30 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 40 | 234461608 | External Serrated Lock Washer 6 mm |
| 50 | 710000073 | Insulator Pad |
| 55 | 293710059 | Y-Fitting |
| 56 | 219704410 | Polyurethane Hose 10000Mm Long |
| 57 | 293650195 | Clamp, Oetiker |
| 60 | 219704410 | Polyurethane Hose 10000Mm Long |
| 70 | 707000955 | Throttle Cable |
| 71 | 414115200 | Tie-Rap 180 mm |
| 75 | 707000434 | Cable Guide |
| 90 | 707000595 | Throttle Handle |
| 100 | 205052588 | Socket Head Screw M5 X 25 |
| 110 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 130 | 707001169 | Vibration Damper This part replaces 707000426. |
| 140 | 707003319 | Engine Support This part replaces 707000761. |
| 145 | 233281416 | Hex. Elastic Flange Nut M8 |
| 146 | 207682046 | Hex. Flange Screw M8 X 20 |
| 150 | 707003325 | LH Rear Engine Support This part replaces 707001193. |
| 155 | 707001194 | RH Rear Engine Bracket |
| 160 | 230602546 | Hex. Flange Screw M10 X 125 |
| 170 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 190 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 210 | 207602544 | Hex. Flange Screw M10 X 25 |
| 230 | 707001256 | Upper Engine Bracket |
| 240 | 707000949 | Rubber Isolator |
| 250 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 260 | 232581414 | Hex. Elastic Stop Nut M8 |
| 270 | 707002585 | Flexibale Adaptor This part replaces 707001043. |
| 280 | 293650091 | Norma Clamp |
| 285a | XXX | Not Available As Spare Parts |
| 285b | XXX | Not Available As Spare Parts |
| 286 | XXX | Not Available As Spare Parts |
| 290a | 707002073 | CVT Air Inlet This part replaces 707000790. |
| 290b | XXX | Not Available As Spare Parts |
| 291 | 707001654 | Heat Shield This part replaces 707001096. |
| 295a | 707001041 | Upper Water Deflector |
| 295b | XXX | Not Available As Spare Parts |
| 300 | XXX | Not Available As Spare Parts |
| 310 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 315 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 320 | 707000928 | Water Deflector |
| 325 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 326 | 207162044 | Hex. Screw M6 X 20 |
| 327 | 234062600 | Flat Washer M6, Stainless |
| 328 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 330 | 207562544 | Hex. Flange Screw M6 X 25 |
| 335 | 234062600 | Flat Washer M6, Stainless |
| 340 | 707000789 | Adaptor |
| 350 | 293650118 | Norma Gear Clamp |
| 360 | 706600016 | AIR OUTLET - Call your local BRP dealership |
| 361 | 707001217 | HEAT SHIELD - Call your local BRP dealership |
| 362 | 707001218 | HEAT SHIELD - Call your local BRP dealership |
| 365 | 706600018 | AIR OUTLET - Call your local BRP dealership |
| 370 | 414115200 | Tie-Rap 180 mm |
| 395 | 707000911 | Lever |
| 410 | 207663544 | Hex. Flange Screw M6 X 35 |
| 415 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 420 | 250100144 | Hex. Nut M8, LH Threads |
| 430 | 233281414 | Hex. Flange Elastic Nut M8 |
| 440 | 207783044 | Carriage Bolt M8 X 30 |
| 490a | 232180600 | Hex. Jam Nut M8 |
| 502 | XXX | Not Available As Spare Parts |
| 503 | XXX | Not Available As Spare Parts |
| 515b | XXX | Not Available As Spare Parts |
| 516 | 205402556 | Screw Socket M10 X 25 This part replaces 205402596. |
| 520 | 232180600 | Hex. Jam Nut M8 |
| 530 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 535 | 207662544 | Hex. Flange Screw M6 X 25 |
| 540 | 293900019 | Bushing |
| 590 | 707003054 | Lever Support This part replaces 707000971. |
| 600 | 707000577 | Spring |
| 610a | 707000840 | Shift Arm |
| 610b | XXX | Not Available As Spare Parts |
| 630 | 707003211 | Lever Trim This part replaces 707000965. |
| 640 | 707001959 | RH Ball Joint This part replaces 707000546. |
| 650 | 506151252 | Washer |
| 655 | 232581414 | Hex. Elastic Stop Nut M8 |
| 660 | 707000410 | Cover OPS |
| 670 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 680 | 707003053 | Cable Support This part replaces 707000992. |
| 690a | 414115200 | Tie-Rap 180 mm |
| 690b | 414115200 | Tie-Rap 180 mm |
| 695 | 710002896 | Tie-Rap Clip |
| 700 | 414115200 | Tie-Rap 180 mm |
| 710 | 414115200 | Tie-Rap 180 mm |
